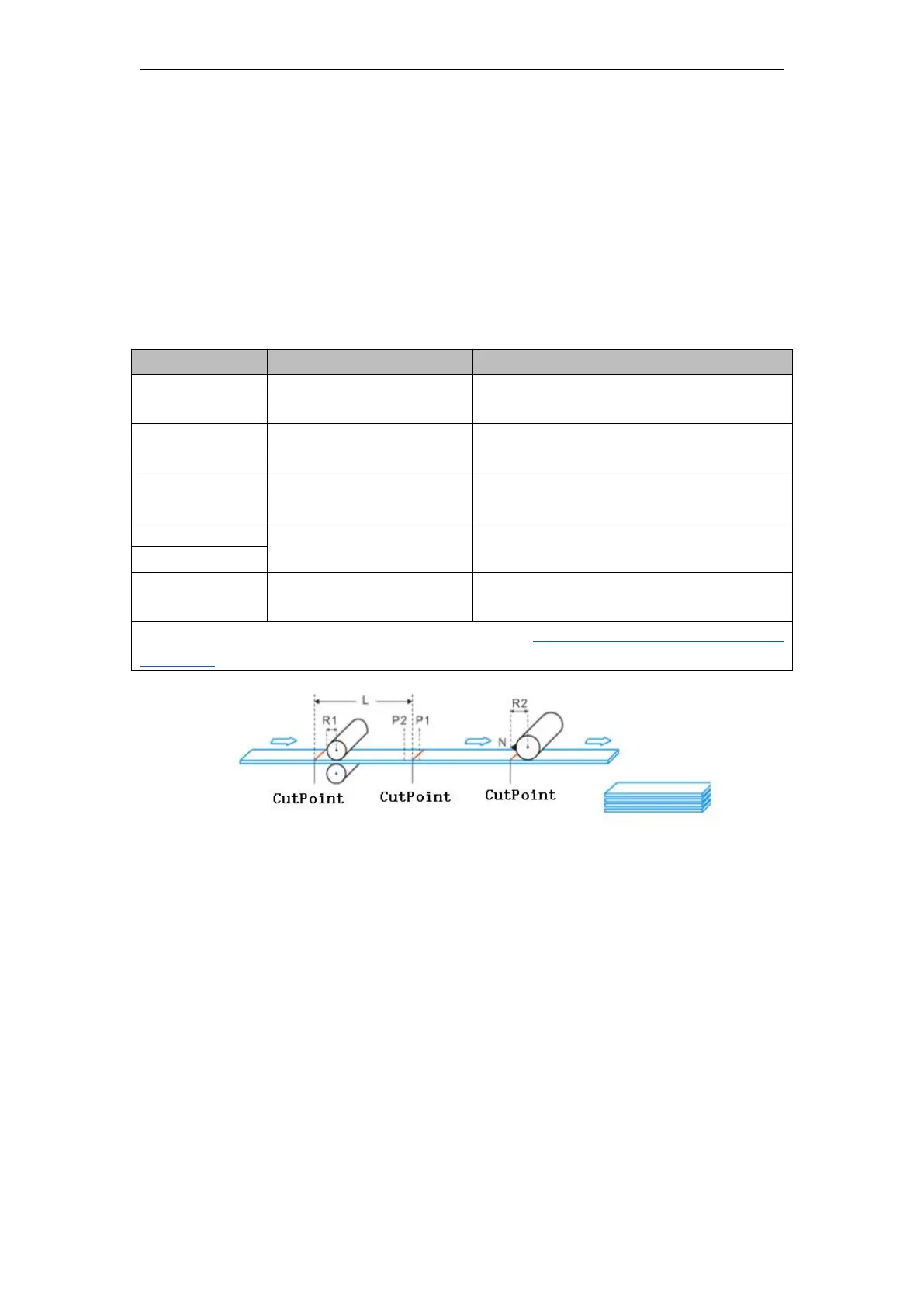

11.5.6 Peeling process parameters
FIG parameters
The actual meaning
Command name
L
Setting the cut length
(unit: unit (means))
Cut_Length (cutting length)
R1
Material feed roller
radius (unit: unit (means))
FeedAxisRadius (feed shaft radius)
R2
Peeling axis radius;
Cutter_Cir (cutter perimeter) = 2 * R2 *
3.1415
P1
Sync area
Sync_Angle (synchronous zone)
P2
N
Bit number peeling axis
RotaryAxisKnifeNum
Special Note: Please refer to the name of instruction11.5.9 NS_MC_RotaryCutIn (peeling
instruction)
