11.5 Multiaxial instruction
MasterValueSource Description:
When MasterValueSource = 0, the following spindle axis from a position command.
When MasterValueSource = 1, follows from the actual position of the spindle axis, the actual
position of a number of pulses detected by the hardware to the axis of the opening decision.

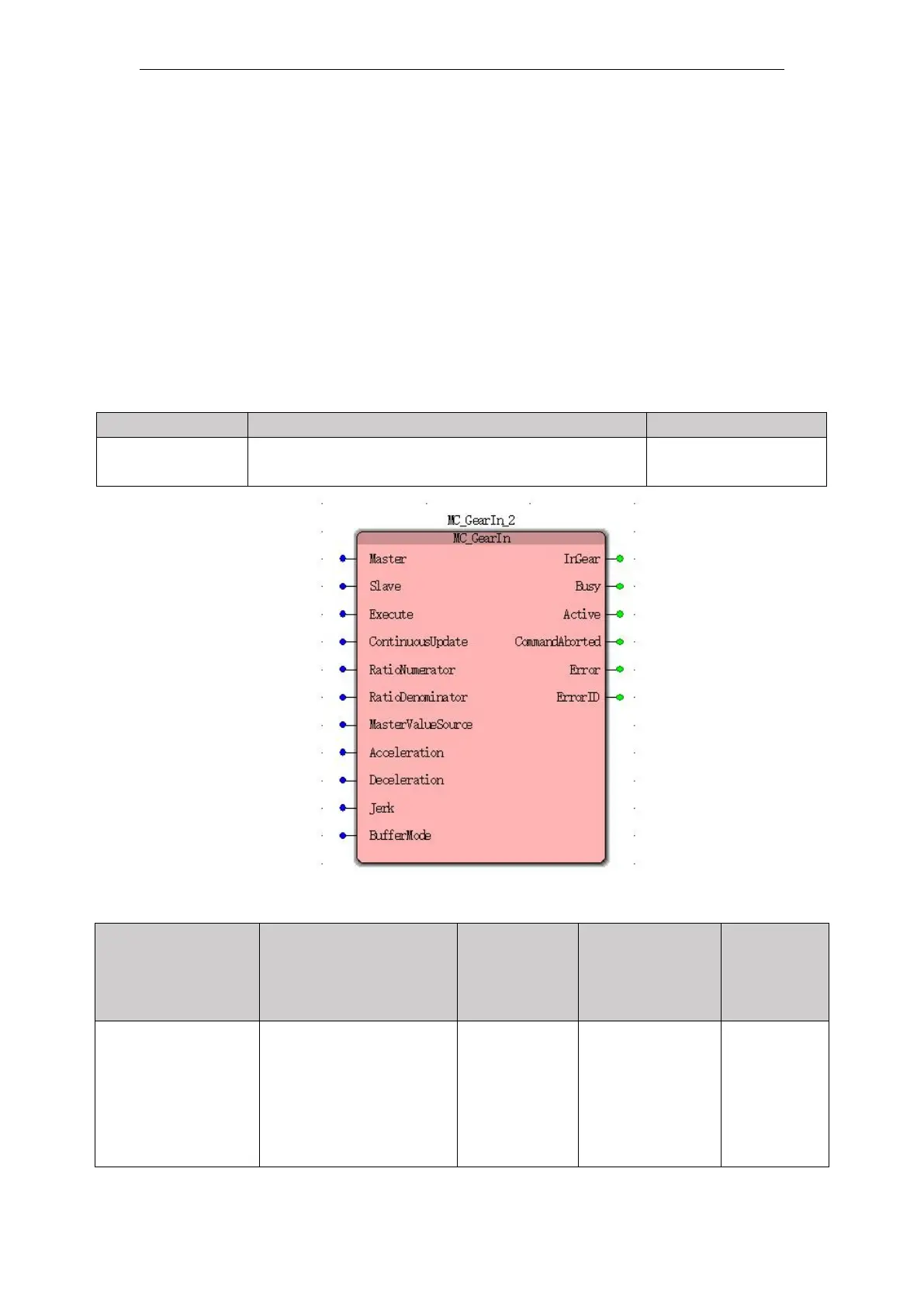

11.5.1 MC_GearIn (electronic gear coupling instructions)
FB / FC
Explanation
Applicable model
FB
This relationship established instructions for
electronic gear shaft between two
VEC-VA-MP-005-MA
 Input parameters
Name
Features
Type of data
Predetermin
ed area
(Default
value)
The
timing of the
entry into
force
Master
(Spindle)
Setting instruction to
be controlled spindle
USINT
Analog /
Pulse:
0-4 (real axis)
5 to 11
(imaginary axis)
CANopen
Exexcut
e from
FALSE to
TRUE
