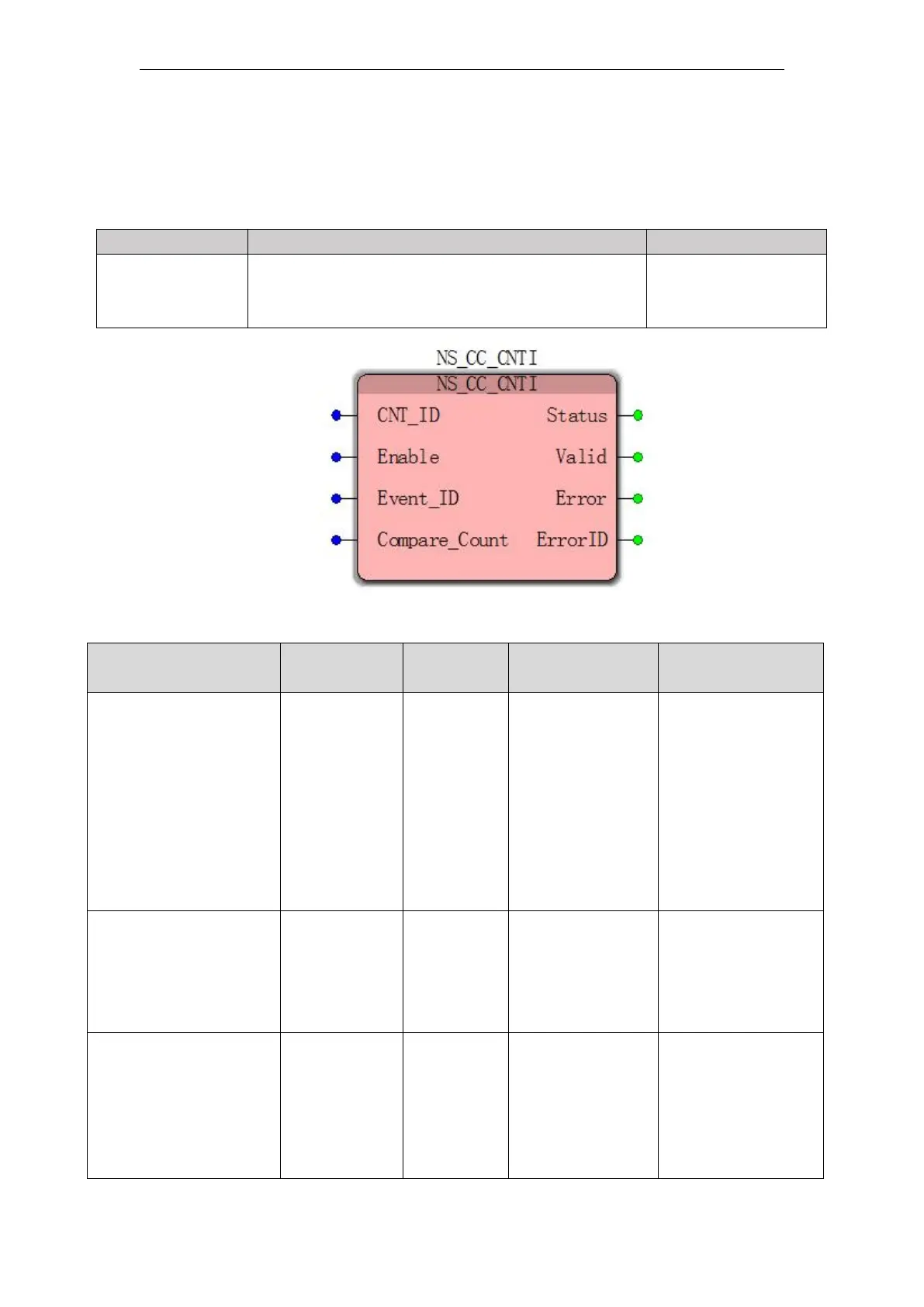

11.6.7 NS_CC_CNTI (high-speed counter interrupt
instruction)
FB / FC
Explanation
Applicable model
FB
This instruction is used to generate an interrupt when
the pulse number reaches the set current value of the
high-speed counter, interrupt routine is entered
VEC-VA-MP-005-MA
 Input parameters
name
Features
type of data
Setting range
(Non-default)
The timing of the
entry into force
CNT_ID
(Associated counter
number)
High count
associated with
the specified
number, which
is automatically
associated with
the counter
number is equal
to
WORD
0 to 1
(Indispensable)
Execute from
FALSE to TRUE
Enable (execute bit)
When the
Enable FALSE
to TRUE, the
instruction is
executed.
BOOL
TRUE or
FALSE
Execute from
FALSE to TRUE
Event_ID
(interruption)
Set interrupt
event number
(0-5) is
consistent with
the interrupt
routine event
WORD
0-5
Execute from
FALSE to TRUE
