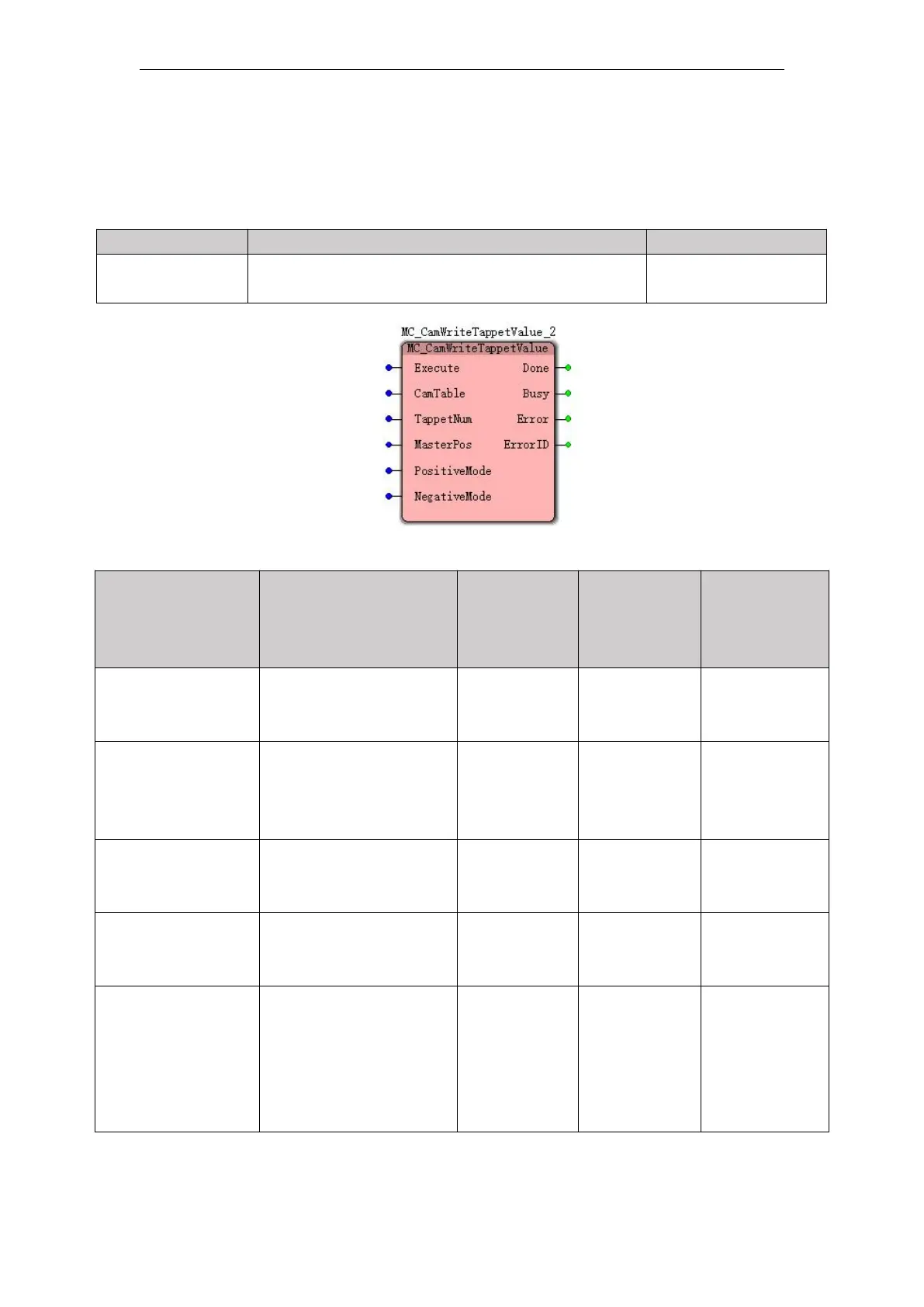

11.5.19 MC_WriteTappetValue (edit point information tappet
instruction)
FB / FC
Explanation
Applicable model
FB
This command is used to write, add, delete
information tappet point instruction
VEC-VA-MP-005-
MA
 Input parameters
name
Features
type of
data
Predeter
mined area
(Default
value)
The timing
of the entry
into force
Execute
(Execute bit)
When the Execute
FALSE to TRUE, the
instruction execution starts
BOOL
TRUE or
FALSE
(FALSE)
CamTable
(Electronic cam No.)
Establishing a main
cam for setting table based
on the relationship of the
cam shaft from
USINT
0 to 31
Exexcute
from FALSE to
TRUE
TappetNum
(Tappet point number)
Read tappet point
number
UINT
(Non-default)
Exexcute
from FALSE to
TRUE
MasterPos
(Spindle position)
Tappet spindle
position set point
LREAL
Exexcute
from FALSE to
TRUE
PositiveMode
(Forward through
mode)
Forward tappet axis
point mode setting
0:Close
1: Set
2: Reset
3: Inversion
INT
0-3
(0)
Exexcute
from FALSE to
TRUE
