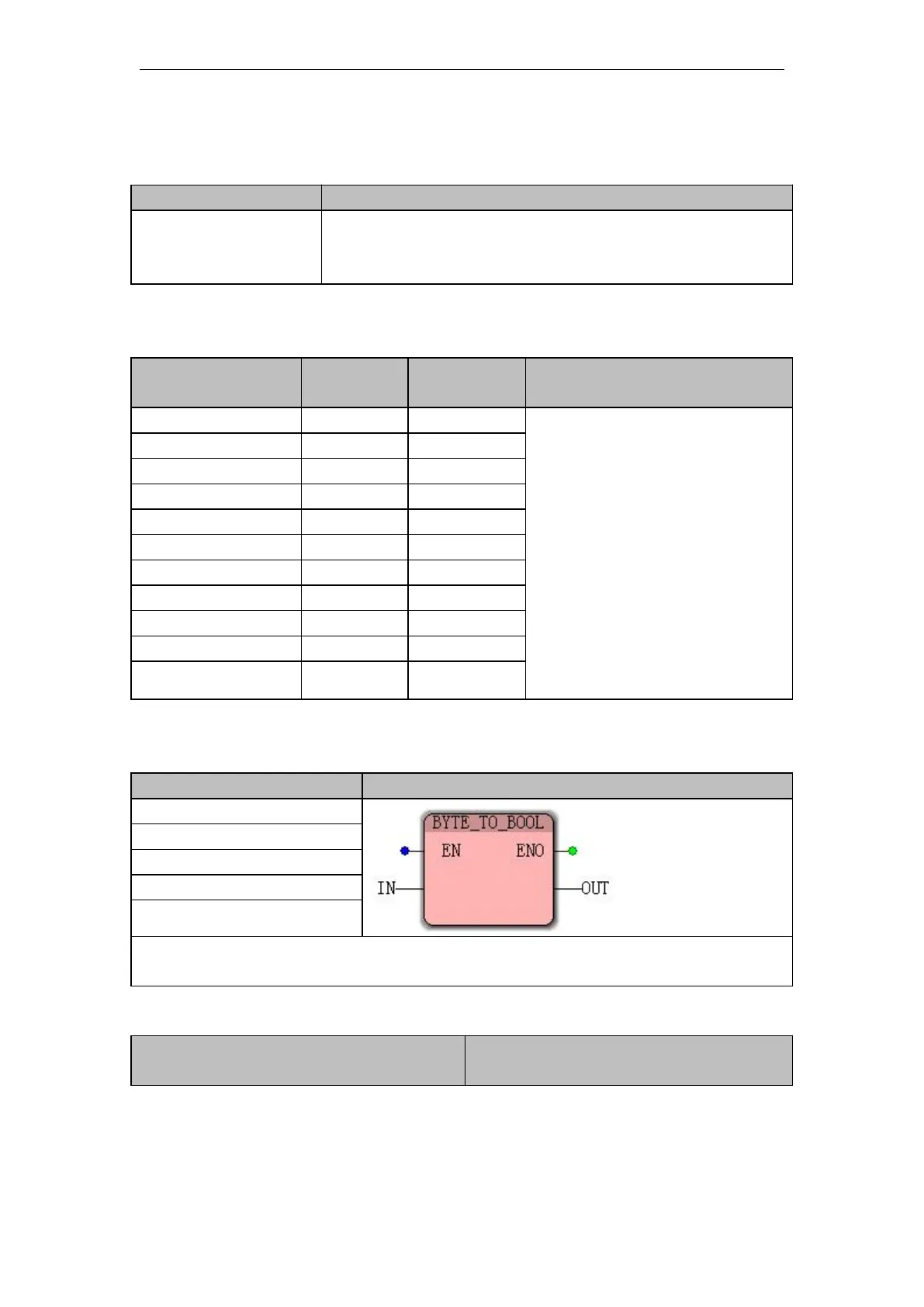

10.3.6 Conversion of BYTE type data
Type conversion
FU
Features
BYTE type data
conversion
BYTE type data conversion has 11 instructions, which can
convert BYTE type data into BOOL, WORD, DWORD, SINT, INT, DINT,
USINT, UINT, UDINT, REAL and LREAL .
BYTE type data conversion instruction
instruction
input
value
output
value
description
BYTE_TO_BOOL
BYTE
BOOL
The input value ranges from
0 to
255; the
output is
BOOL
type
:
only
when the input is
0
, the output
is
FALSE, and in
other cases, the
output is
TRUE;
The output
is
SINT
type
:
input
0~127
corresponds
to output
0~127
,
input
128~255
corresponds to
output
-128~-1; when
output
is
WORD, DWORDA
nd other types, the
output is equal to input.
BYTE _O_WORD
BYTE
WORD
BYTE_TO_DWORD
BYTE
DWORD
BYTE_TO_SINT
BYTE
SINT
BYTE_TO_INT
BYTE
INT
BYTE_TO_DINT
BYTE
DINT
BYTE_TO_USINT
BYTE
USINT
BYTE_TO_UINT
BYTE
UINT
BYTE_TO_UDINT
BYTE
UDINT
BYTE_TO_REAL
BYTE
REAL
BYTE_TO_LREAL
BYTE
LREAL
usage (take BYTE_TO_BOOL as an example)
IL programming language
LD, FBD programming language
LD IN
BYTE_TO_BOOL
ST OUT
ST programming language
OUT:=BYTE_TO_BOOL
(
IN
)
Note
: IL, ST
language programming needs to insert variables
IN
and
OUT
or use constants in
the current
POU
variable worksheet
Funtion and Action examples
Requirements : 16 # 0A ( 16 decimal number)
turn BOOL
description
