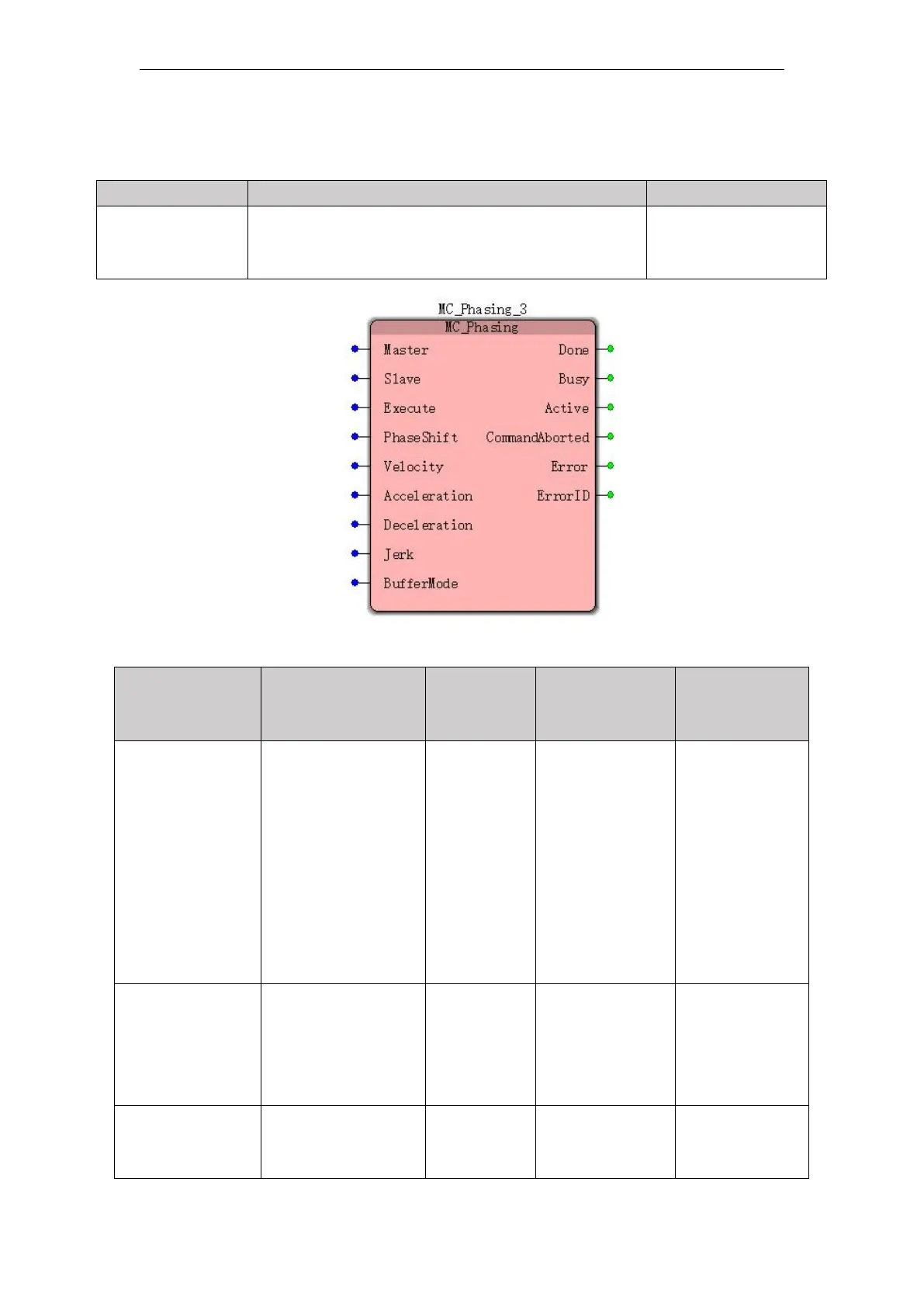

11.4.17 MC_Phasing (shift spindle command)
FB / FC
Explanation
Applicable model
FB
This instruction is used to position the additional
main section shift does not affect the movement of the
spindle
VEC-VA-MP-005-
MA
 Input parameters
name
Features
type of
data
Range
setting (default
value)
The timing
of the entry into
force
Master
(spindle)
Setting
instruction to be
controlled spindle
USINT
Analog /
Pulse:
0-4 (real axis)
5 to 11
(imaginary axis)
CANopen
mode: 0-15 (real
axis / imaginary
axis)
(0)
Exexcute
from FALSE to
TRUE
Slave
(Slave axis)
Setting
instruction from the
shaft to be controlled
USINT
0-4 the real
axis
5 to 11
virtual axis
(0)
Exexcute
from FALSE to
TRUE
Execute
(Execute bit)
When the
Execute FALSE to
TRUE, the instruction
BOOL
TRUE or
FALSE
Exexcute
from FALSE to
TRUE
