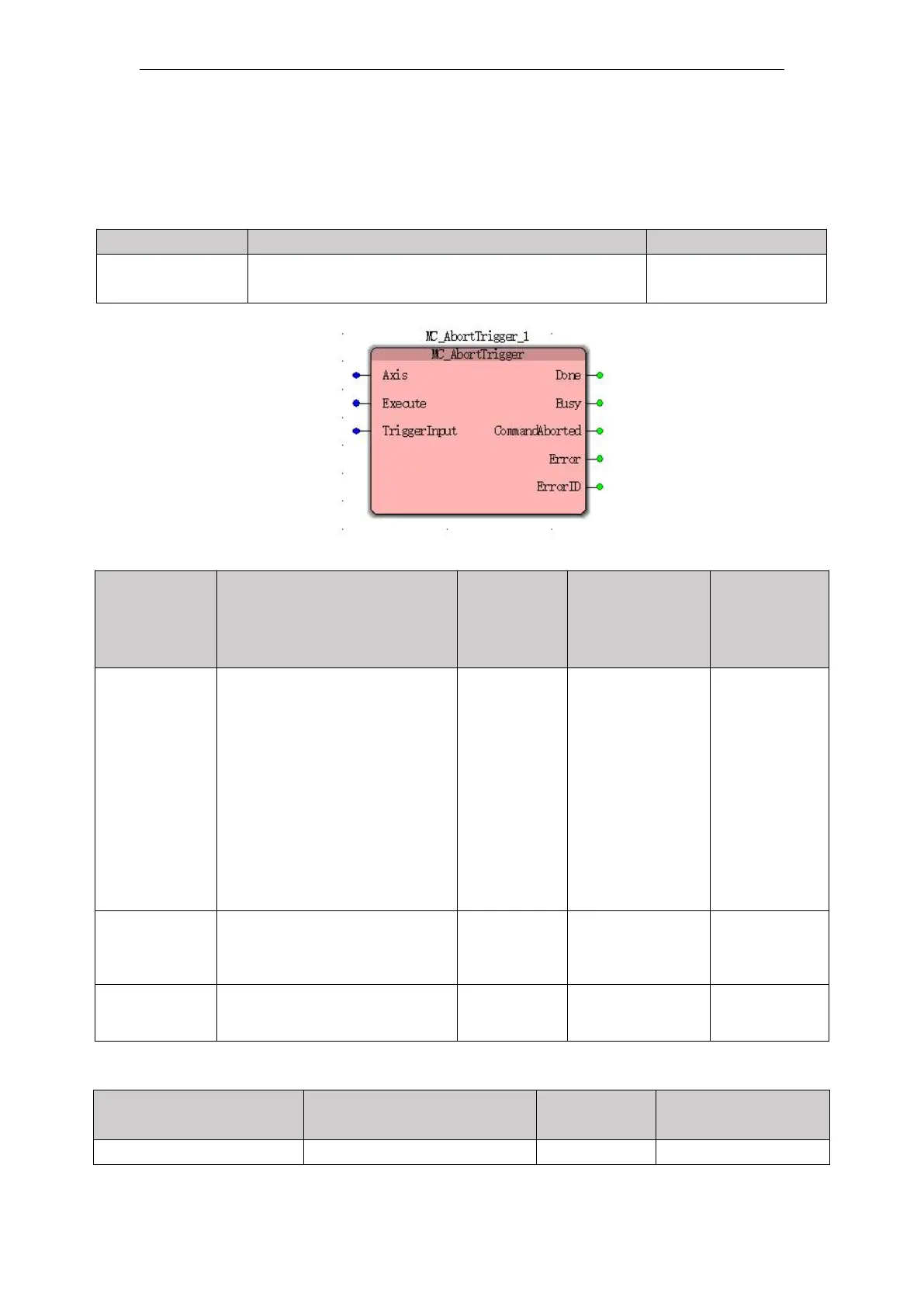

11.4.19 MC_AbortTrigger (position capture interrupt
instruction)
FB / FC
Explanation
Applicable model
FB
This instruction is used to interrupt the position of
the capture shaft
VEC-VA-MP-005-
MA
 Input parameters
name
Features
type of
data
Predetermin
ed area
(Default
value)
The
timing of the
entry into
force
Axis
(Axis No.)
The value is set to the same
value MC_TouchProbe Axis
command. Directed shaft for
counting numbers need to be
interrupted
USINT
Analog /
Pulse:
0-4 (real axis)
5 to 11
(imaginary axis)
CANopen
mode: 0-15 (real
axis / imaginary
axis)
(0)
Execute
from FALSE to
TRUE
Execute
(Execute
bit)
When the Execute from
FALSE to TRUE, the instruction
execution starts.
BOOL
TRUE or
FALSE
-
Triggerinp
ut
Retention
-
-
-

Output parameters
name
Features
type of
data
Output range
Done
The output parameter to
BOOL
TRUE or FALSE
