VA Motion Controller Programming Manual
427
11.5.5 peeling function of the system configuration
An essential part of functions including peeling knife roll shaft and the axis, detecting
element, and a motor control unit. Other

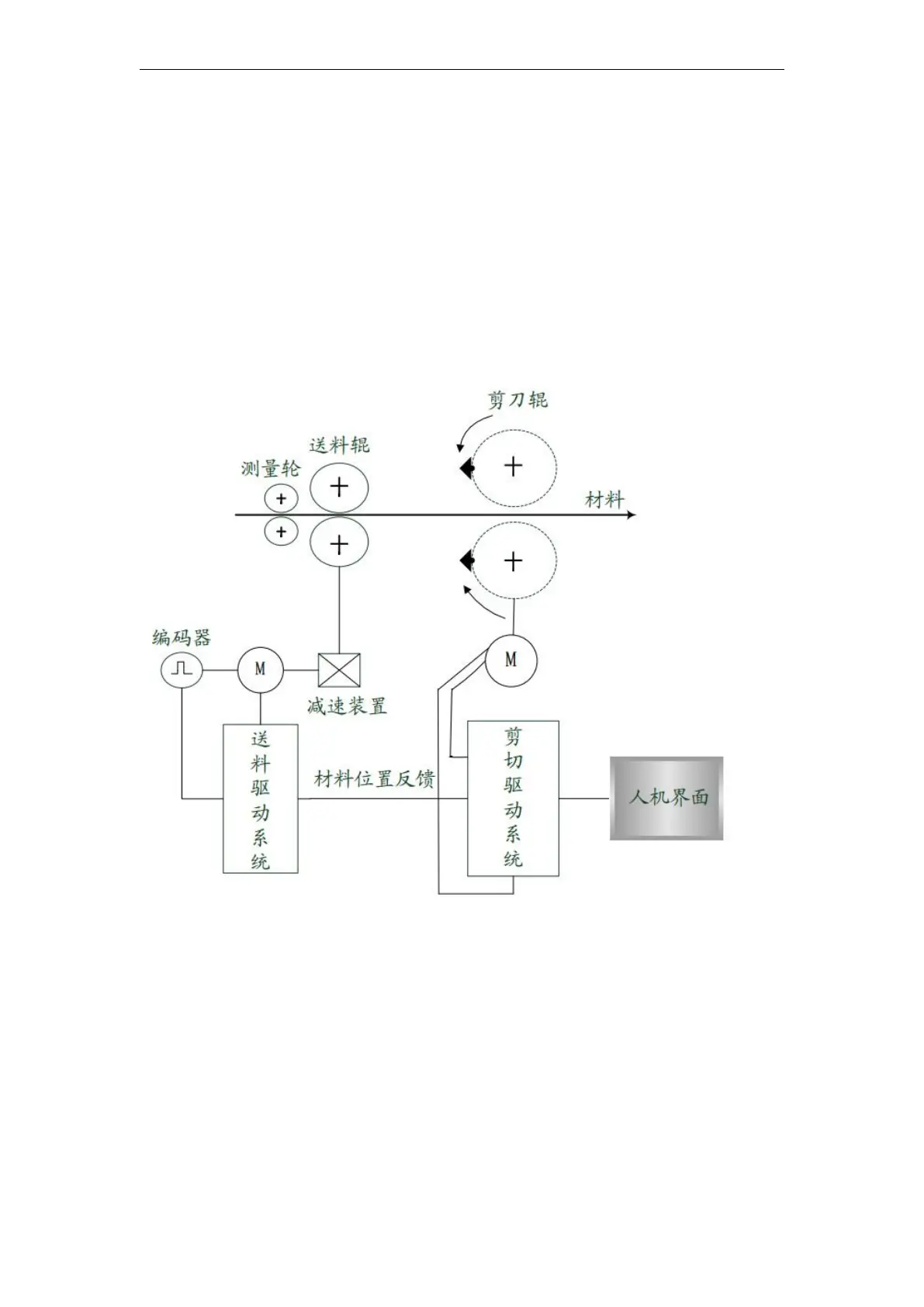

Depending on the processed products you may also need color. As shown, each blade roll
rotation of the complete system configuration in FIG 11.5.9 first shearing, measuring the length
measuring roll material, according to pre-designed control unit controlling the movement of the
knife roller cam curve, so that blade into engagement with the material by the length of the
material it is exactly desired length, thus completing precise cut to length.
