VA Motion Controller Programming Manual
70
Ⅶ Works to Create and Configure
7 .1 Creating projects
1
) In this section we provide step-by-step instructions for developing, editing, and running a
ladder (
LD
) sample program using
MULTIPROG
software . The development of the program
is divided into several stages.
Make use project wizard will guide you through creating new projects, where the user must
define the name and path, programming languages, as well as the use of project
PLC
type.
(
1
) Click " File " " New Project " ;
(
2

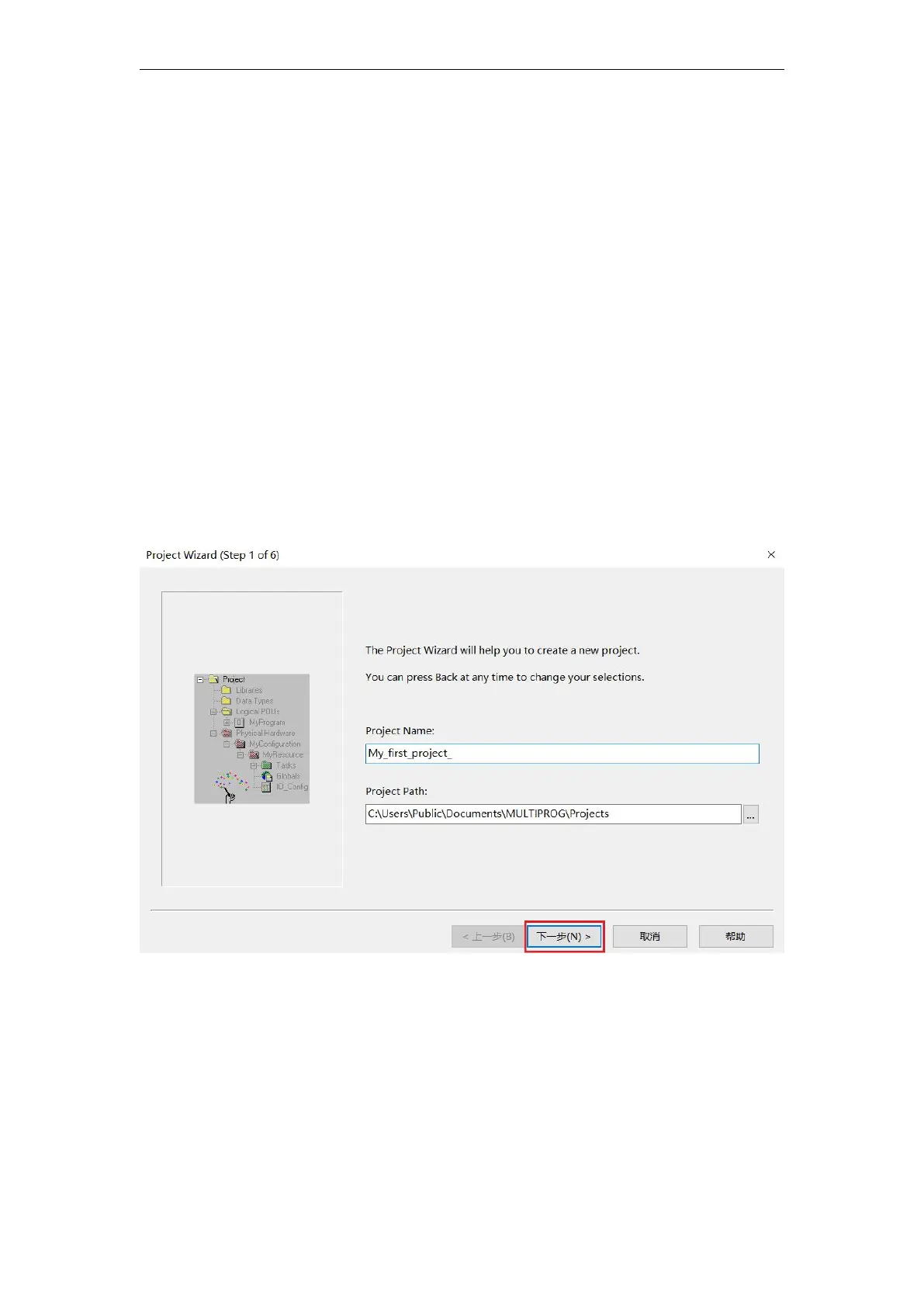

) Enter "
My_first_Project
" in the "Project Name" box of the wizard window , as
shownure
6-1
; according to the project naming rules, the project name and path must not
contaiNSpaces or special characters, "Project Path" input The box indicates the path saved by the
project. In the initial state, the default path is set by the user. After completion, click the“下一步”
button.
*
Note : Special characters cannot be included in the project name and path, otherwise the
project cannot be created successfully.
(
3
) The second step of the project wizard dialog box is shown in the figure. Name the
first
POU
"
Main
", select "Ladder (
LD
)" for the programming language, and click "Next"
