VA Motion Controller Programming Manual
71
(
4

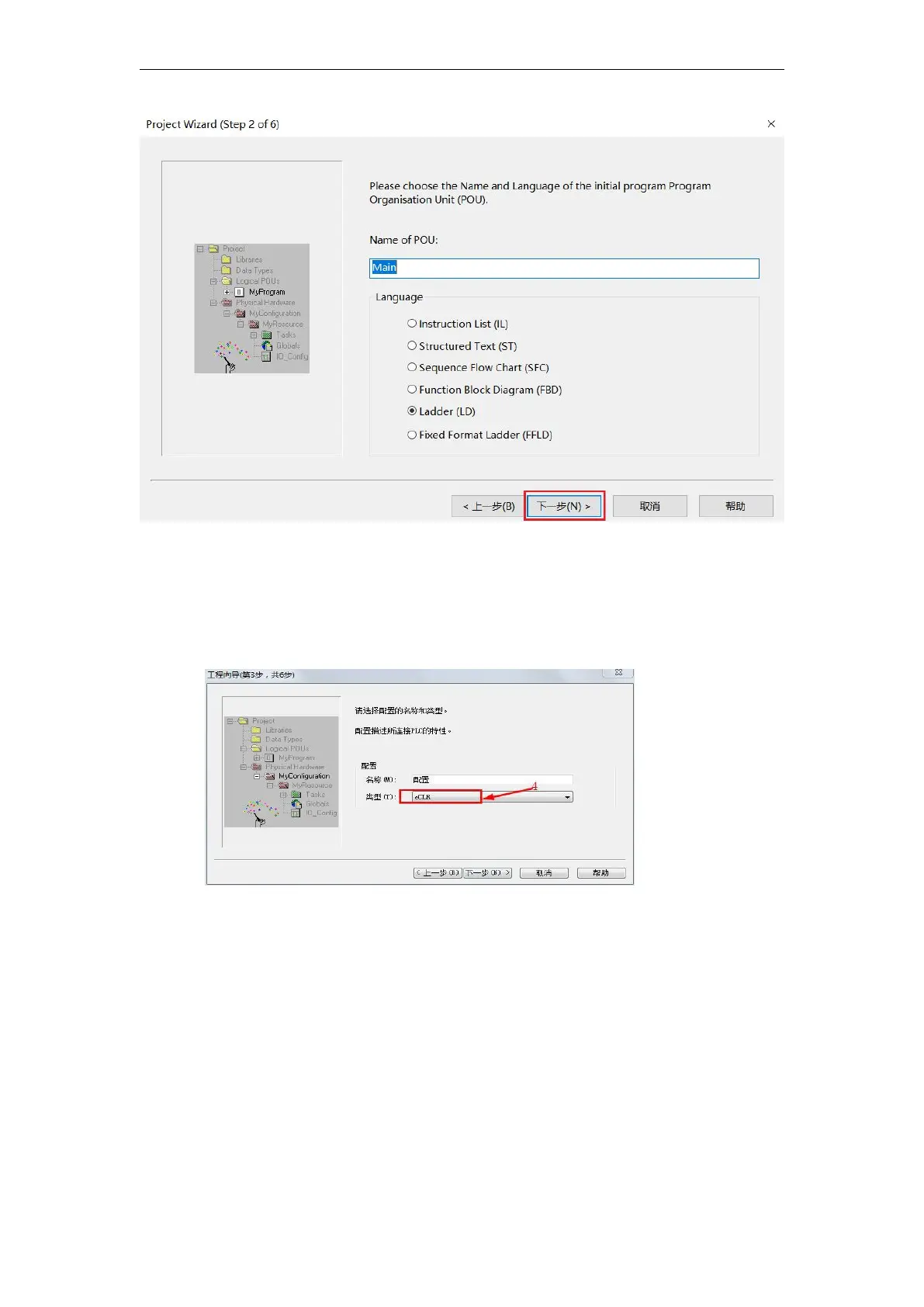

) The third step of the project wizard is to determine the name and type of the
configuration. The dialog box is shown in the figure. Fill in the name of the configuration in the
"Name" input box, here keep the default "Configuration". In the Type list box, select the
PLC
type
as
eCLR
and click Next. (Note! The software selects "
eCLR
" by default , so when you create a new
project, it automatically jumps to the fourth step of the next project wizard)
( 5 ) The fourth step of the project wizard is to select the“ resources ”to be used . The dialog
box is as shown in the figure. "Name" to keep the default "resource ( Resource ) ", list box, select
the "Type" " ARM_LE_GCC3 " (real PLC ), (if it
is using MULTIPROG owNSimulation PLC simulation , select " eCLR_Simulation ", click " Next
step" continues. )
