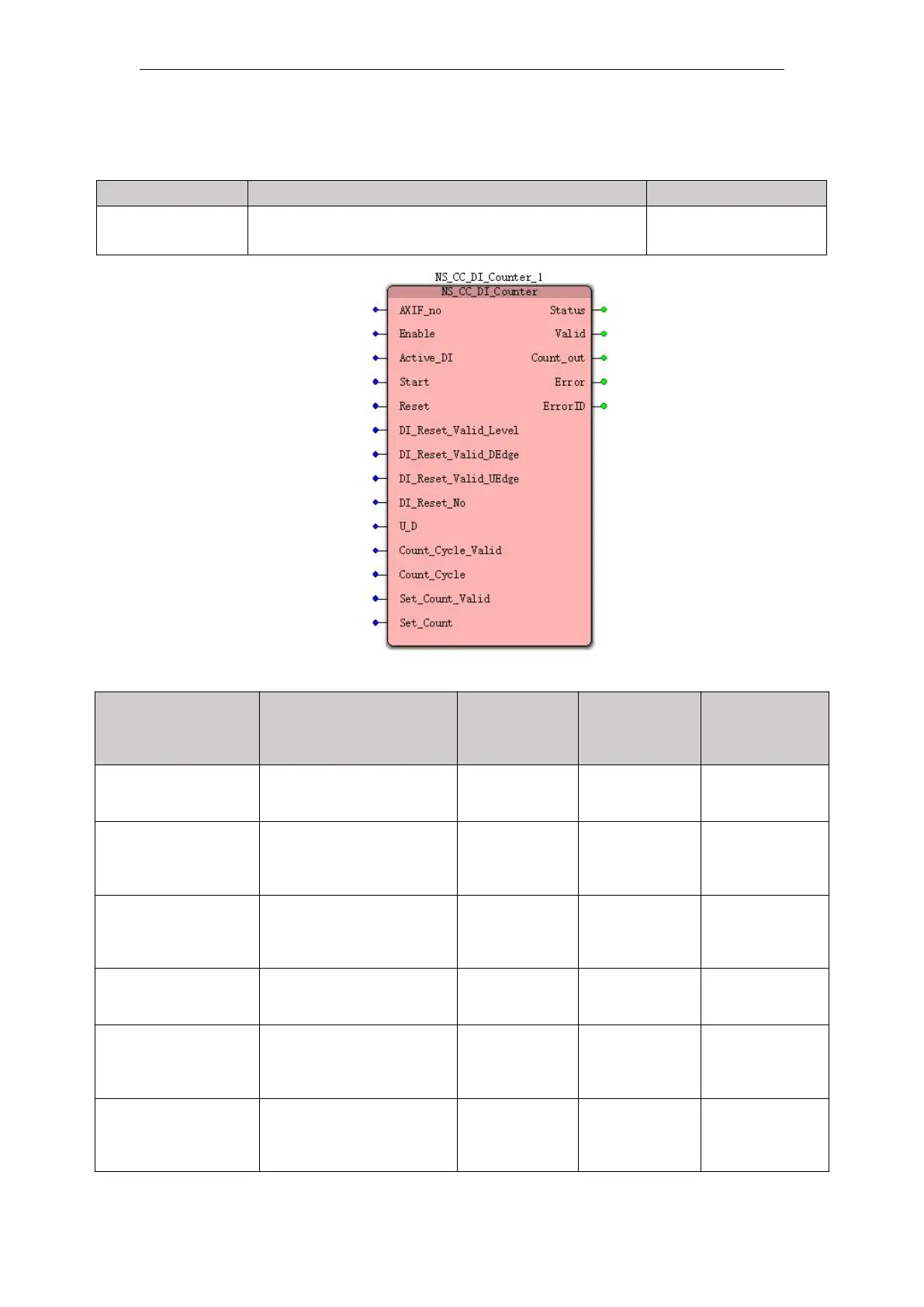

11.6.9 NS_CC_DI_Counter (DI-speed count instruction)
FB / FC
Explanation
Applicable model
FB
This instruction for counting high-speed pulse port
DI
VEC-VA-MP-005-MA
 Input parameters
name
Features
type of data
Predetermined
area
(Default value)
The timing
of the entry
into force
AXIF_no
(Count axis number)
Set number counter shaft
WORD
0-6
Enbale is TRUE
Enbale
(Execute bit)
when Enable by FALSE
Changes toTRUE When
the instruction is executed.
BOOL
TRUE or
FALSE
Active_DI
(DI input channel
number)
Set high-speed counting
port DI
WORD
0 ~ 15
Start
(Start bit)
When Start is TRUE, DI
start high-speed counter
BOOL
TRUE or
FALSE
Reset
(Clear bit)
When Reset is TRUE,
clears the counter current
value
BOOL
TRUE or
FALSE
DI_Reset_Valid_
Level
(External DI cleared
When DI_Reset_Valid_
Level is TRUE, DI cleared
level Clears
BOOL
TRUE or
FALSE
