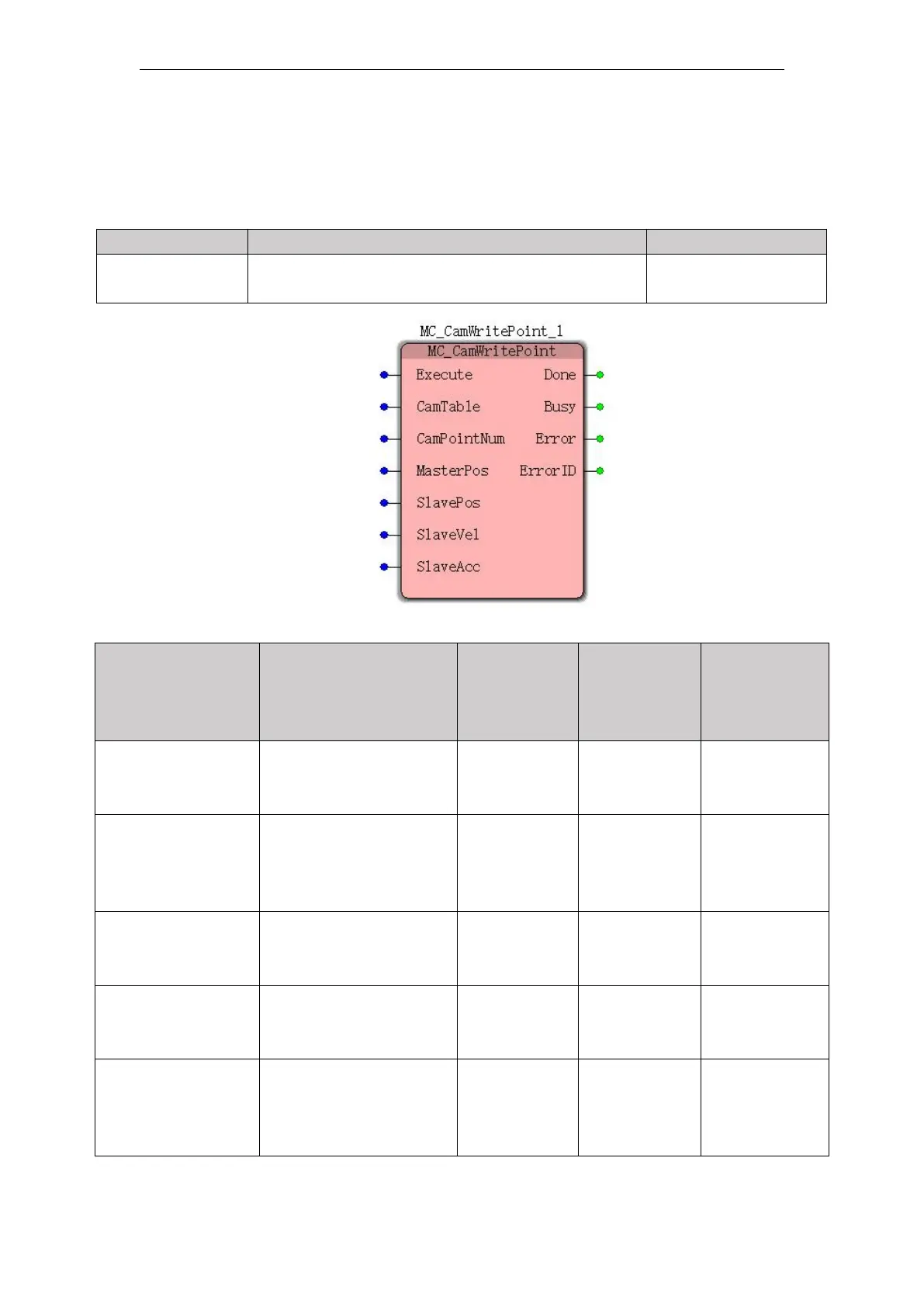

11.5.14 MC_CamWritePoint (cam point information write
command)
FB / FC
Explanation
Applicable model
FB
This instruction is used to write the cam point
information
VEC-VA-MP-005-
MA
 Input parameters
name
Features
type of
data
Predeter
mined area
(Default
value)
The timing
of the entry
into force
Execute
(Execute bit)
When the Execute
FALSE to TRUE, the
instruction execution starts
BOOL
TRUE or
FALSE
(FALSE)
CamTable
(Electronic cam No.)
Establishing a main
cam for setting table based
on the relationship of the
cam shaft from
USINT
0 to 31
Exexcute
from FALSE to
TRUE
CamPointNum
(Cam point number)
Select the read point
of the cam
UINT
Exexcute
from FALSE to
TRUE
MasterPos
Set read command
spindle position of the
electronic cam point
LREAL
A positive
number, 0
MasterPos
SlavePos
Reading instruction is
provided from an
electronic point of the cam
shaft position
LREAL
Positive,
negative, 0
SlavePos
