Vector VEC-VA Series User Manual

VA Motion Controller Programming Manual
495
11.6 special instructions

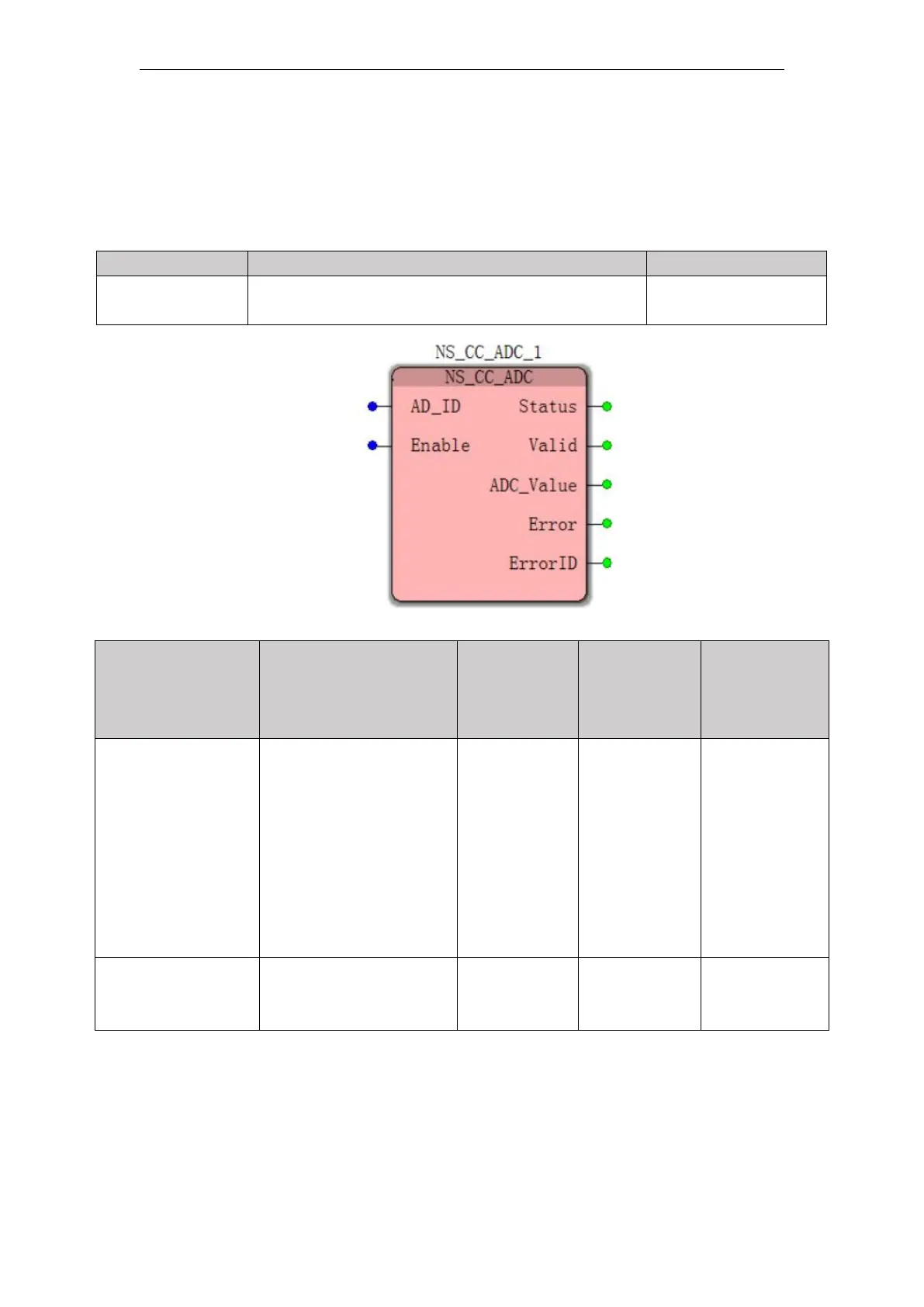

11.6.1 NS_CC_ADC (AD instruction)
FB / FC
Explanation
Applicable model
FB
This instruction is used to convert analog to digital
and outputs
VEC-VA-MP-005-
MA

Input parameters
name
Features
type of
data
Predeter
mined area
(Default
value)
The timing
of the entry
into force
AD_ID
(Analog input
number)
Select the required
analog rpm
The amount of
opening AI0 ~ AI3,
wherein
Numerical Simulation
of 0 to 3 corresponding to
the number of
Input port AI0 ~ AI3
WORD
0-3
(Non-defa
ult)
Enable is
TRUE
Enable
(Execute bit)
When Enable is
TRUE, the instruction is
executed
BOOL
TRUE or
FALSE
Description:
(1)The controller has four analog inputs (±10V) Shown relation between the
analog and digital conversion of the following amounts:
