7 .5 Write Ladder Code
7 .5.1 Insert New Network

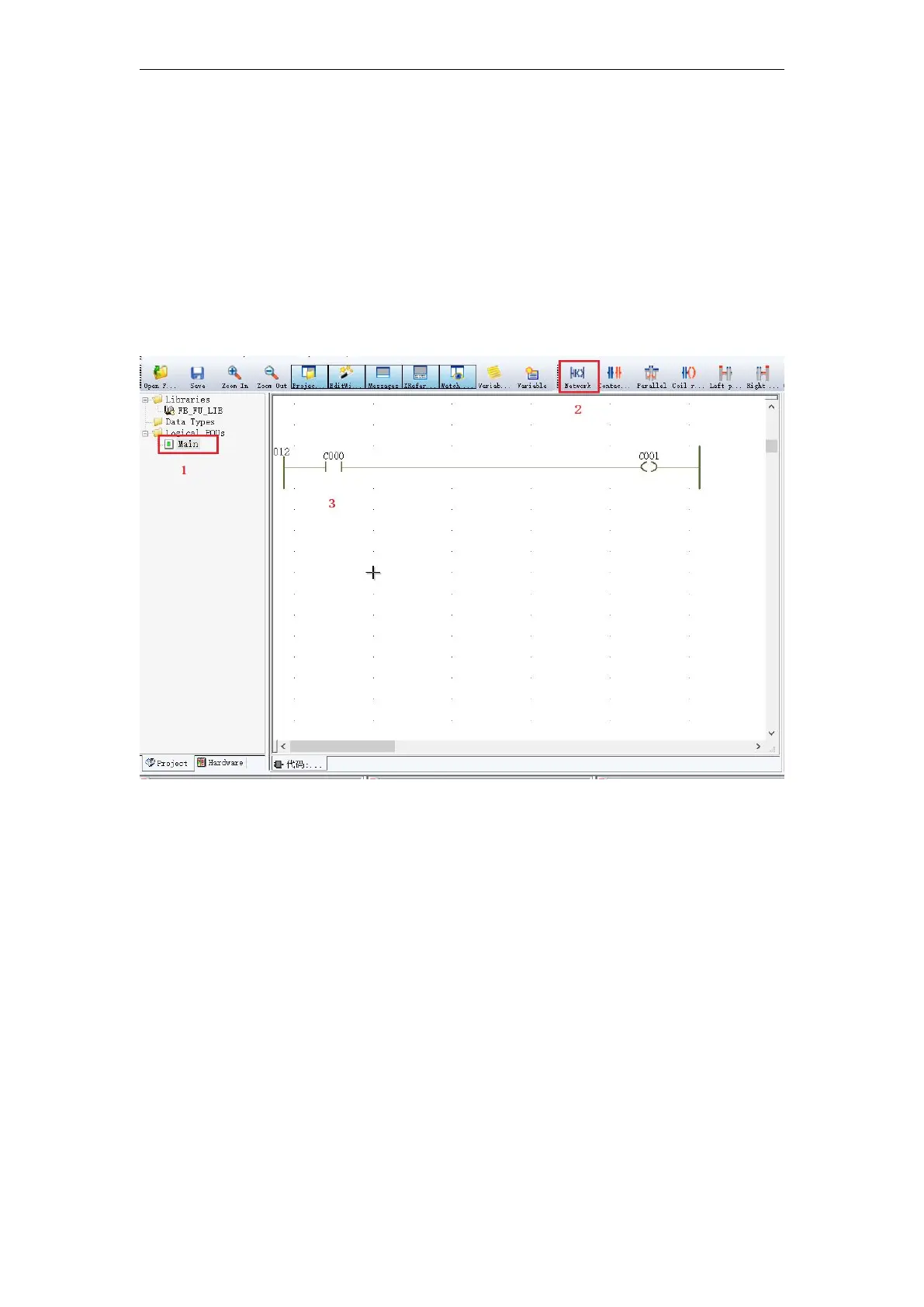

1 ) Double-click the project tree " main " project name, A blank editing
window; click " network" , the occurrence region editing a ladder FIG network , the left side is a
normally open contact, variable The right side of the name C000 is a coil with the variable
name C001 .
7 .5.2 modify variables of the property
1
) Double-click the normally open contact "
C000
" , appears contacts
/
Coil Properties
dialog box, the
I / O
address (
S
) field, enter
% IX0.0
, represents
PLC
a first digital input channel of
the machine, a single click " OK " , as in FIG illustrated
