9 .1 software and motion controller establishes a connection
(Ethernet port communication)
1
: Communication connection diagram
2
: Engineering communication configuration
After the project is created, the communication is quickly configureDAs
follows. (Reference: 7 .1 create projects , 7 .3 physical communication parameters ,
7 . 4 IO configuration )

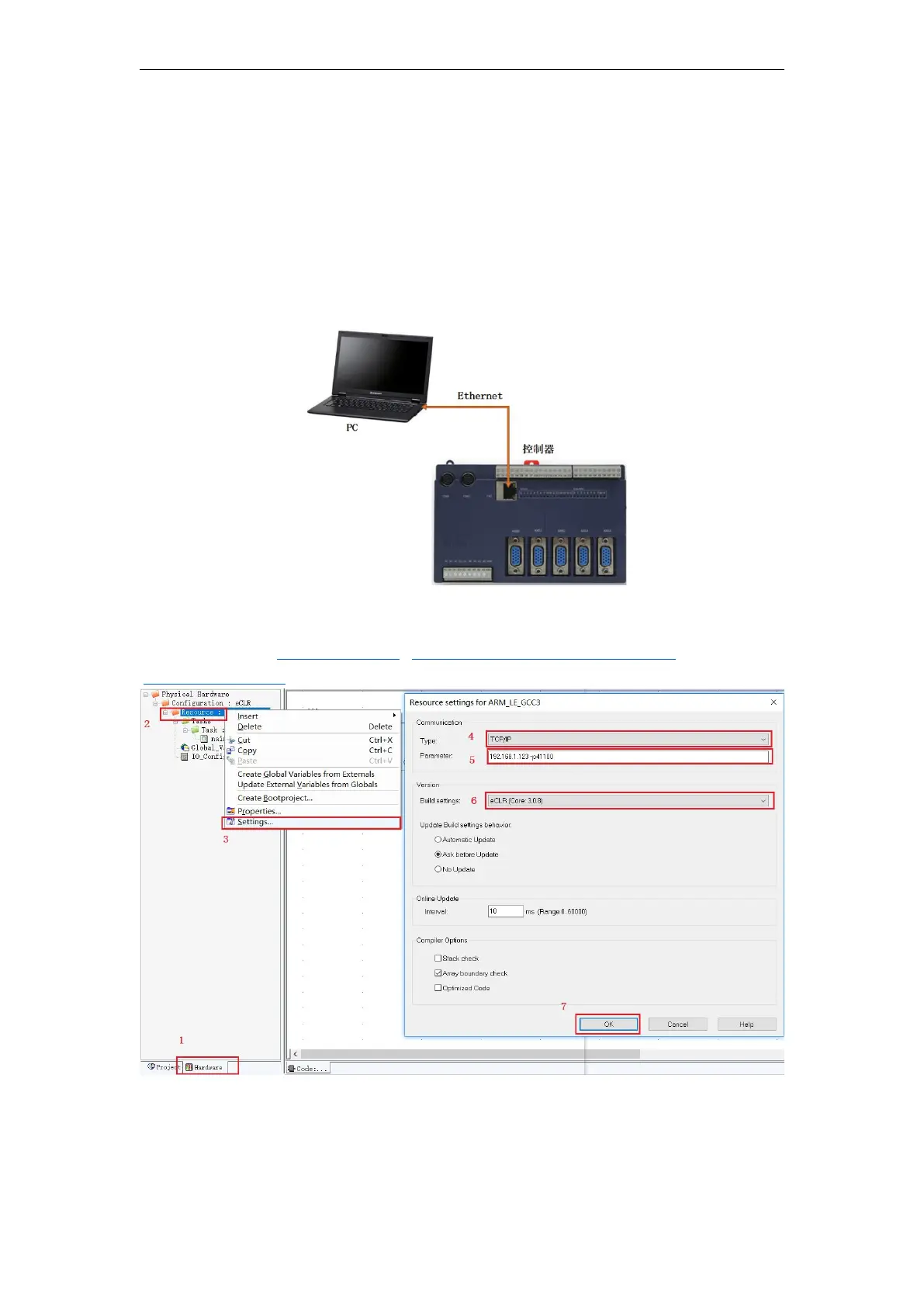

Step 1: After the project is created, select “ Hardware ” in the project tree ;
Step 2: Select "
Resource
:
ARM_LEGCC3
" right-click;
