Vector VEC-VA Series User Manual

VA Motion Controller Programming Manual
163

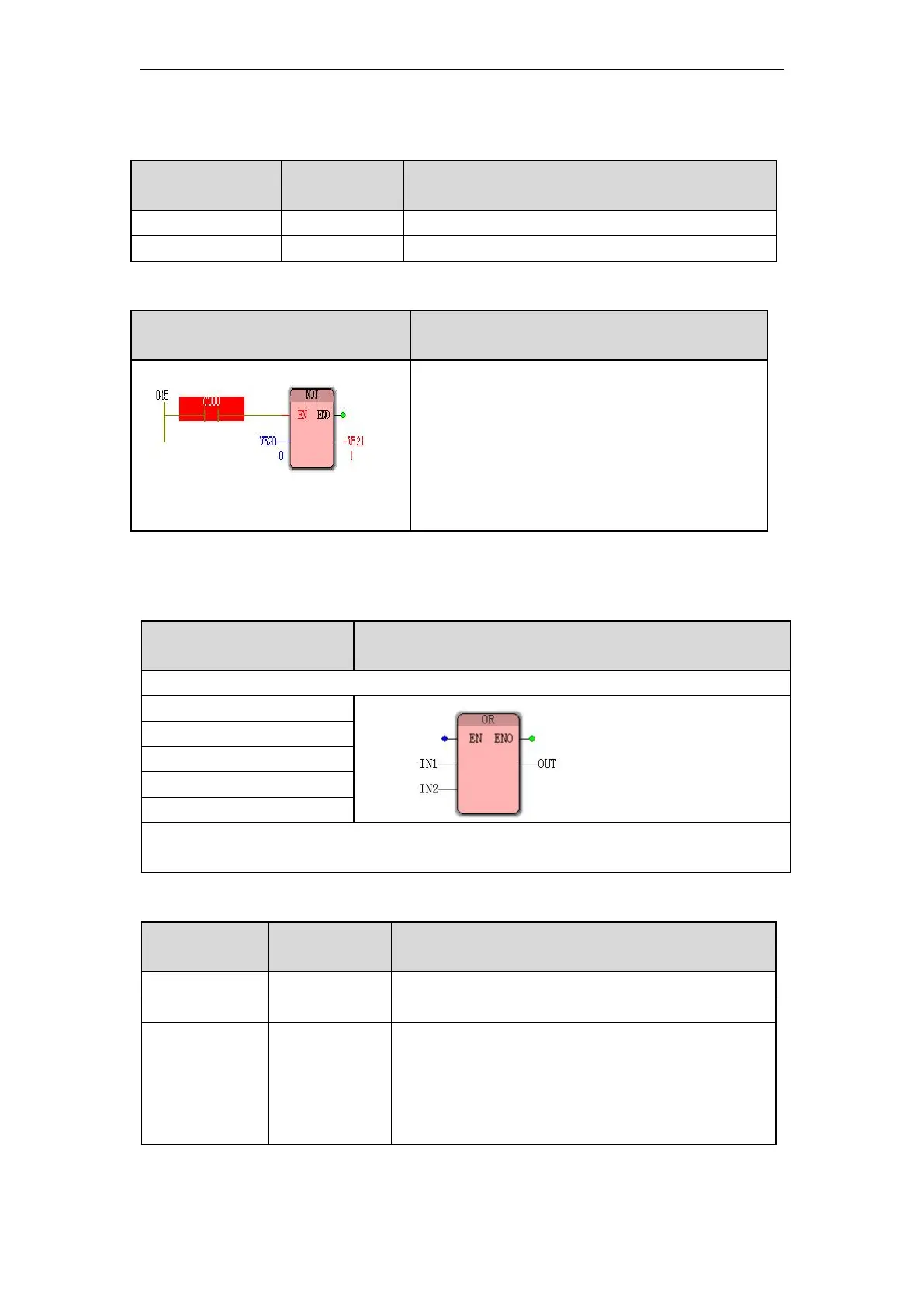

Data type processed by
NOT
instruction
Input and
output
type of
data
description
IN
ANY_BIT
Input
OUT
ANY_BIT
result
Funtion and Action examples
Invert the value
of address
V520
(
BOOL
)
description
When the contact C300 is ON , the
instruction is executed to invert the value of
the address V5 20 ( BOOL ) :
Execution result: 0 ( V520 )
inversion output 1 ( V521 )
10.1.33 OR (Logic or Instruction )
IL programming
language
LD, FBD programming language
Function: The OR instruction is used to logically OR the input value by bit.
LD IN1
OR IN2
ST OUT
ST programming language
OUT:=
(
1N1
)
OR
(
1N2
)
Note : IL, ST language programming needs to insert variables IN1, IN2 and OUT or use
constants in the current POU variable worksheet
Data type processed by the OR instruction
Input and
output
type of
data
description
IN1
ANY_BIT
First input
IN2
ANY_BIT
Second input
OUT
ANY_BIT
Result, logical OR operation
IN1=0, IN2=0, OUT is 0;
IN1=0, IN2=1, OUT is 1;
IN1=1 , IN2=0 , OUT is 1;
IN1=1 , IN2=1 , OUT is 1;
