Vector VEC-VA Series User Manual

VA Motion Controller Programming Manual
429
11.5.7 peeling function control characteristics

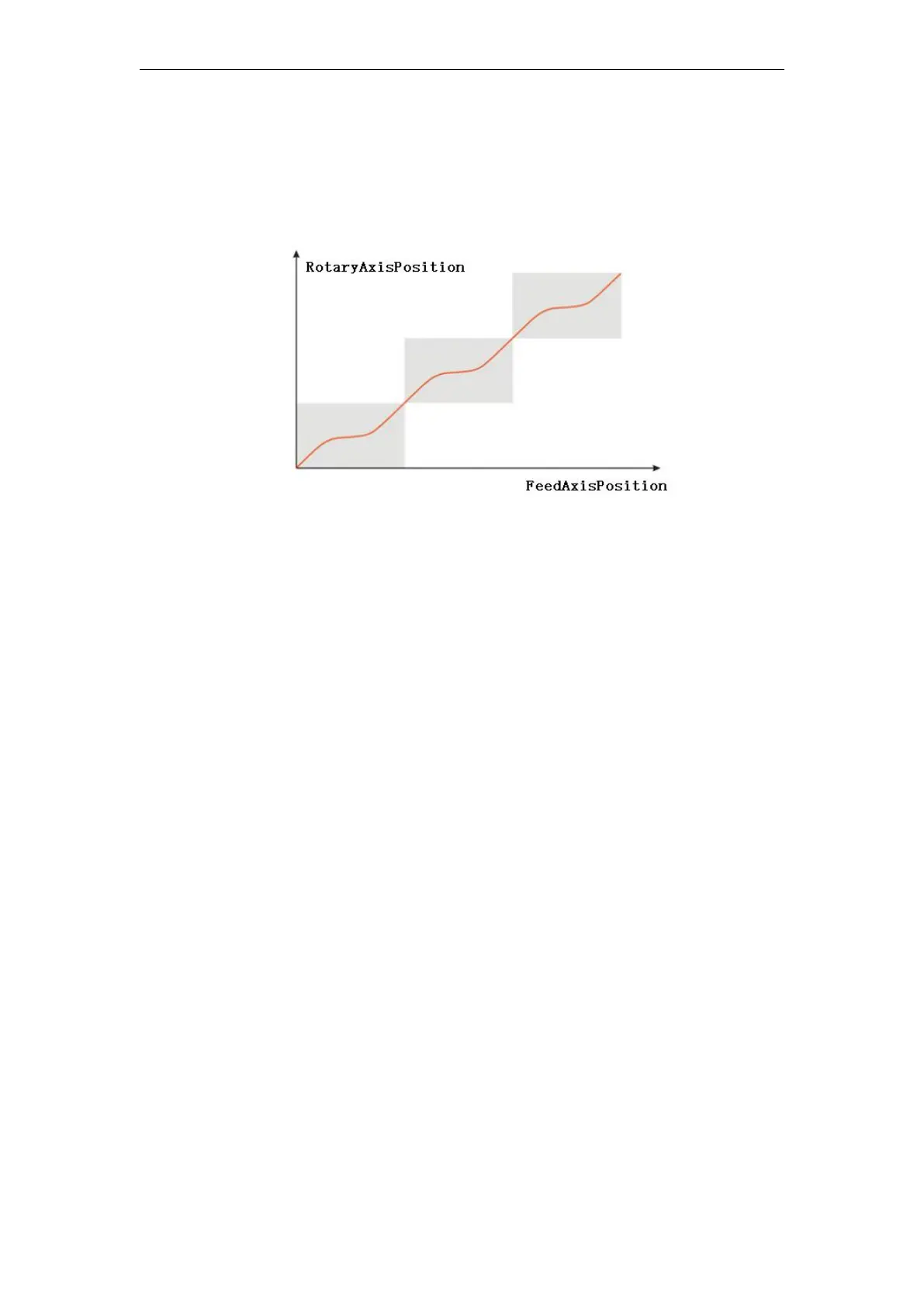

Rotary Cut function is a special electronic cam function. Continuous cutting, peeling
schematic curve which follows:
Features
1, The user can freely set the cutting length according to process requirements, can be less
than or greater than the cut length equal to the circumference of the cutter.
2. In the synchronization area, the peeling axis feed shaft according to a certain operation
speed ratio (speed generally equal), and the cut material occurs in the synchronization area.
3, The peeling function is activated, the feed peeling axis to follow the phase of the operation
shaft, the shaft can therefore feed a constant speed, acceleration, deceleration, irregular movement.
4, the roller peeling peeling function supports multiple tip.
5, after the peeling function, rotary cutter stop-zero, i.e., entry point.
