Vector VEC-VA Series User Manual

VA Motion Controller Programming Manual
524

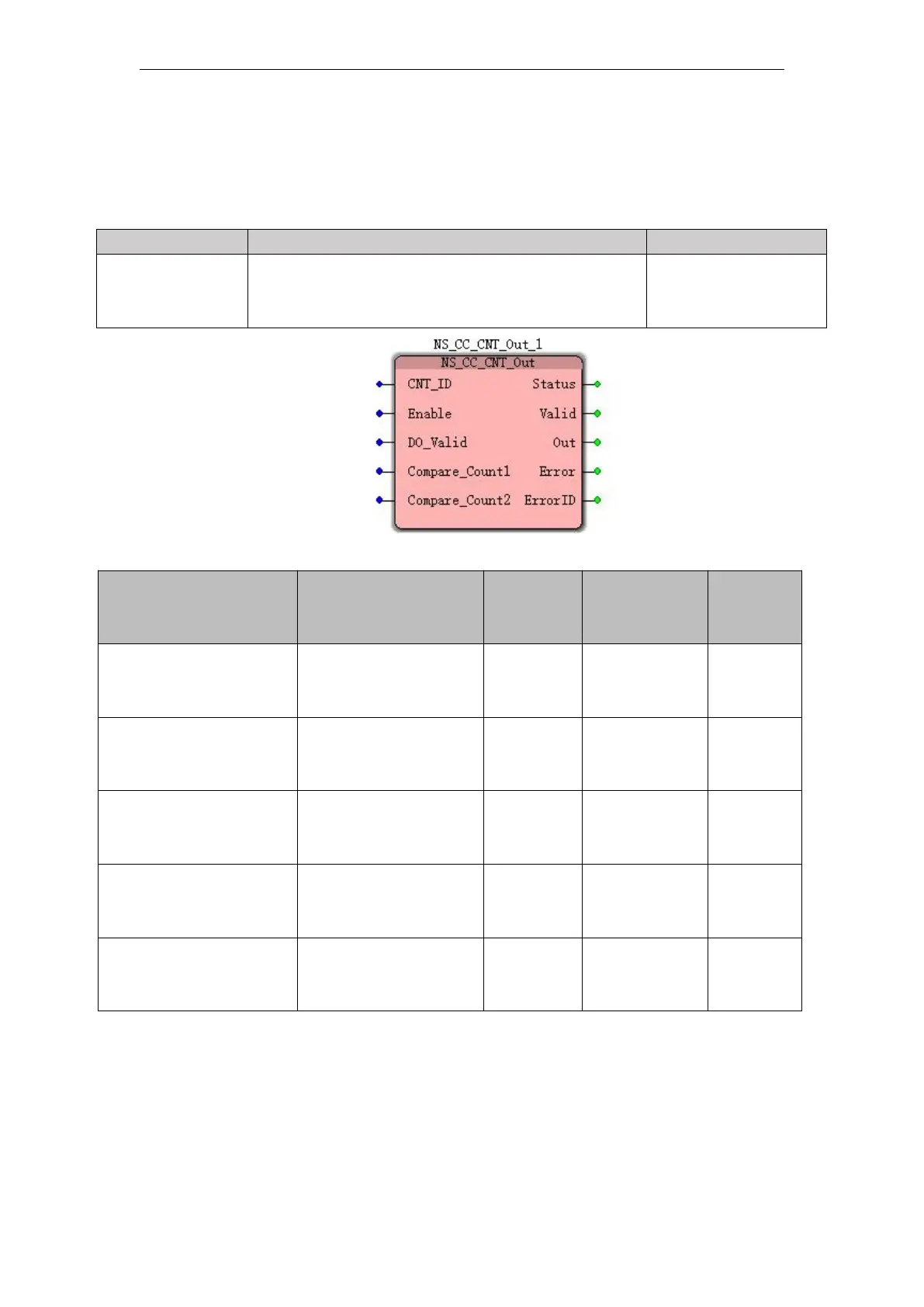

11.6.8 NS_CC_CNT_Out (comparison output instruction
section)
FB / FC
Explanation
Applicable model
FB
The instructions for the high-speed counter current
value reaches the set interval immediately output, DO
outputted from the scan cycle Effect
VEC-VA-MP-005-
MA
 Input parameters
name
Features
type of data
Setting range
(Non-default)
The timing
of the entry
into force
CNT_ID
(Counter associated axis
number)
Associated with a
respective number of
high-speed counter shaft
WORD
0-6
(Non-default)
-
Enable
(Execute bit)
When the Enable
FALSE to TRUE, the
instruction is executed.
BOOL
TRUE or
FALSE
-
DO_Valid
(Allowing the Q output
valid bit)
When the value is
TRUE, the Q output to
allow effective
BOOL
TRUE or
FALSE
-
Compare_Count1
(Minimum value
setting section min)
Min Min pulse interval
is set (unit:)
DINT
A positive
number
-
Compare_Count2
(Setpoint interval
maximum value Max)
Setting a maximum
value Max pulse interval
(unit:)
DINT
A positive
number
-
Description:
(1) NS_CC_CNT_Out instruction (instruction comparison output section) needs to be
associated NS_CC_Counter instruction (high-speed counter) used together, no meaning when used
alone.
(2) NS_CC_CNT_Out instruction (output instruction section compare) instruction correlation
NS_CC_Counter (high-speed counter), needs to be provided CNT_ID (number associated with a
