11.5.18 MC_ReadTappetValue (single read command tappet
point information)

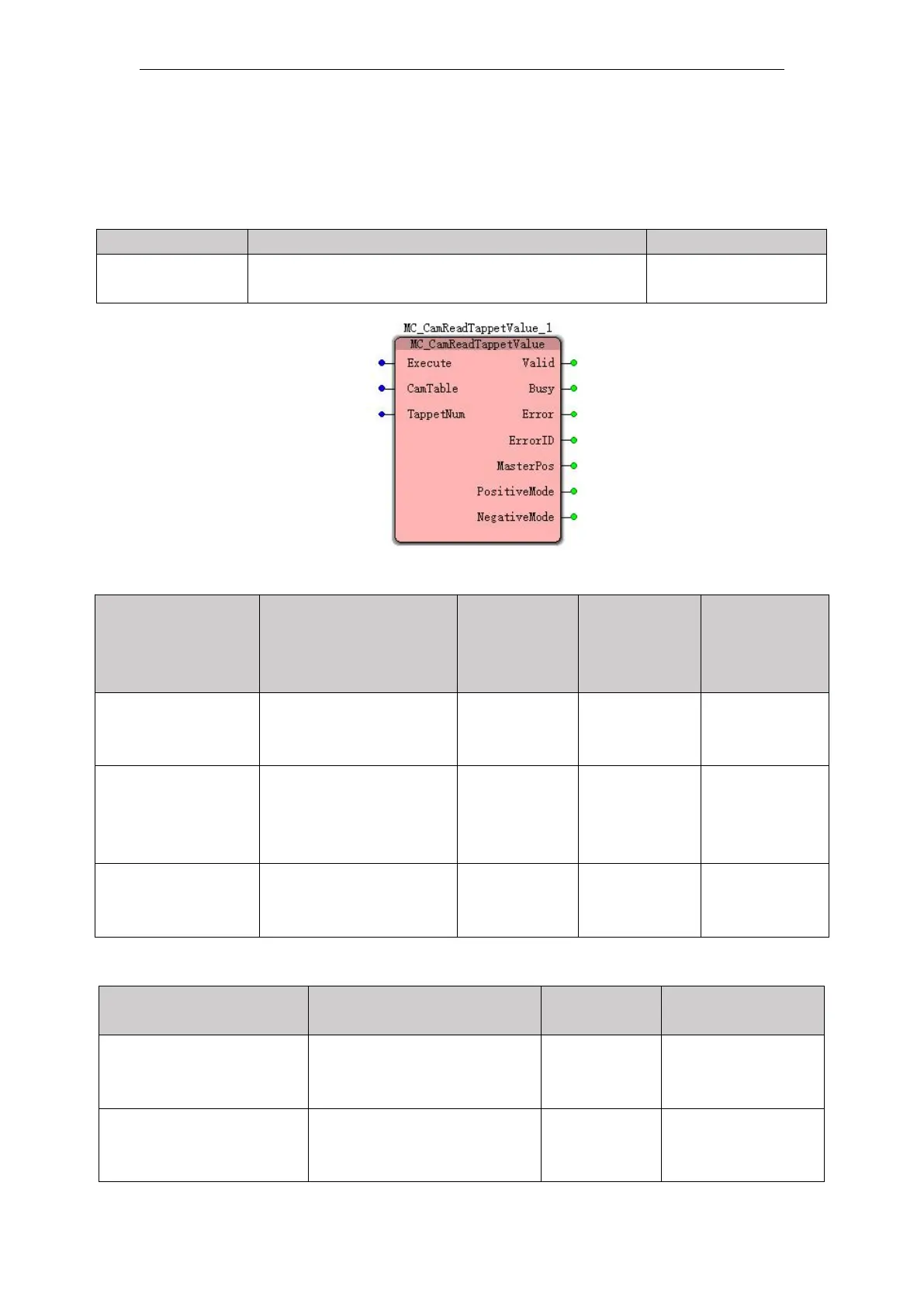

FB / FC
Explanation
Applicable model
FB
This instruction is a single instruction for reading
information tappet point
VEC-VA-MP-005-
MA
 Input parameters
name
Features
type of
data
Predeter
mined area
(Default
value)
The timing
of the entry
into force
Execute
(Execute bit)
When the Execute
FALSE to TRUE, the
instruction execution starts
BOOL
TRUE or
FALSE
(FALSE)
CamTable
(Electronic cam
No.)
Establishing a main
cam for setting table based
on the relationship of the
cam shaft from
USINT
0 to 31
Exexcute
from FALSE to
TRUE
TappetNum
(Tappet point
number)
Read tappet point
number
UINT
(Non-defa
ult)
Exexcute
from FALSE to
TRUE

Output parameters
name
Features
type of
data
Output range
Valid
The parameter is TRUE
outputs a command valid when
executed
BOOL
TRUE or FALSE
Busy (execution)
This parameter indicates to
TRUE output instruction is
executed
BOOL
TRUE or FALSE
