10.1.27 MUL (Multiplication Directive )
IL programming
language
LD, FBD programming language

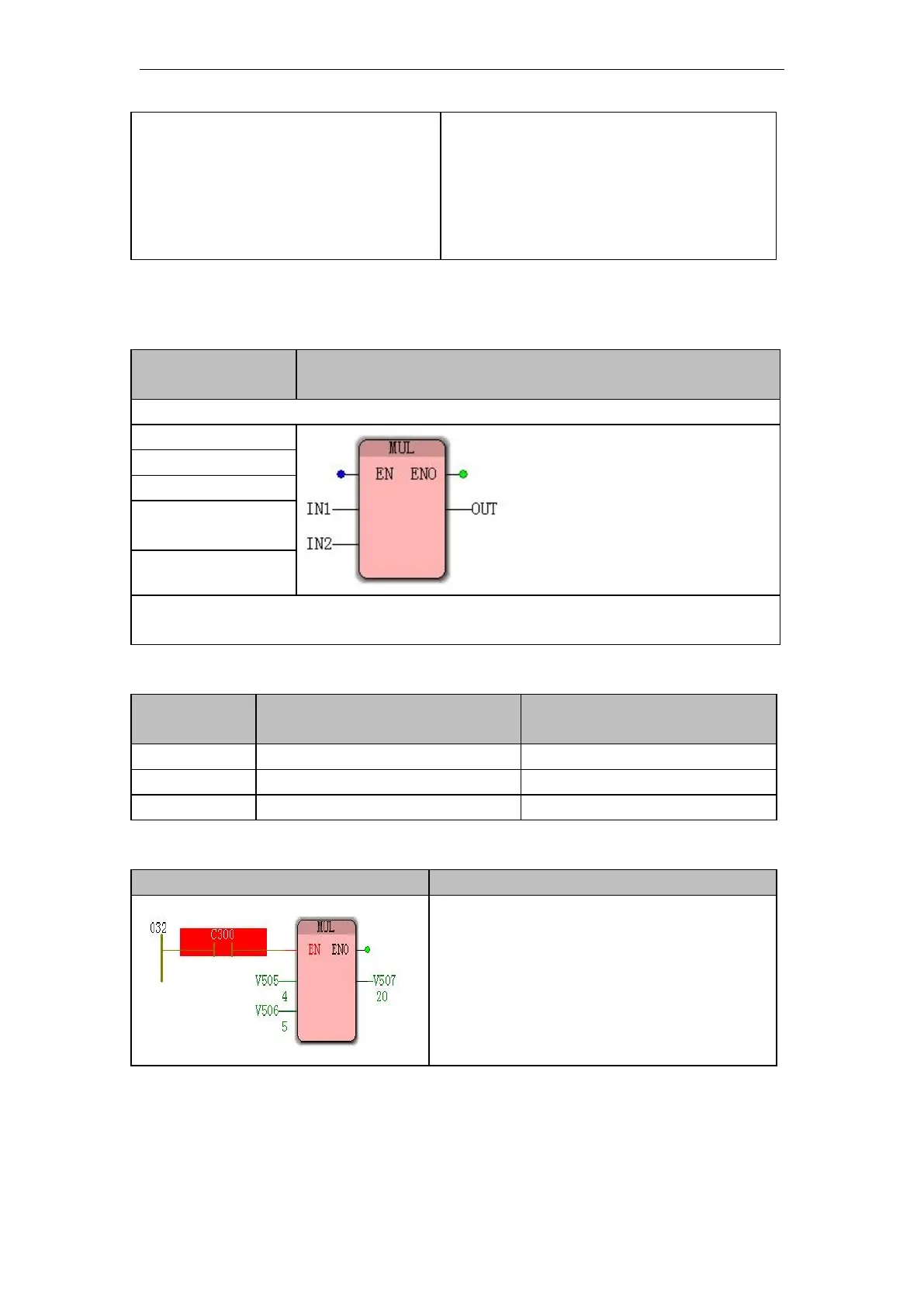

Function: The MUL instruction is used to find the product of two data.
LD IN1
MUL IN2
ST OUT
ST programming
language
OUT :=IN1*IN2
Note :
IL, ST
language programming needs to insert variables
IN1, IN2
and
OUT
or use
constants in the current
POU
variable worksheet
The MUL data processing instruction type
Input and
output
type of data
description
IN1
ANY_NUM
First input
IN2
ANY_NUM
Second input
OUT
ANY_NUM
Product, OUT=IN1*IN2
Funtion and Action examples
Find the value of the integer
4*5
description
When the contact
C300
is
ON
when this
instruction is executed, the address of
the
V505
value by multiplying the
address
V506
the value accumulated in
V507
:
Execution result:
V505 * V506=V507
