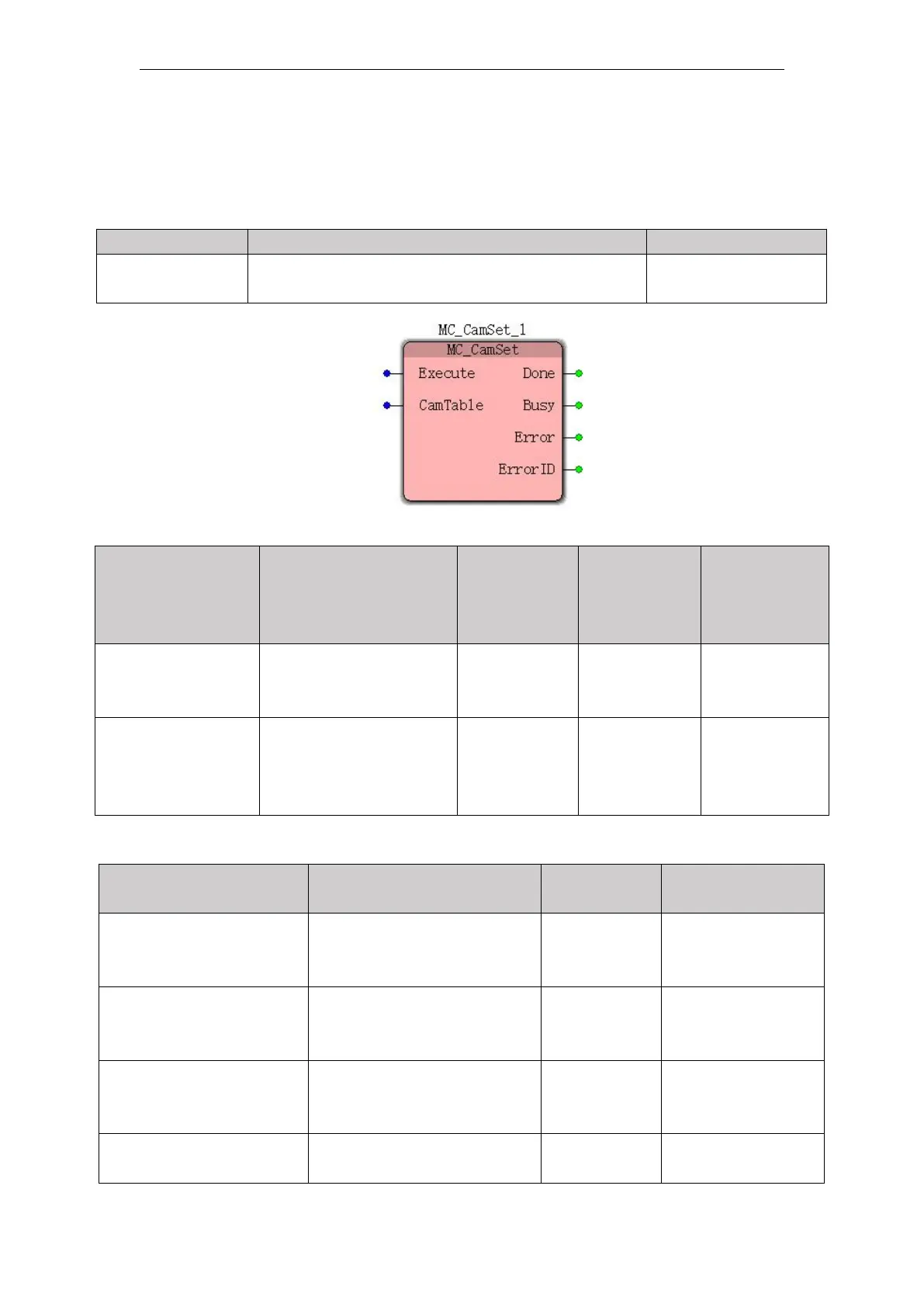

11.5.16 MC_CamSet (changes to take effect cam point
instructions)
FB / FC
Explanation
Applicable model
FB
This instruction is used to change the point of entry
into force of the cam
VEC-VA-MP-005-
MA
 Input parameters
name
Features
type of
data
Predeter
mined area
(Default
value)
The timing
of the entry
into force
Execute
(Execute bit)
When the Execute
FALSE to TRUE, the
instruction execution starts
BOOL
TRUE or
FALSE
(FALSE)
CamTable
(Electronic cam No.)
Establishing a main
cam for setting table based
on the relationship of the
cam shaft from
USINT
0 to 31
Exexcute
from FALSE to
TRUE

Output parameters
name
Features
type of
data
Output range
Done (done bit)
The output parameter to
TRUE indicates instructions are
executed
BOOL
TRUE or FALSE
Busy (execution)
This parameter indicates to
TRUE output instruction is
executed
BOOL
TRUE or FALSE
Error (error)
It represents execution of
the faulting instruction when the
output instruction is TRUE
BOOL
TRUE or FALSE
ErrorID (error code)
Error Error code when
execution instruction
WORD
-
