3 ) The function block EXPT completes the square operation of x , the function
block MUL completes the multiplication of a and X
2
, the other MUL completes the multiplication
of b and x , the function block ADD completes the addition of ax
2
and bx and c , click

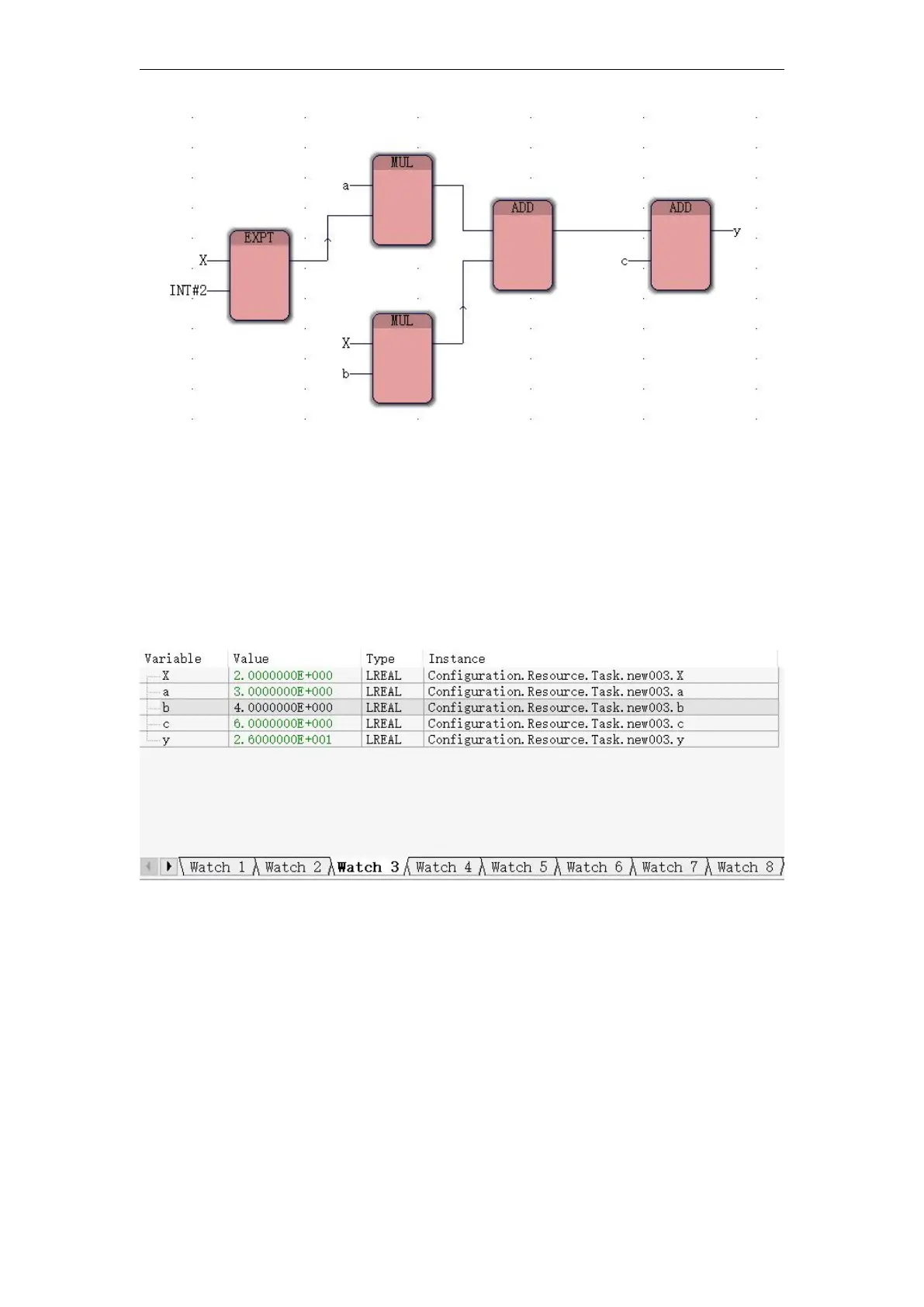

" produce " Then "bottom" , then click " debug switch " , add the variables a, b, c, x, y to the
watch window, assign the variables a, b, c, x to 3.0, 4.0, 6.0,2.0. Respectively , the program
automatically calculates the result of ax
2
+ bx + c = y , as shown
In FBD , there is no need to create additional variables in the variable worksheet, so after
inserting the variables and double-clicking the variables, they appear in the variable
worksheet. The FBD function block diagram programming language is similar to the LD ladder
diagram programming language.
At this point, the completion of a FBD language programming .
6 .4.2 EN and ENO Description
1
: The difference between the logic instruction with
EN
and
ENO
and without
EN
and
ENO
;
(
1
) When the user uses an instruction with
EN
and
ENO
, if the parameter value of the
EN
pin
