Vector VEC-VA Series User Manual

VA Motion Controller Programming Manual
430
11.5.8 peeling Features

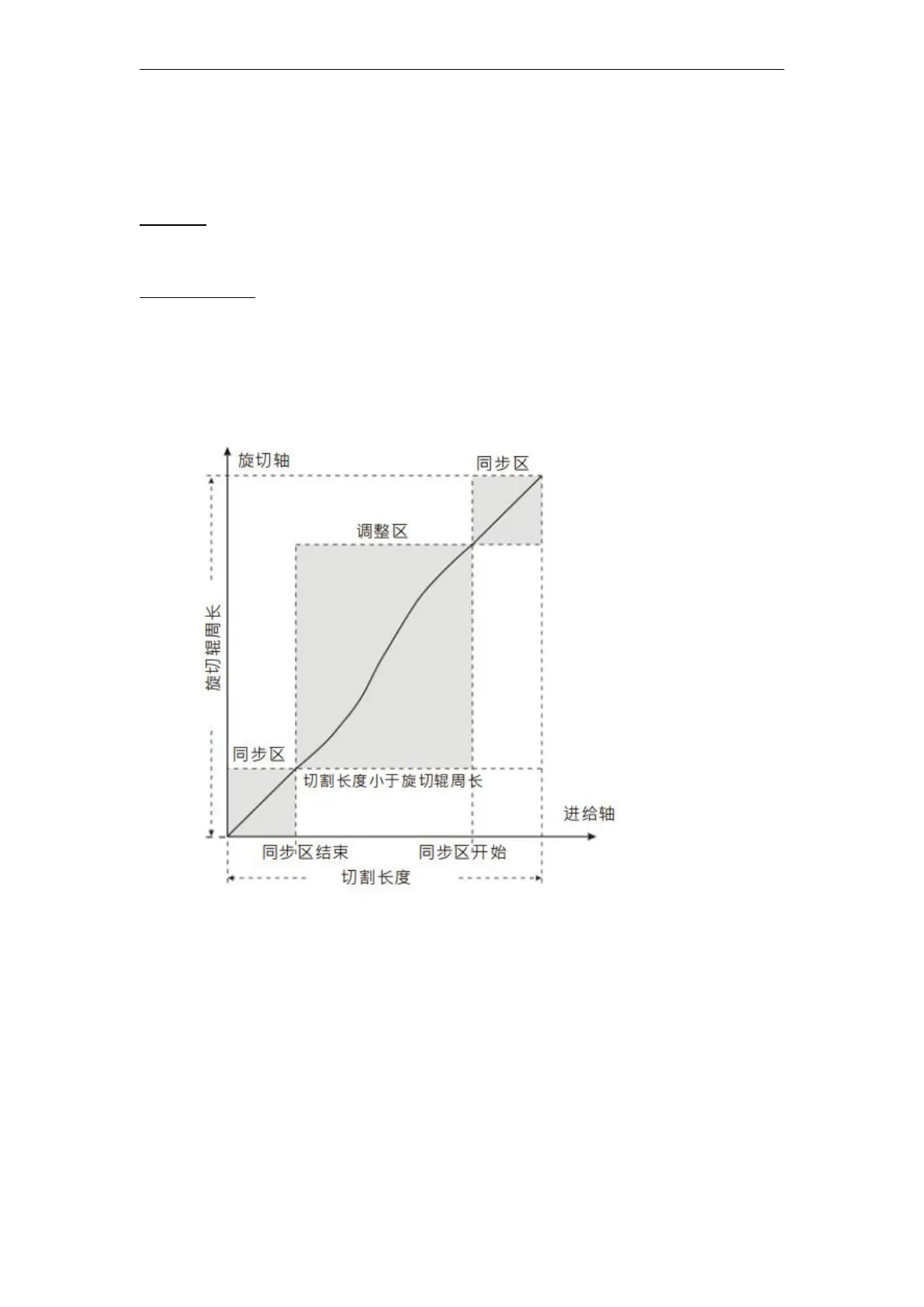

Peeling area and curve into synchronous adjustment zone.
Sync area:At this time, the peeling axis feed shaft at a fixed speed ratio operation (linear velocity
of the tip of the cutting face generally equal), and the cut material occurs in the
synchronization area.
Adjustment zone:Due to the different cutting lengths, corresponding displacement adjustment
needs to be done. The cutting length adjustment region can be divided into the following
three cases.
1: Short material cutting
When the cut length is less than the circumference of the roller peeling, peeling cycle follows
a curve of any
When feeding short cut, peeling axis adjustment must be accelerated in the region, and then
decelerate to synchronous speed.
