VA Motion Controller Programming Manual
431

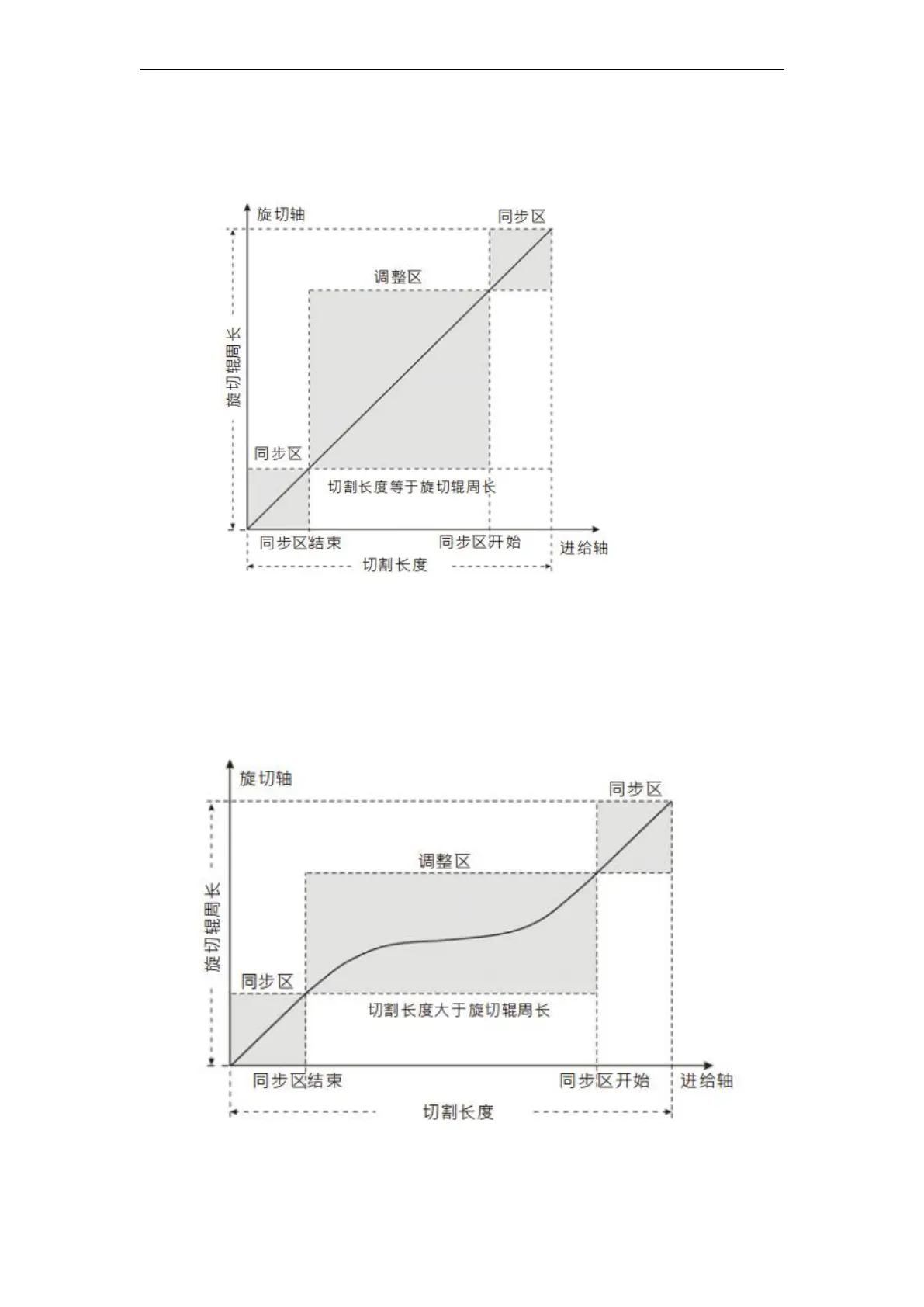

2: Isometric cutting
When peeling a length equal to the circumference of the knife roll, peeling curve of any one
of the following cycle:
In this case, sync area with the non-synchronous zone peeling axis and the feed axis speed
synchronization has been maintained, no adjustment peeling axis.
3: Long cutting material
When the peeling length is greater than the circumference of the roller cutter, a peeling
profile according to any of the following cycle:
In this case, peeling axis adjustment should first deceleration zone, and then accelerated to
