Vector VEC-VA Series User Manual

VA Motion Controller Programming Manual
382

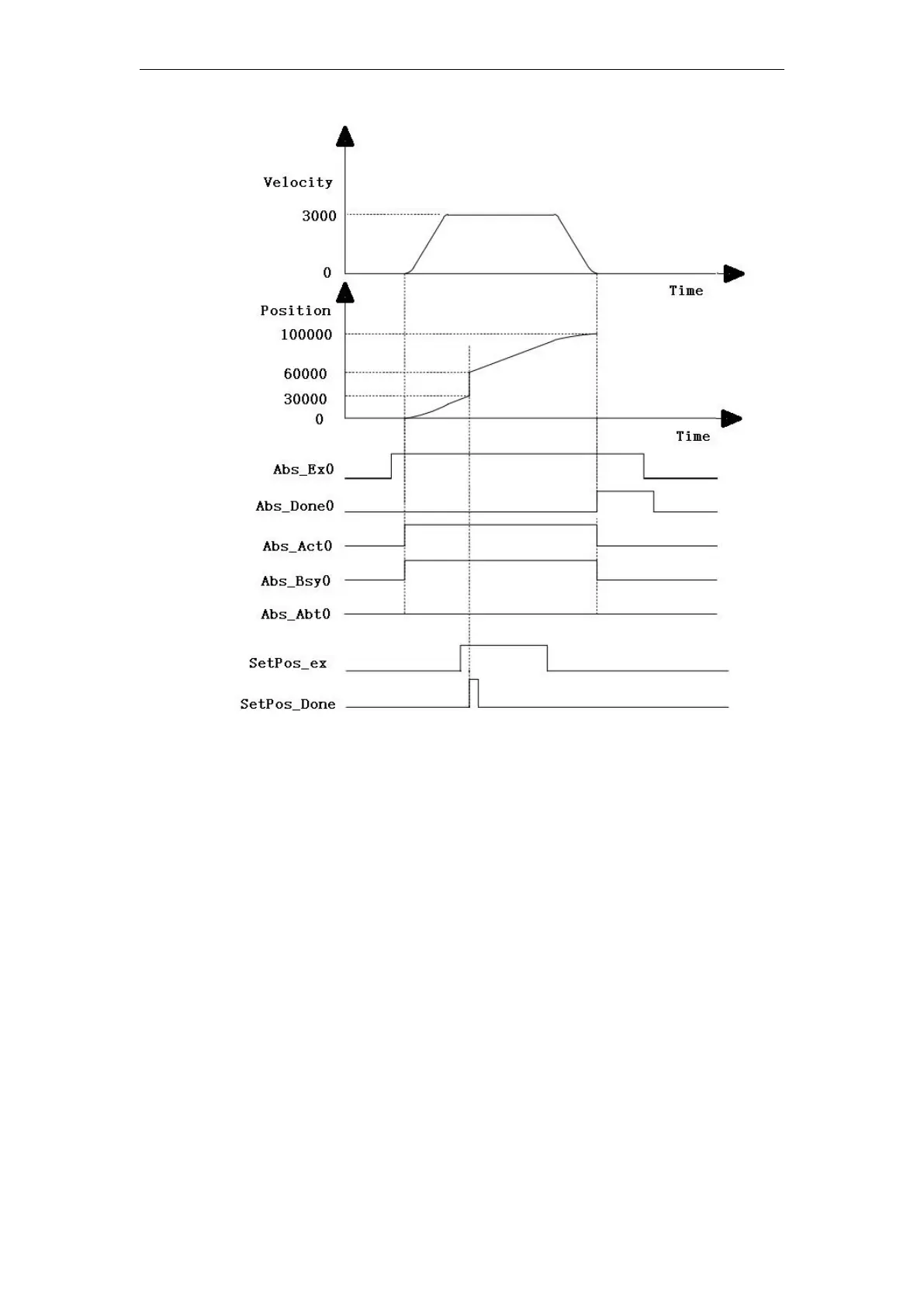

 When Abs_Ex0 a FALSE to TRUE, MC_MoveAbsolute instruction starts
execution, MC_SetPosition instruction execution when the current position is greater than
30,000.
 MC_SetPosition command position when the instruction to start execution of
30,000, a command execution completion position which is 60,000, when the position of the
instruction execution is completed MC_MoveAbsolute 100,000.
 Of speed variations can be seen in the figure above: MC_SetPosition instruction
does not affect the practical implementation of the results of executing MC_MoveAbsolute
