Vector VEC-VA Series User Manual

VA Motion Controller Programming Manual
517

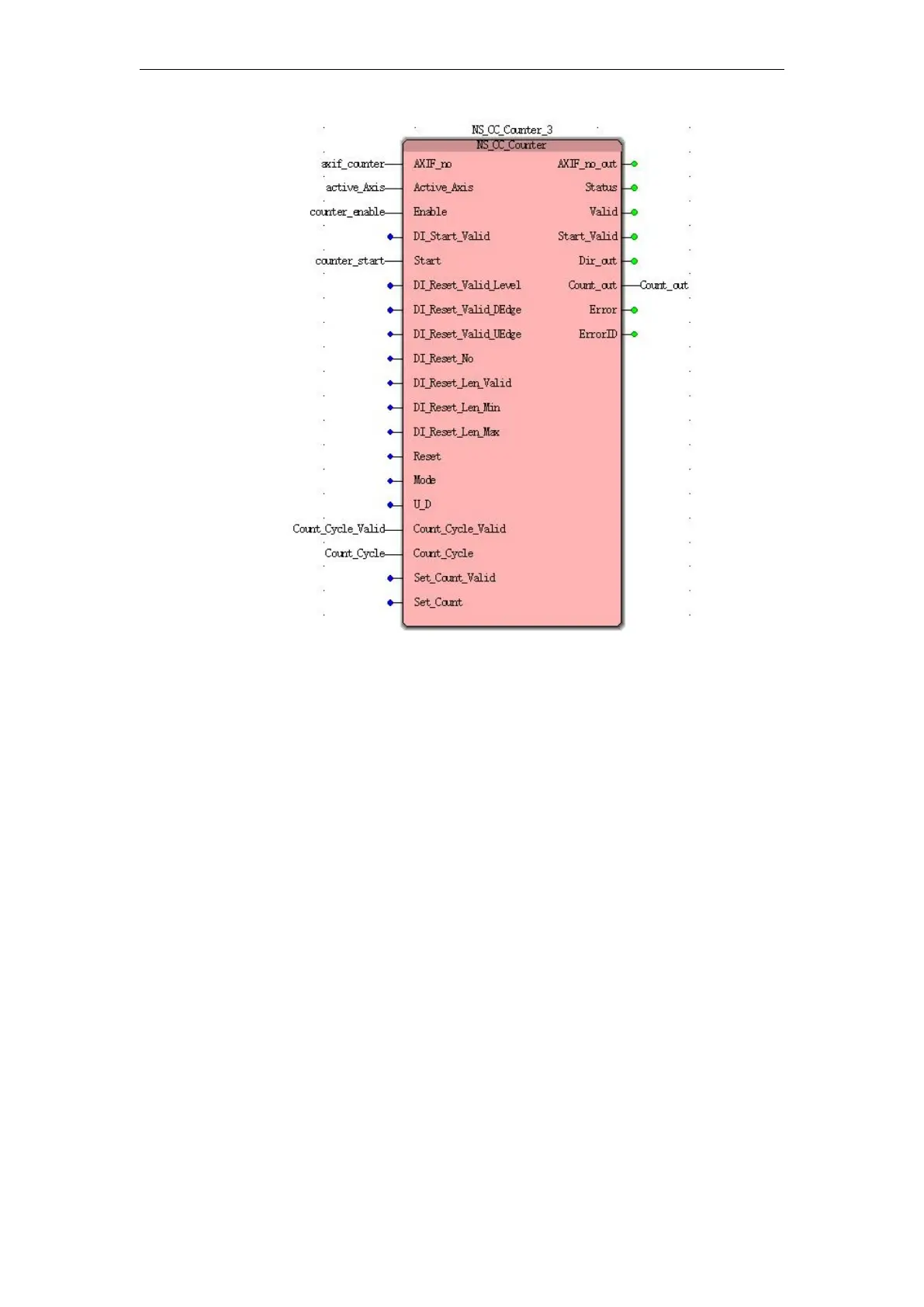

Case 1:When counter_enable a FALSE to TRUE, counter_start from FALSE to TRUE starts
allows high-speed counter, Count_out display the current count of pulses. When Set_Count_Valid
variable from FALSE becomes TRUE, high-speed counter Count_out current value is modified
10,000, and kept 10,000, when Set_Count_Valid variable by TRUE becomes FALSE, when a
pulse comes in, counts the number of pulses will continue to increment the basis of 10,000 or on
decremented.
