VA Motion Controller Programming Manual
516

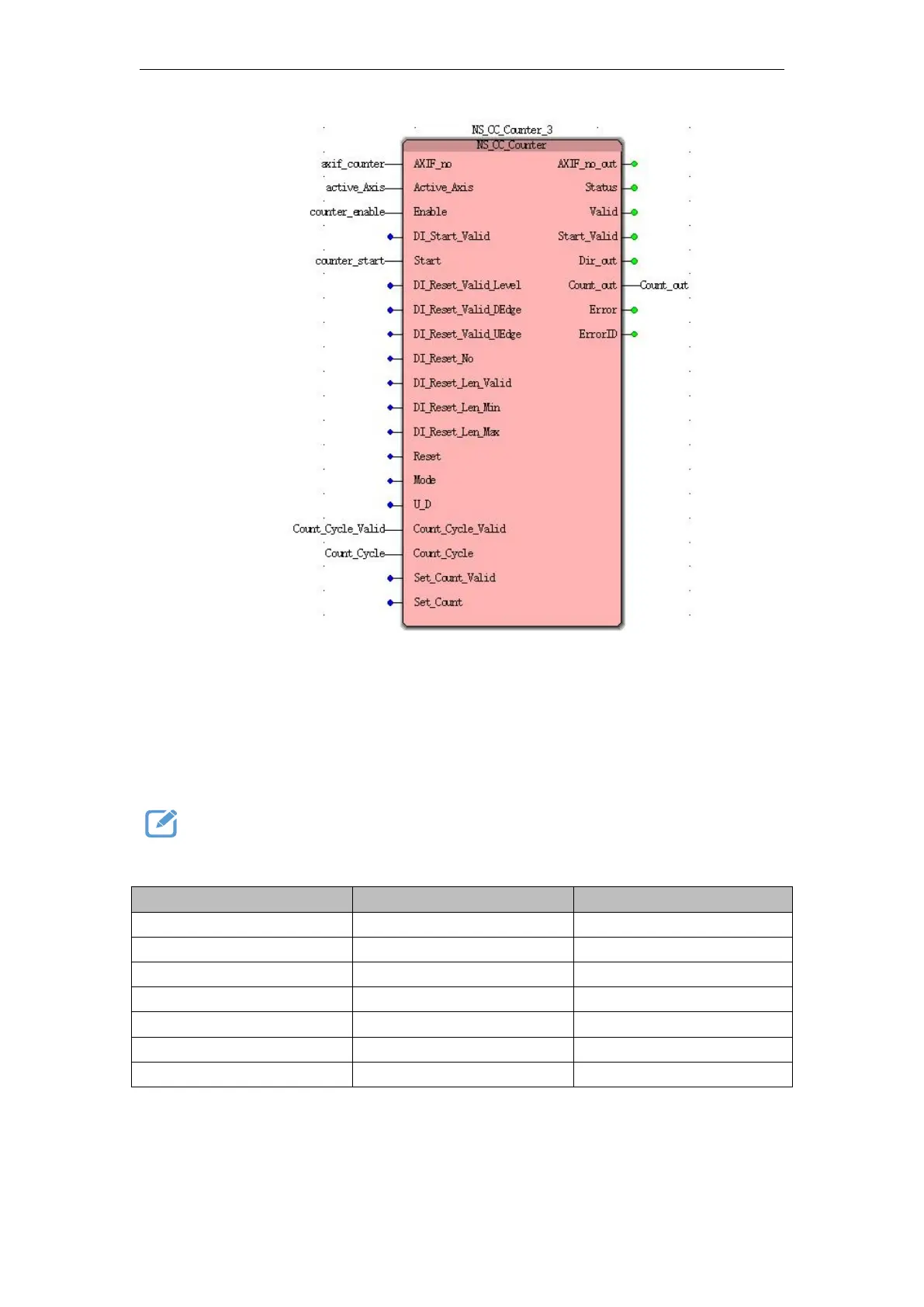

Case 1:When counter_enable from FALSE to TRUE, and held, counter_start from FALSE to
TRUE starts allows high-speed counter, Count_out display the current count of pulses. When the
high-speed counter current value of 5000, the counter is automatically cleared recount, constant
cycle.
Demonstration program
Modes Number of pulses counter shaft axif_counter
1, variables, and procedures
Variable name
type of data
The initial value
NS_CC_Counter_3
NS_CC_Counter
Axif_counter
WORD
0
active_Axis
WORD
0
counter_enable
BOOL
1
Star
BOOL
1
Set_Count_Valid
BOOL
Set_Count
DINT
10000
