0UT
ANY_BIT
Logical exclusive OR operation
IN1=0, IN2=0, OUT
is
0;
IN1=0, IN2=1, OUT
is
1;
IN1=1, IN2=0, OUT
is
1;
IN1=1, IN2=1, OUT
is
0;

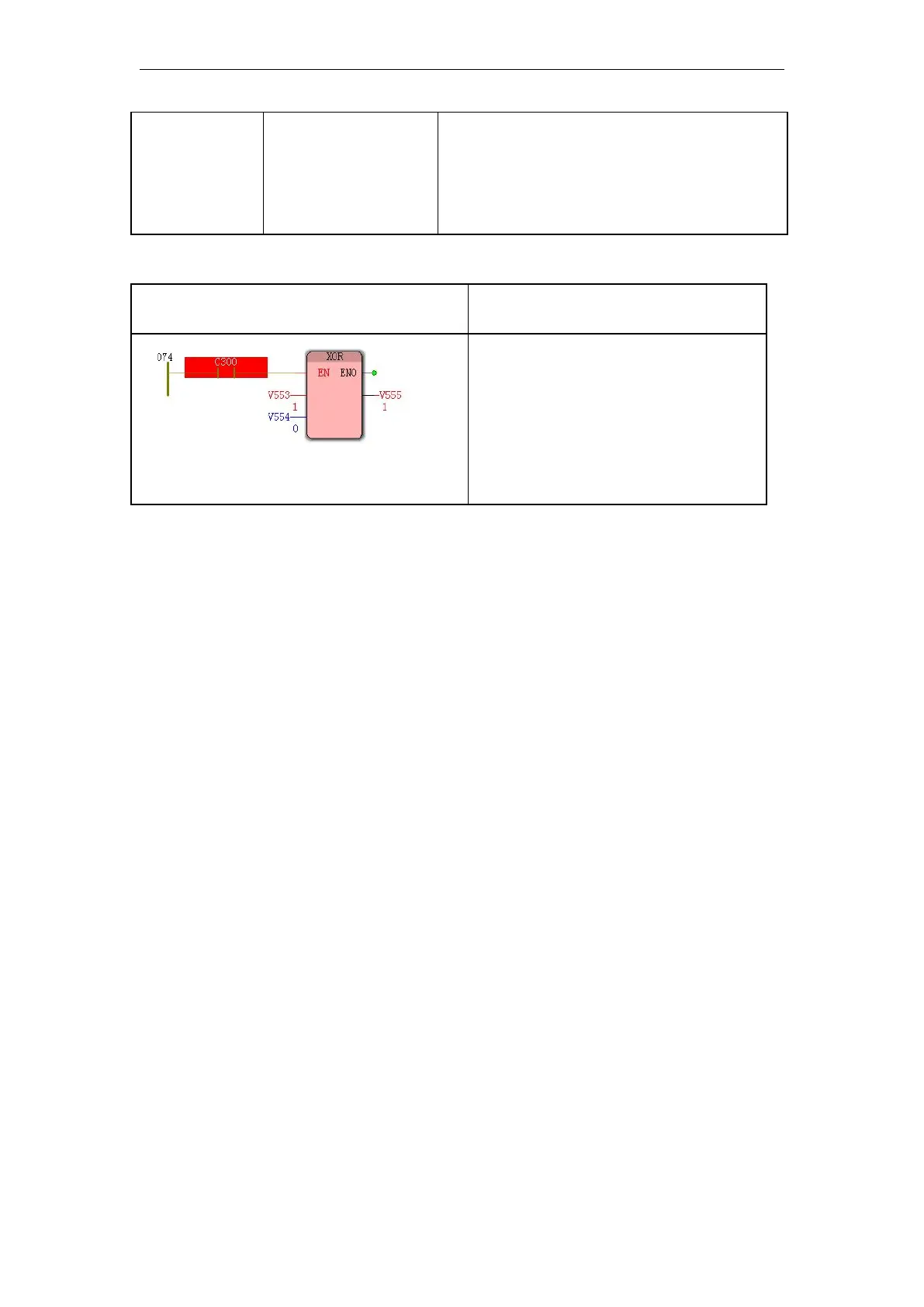

Funtion and Action examples
Find the value of the exclusive OR of
the address V553 ( BOOL ) and V554 ( BOOL )
description
When the contact
C300
is
ON
when this
instruction is executed : When
the
V553
(
BOOL
) and
V554
(
BOOL
) values
of different time , the output is
1
Execution result :
V553
and
V554
are
different output
1
