Vector VEC-VA Series User Manual

VA Motion Controller Programming Manual
43
3>

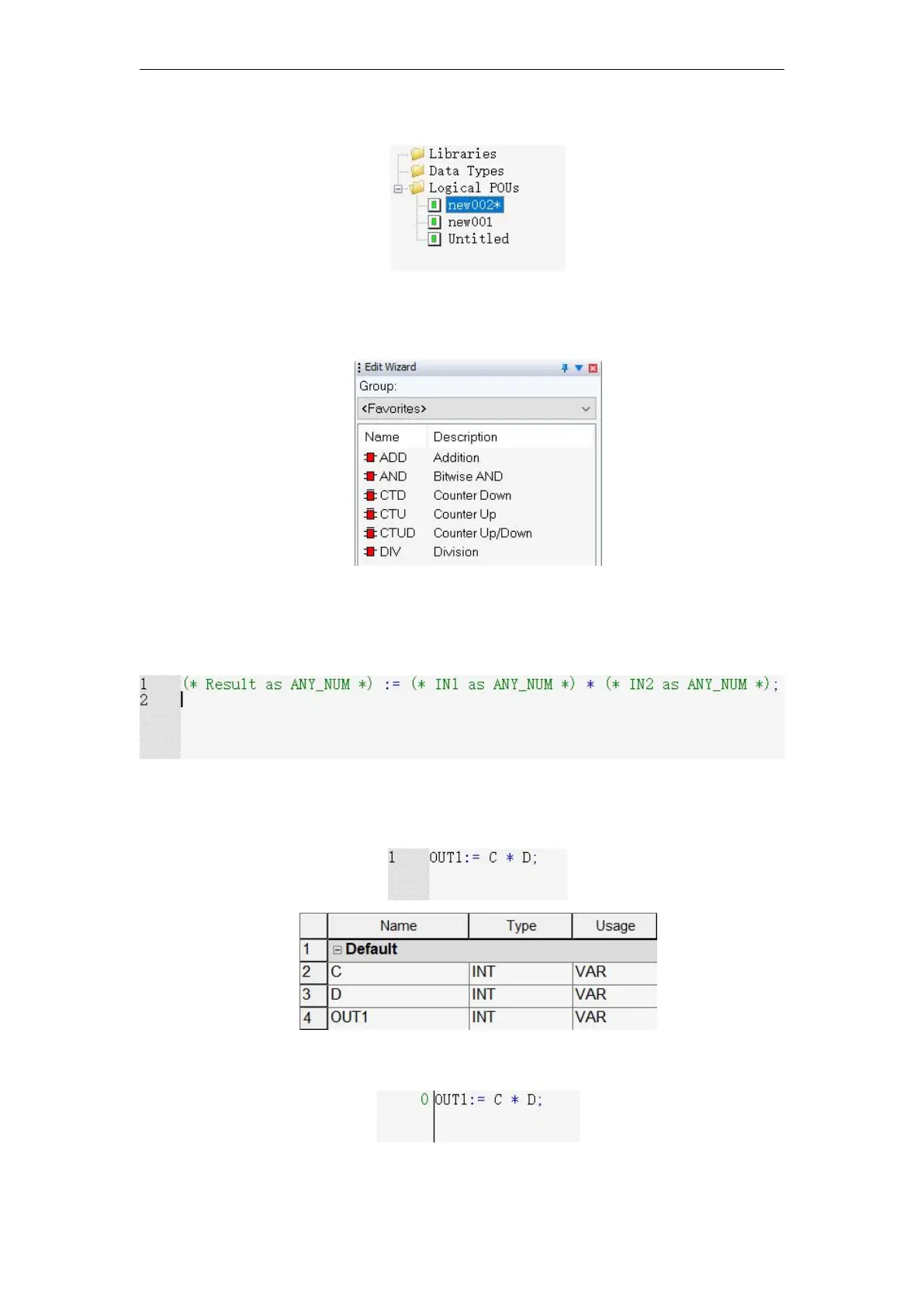

there is a project tree in the new procedure
the POU
, as shown.
4>
Double -click " logic
the POU
" under "
ST_Text
" , theNSelect Edit Wizard
region " all
FU
and
the FB
" , anDAll functions appears function can block, as shown.
5>
Double-click "
MUL
" , or dragging
MUL
into the editor,
MUL
function appears in the
editing area, as shown.
6>
The figures were changed to green font part
OUT
and
C
and
D
; ( user himself caNSelect
the variable name, not necessarily the
IN
and
OUT
), as shown.
7>
Click " Make " , and "Download" , then click " Debug Switch " , you caNSee the current
result on the left side of the edit interface, as shown
