VA Motion Controller Programming Manual
571

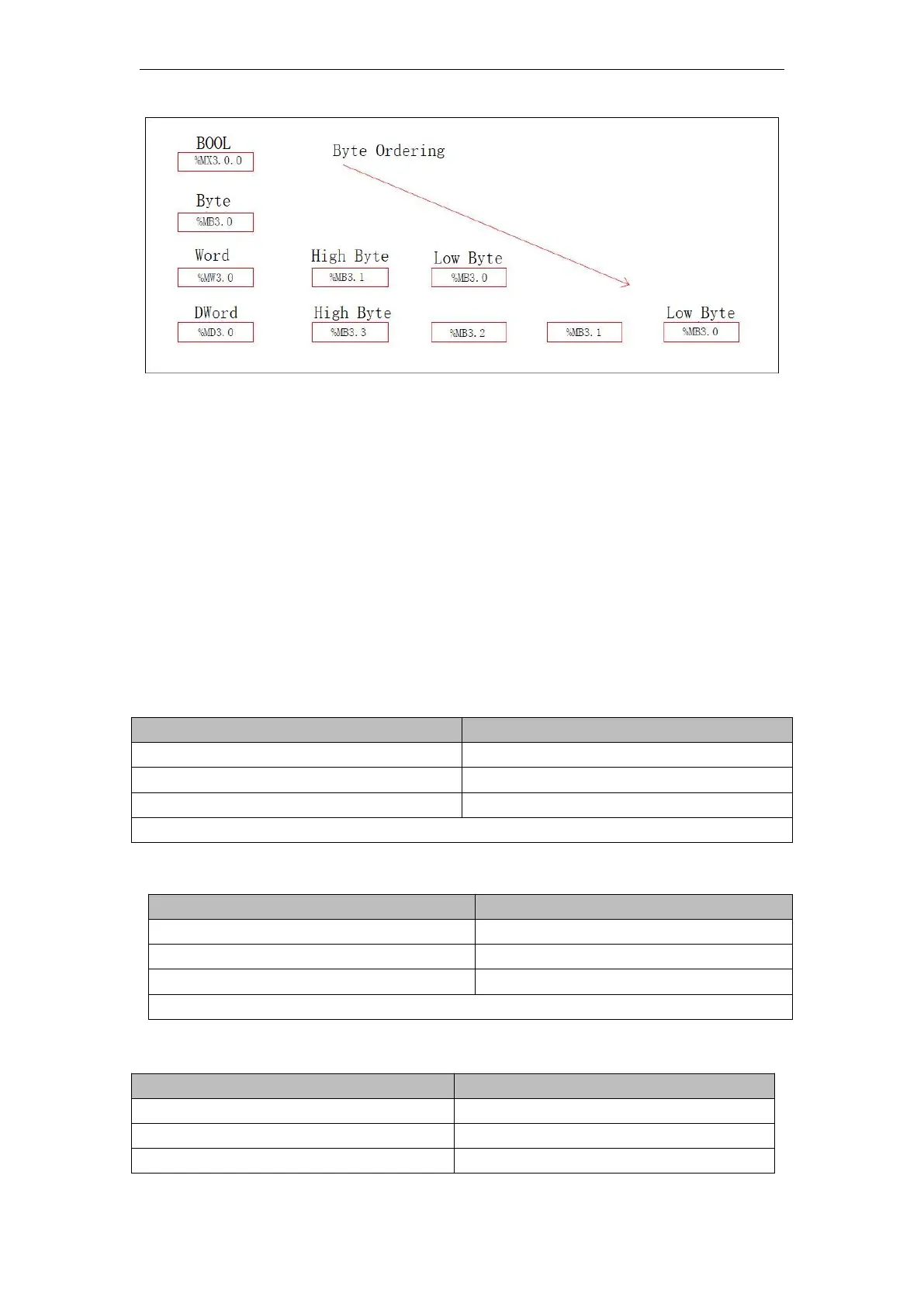

Such as: a hexadecimal number stored in 16% MW3.0 # 1234 in the presence of 16% MB3.0 #
34, the # 12 is stored in 16% MB3.1 in. If the procedure for bit operations, it will affect the place
where the byte, word and double-word and vice versa.
Examples of variable address
% IX1.3 denotes digital input bit map area 3 of a byte;
% QX0.0 digital output mapping area indicates the first byte 0 bit 0;
% MX3.0.0 represents the variable region of the intermediate byte 0 bit 0;
% MD3.4 represents the variable region of the intermediate 4 1 byte double word;
(3) motion controller and human machine address correspondence:
Motion controller address = (HMI address -1) * 2 (Wei-lun pass easily and Traditional HMI)
Bit operation:
PLC Address Type
HMI Address Type
% IX0.0
no
% QX0.0
no
% MX3.0.0
0X
Example: PLC address type %MX3.6.0 corresponds to HMI address :Type 0X Address 4
Byte operation:
Word operation:
PLC Address Type
HMI Address Type
% IB0.0
no
% QB0.0
no
% MB3.0.0
4 (3) X
Example: PLC address type %MB3.10 corresponds to HMI address : Type 4(3)X Address 6
PLC Address Type
HMI Address Type
% IW0.0
no
% QW0.0
no
% MW3.0.0
4 (3) X
