VA Motion Controller Programming Manual
56
power rail
001
anDA normally open contact
C000
. On the right is a coil
C001
and the right power
rail as shown.
4>

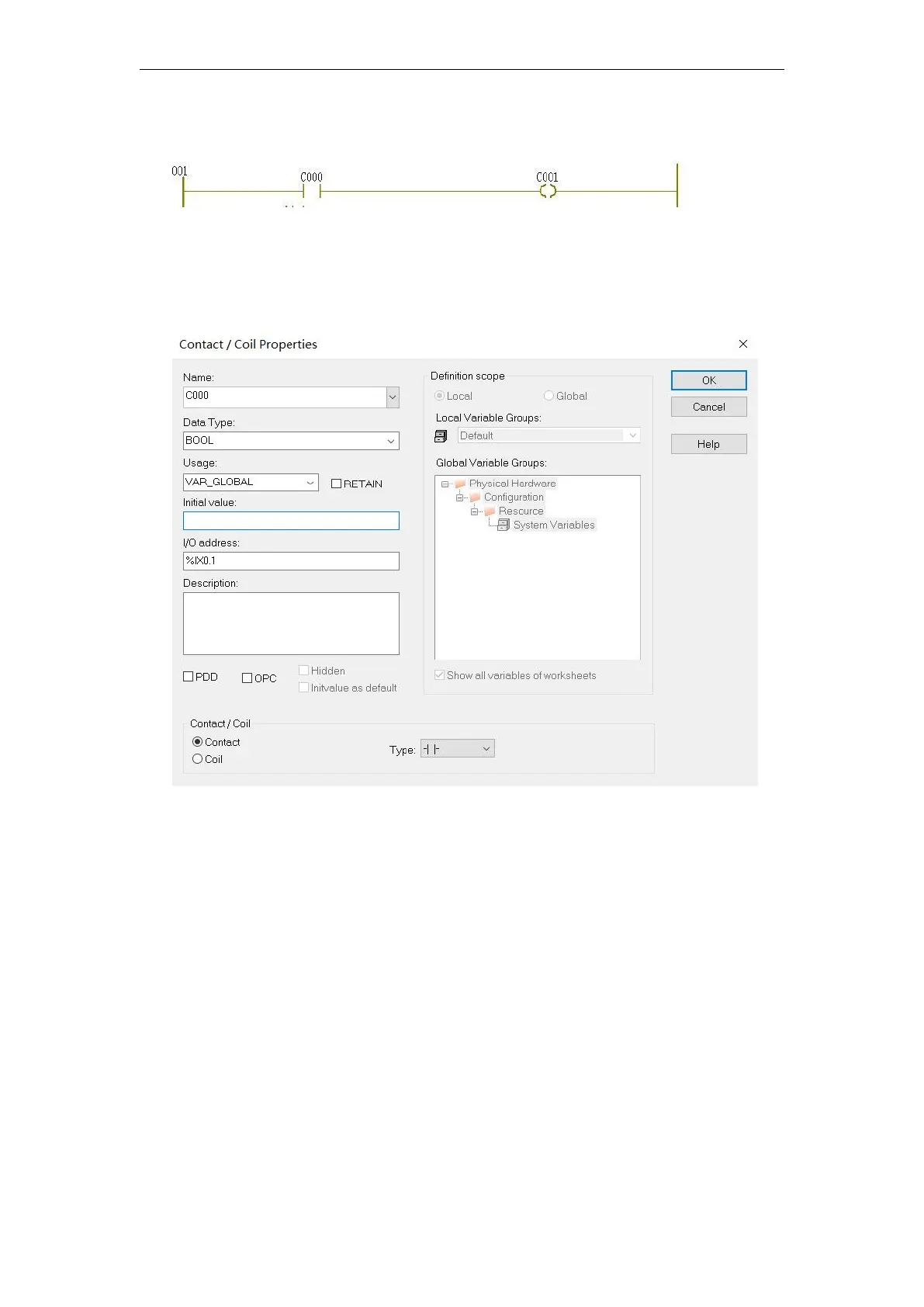

Double-click the normally open contacts
C000
, contact may
/
Coil Properties dialog box,
the
I / O
to the address field, enter
% IX0.0
, represents
PLC
of the machine ADigital input
channel, click " OK " , shown in FIG.
5>
double -click ladder coil
C001
, contact may
/
Coil Properties dialog box, the
I /
O
address field, enter
% QX0.0
, represents
PLC
a first digital output channels of the machine, click
" OK " as in FIG. FIG .
