12-6

IM 701210-06E

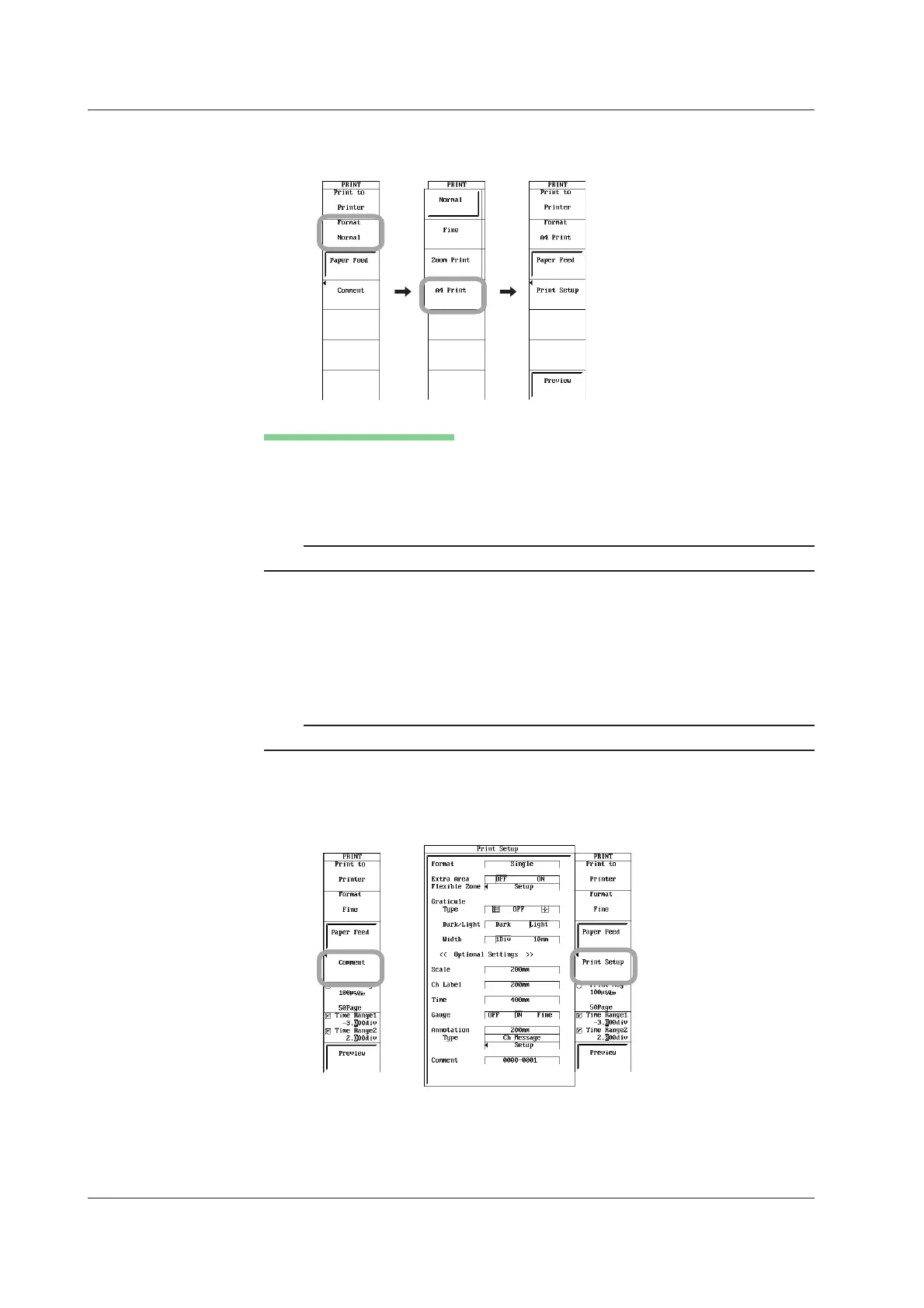

A4 Print (When Fine Is Selected in Step 5)

Proceed to step 10.

Specifying the Print Settings

•DL750

10. Press the Comment soft key.

11. Enter the comment text according to the procedure in section 4.2.

Proceed to step 27.

Note

The comment setting is linked with the PRINT menu > Comment setting.

• DL750P

10. Press the Print Setup soft key.

Setting the Print Format

11. Use the jog shuttle and SELECT to select Format from Single (1 division) to

Hexadecimal (16 divisions).

Note

The print format setting is linked with the DISPLAY menu > Format setting.

Setting the Extra Area

12. Use the jog shuttle and SELECT to set Extra Area to ON or OFF.

DL750 DL750P

12.2 Printing on the Built-in Printer
