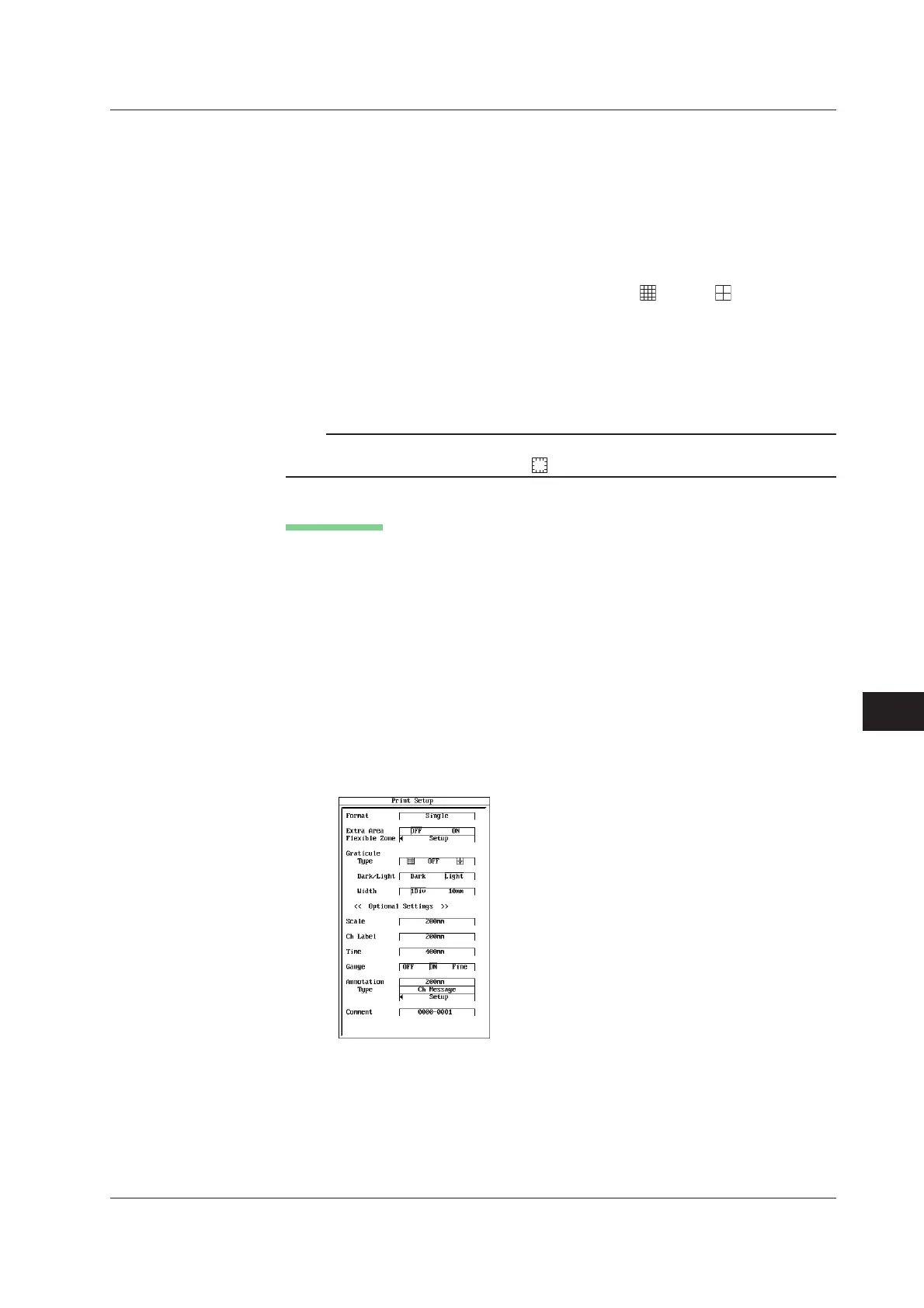

12-7
IM 701210-06E
Printing the Screen Image Data
12
Setting the Flexible Zone
13. Use the jog shuttle and SELECT to select Setup in Flexible Zone.
14. Use the jog shuttle and SELECT to set Mode to OFF or ON.
15. Use the jog shuttle and SELECT to set Upper/Lower of the waveform to be
recorded.
Setting the Graticule
• Setting the Grid
16. Use the jog shuttle and SELECT to set Type to
, OFF, or .
• Setting Dark/Light
17. Use the jog shuttle and SELECT to set Dark/Light to Light or Dark.
• Setting the Width of the Vertical Scale
18. Use the jog shuttle and SELECT to set Width to 1div or 10mm.
Proceed to step 19.
Note
The grid setting is linked with the DISPLAY menu > Graticule setting. However, if OFF is
selected, the DISPLAY menu is set to .
Setting Details
Setting the Print Interval of Scale Values
19. Use the jog shuttle and SELECT to set Scale to OFF, 200mm, 400mm, or
800mm.
Setting the Print Interval of Channel Labels
20. Use the jog shuttle and SELECT to set CH Label to OFF, 200mm, 400mm, or
800mm.
Setting Whether to Print the Time
21. Use the jog shuttle and SELECT to set Time to OFF, 200mm, 400mm, or
800mm.
Setting the Gauge Print
22. Use the jog shuttle and SELECT to set Gauge to OFF, ON, or Fine.
12.2 Printing on the Built-in Printer
To Next Page
