Setting the Annotation
23. Use the jog shuttle and SELECT to set the print interval of annotations in the
right column of Annotation to OFF, 200mm, 400mm, or 800mm.
24. Use the jog shuttle and SELECT to set the type of annotation to be printed in
the right column of Type to CH Information, CH Message, or CH Data.
If CH Message is selected, proceed to step 25.
If CH Information or CH Data is selected, proceed to step 26.
25. Use the jog shuttle and SELECT to select Setup. Then, enter the message
you wish to print for the channel using up to 80 characters according to the
procedure in section 4.2.
Setting a Comment
26. Use the jog shuttle and SELECT to select Comment. Then, enter the comment
text you wish to print using up to 20 characters according to the procedure in
section 4.2.
Note
The comment setting is linked with the PRINT menu > Comment setting.

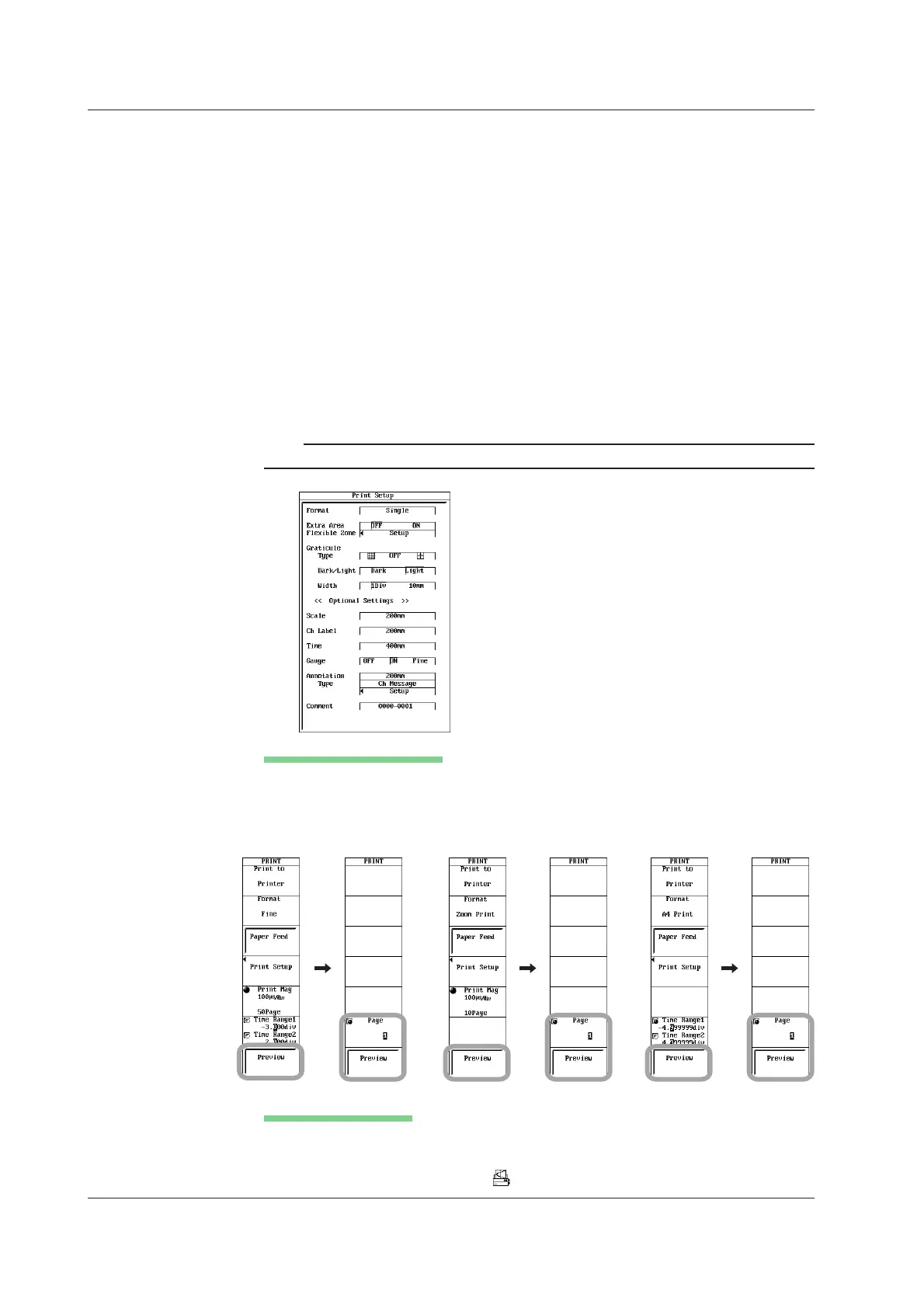

Previewing the Print Image
27. Press the Preview soft key. The print image is displayed on the screen.
Turn the jog shuttle to change the displayed page.
28. Press the Quit soft key. The original display appears.
Zoom Print A4 PrintFine Print
Executing the Printing
29. Press PRINT. The screen image data is printed on the built-in printer.
To abort printing, press PRINT while printing is in progress.
While printing is in progress,
is indicated in the upper left corner of the screen.
