YOKOGAWA DL750 User Manual

13-44
IM 701210-06E
MEASURE CURSOR RESET SELECT
CH
ALL CH
MODE POSITION
SIMPLE/ENHANCED
ACQ START/STOP
SETUP DISPLAY
ZOOM
DUAL
CAPTURE
HISTORY MATH
1
CH
2
CH
3
CH
4
CH
5
CH
6
CH
7
CH
8
CH
9
CH
10
CH
11
CH
12
CH
13
CH
14
CH
15
CH
16
DELAY
MANUAL TRIG
V/DIV TIME/DIV
TRIGGER
TRIG D
VERTICAL
HORIZONTAL
CAL X-Y
SEARCH
7
DSP 1
8 9
DSP 2
654
1
0
23
ENTER
m
DSP 6DSP 5
LOGIC A LOGIC B EVENT
DSP 3 DSP 4
EXP
GO/NO-GO
ACTION
FILE SHIFT

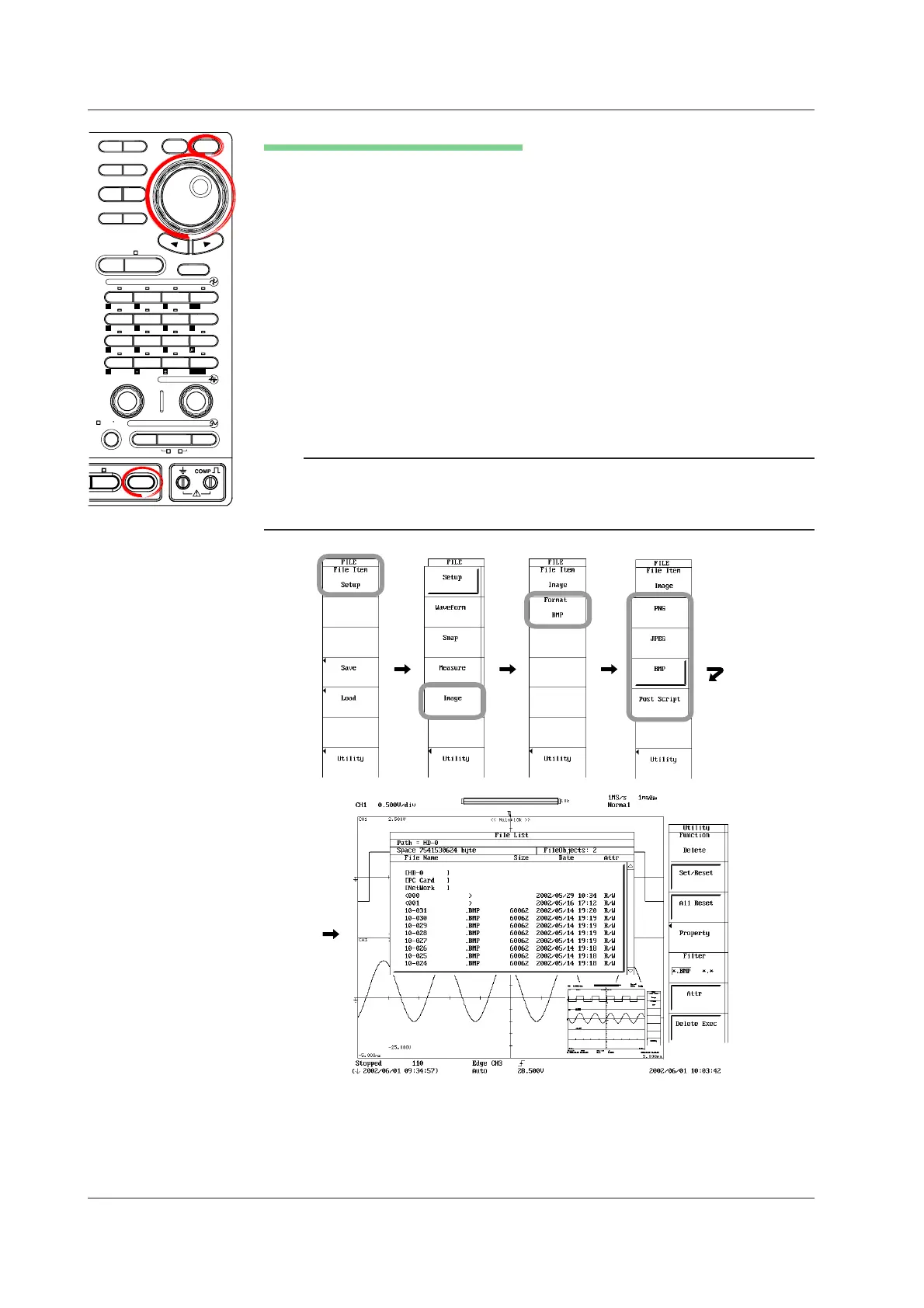

Thumbnail Display from the FILE Menu
1. Press FILE.
2. Press the File Item soft key.
3. Press the Image soft key.
4. Press the Format soft key.
5. Select the format you wish to display thumbnails from PNG to PostScript.
6. Press the Utility soft key. The File List window appears.
7. Turn the jog shuttle to select the screen image data file (file with .png, .jpg,
.bmp, and .ps extensions) on the File List window.
8. Press SELECT. The thumbnail of the selected screen image data file is
displayed at the lower right section of the File List window.
When screen image data that has voice comment data is selected, the voice
comment is played. For details on the voice comment function, see section
13.19.
To clear the thumbnail, turn the jog shuttle.
Note
• If the selected screen image data file does not have data (file) for thumbnail display, an
error message screen appears.
• You can press ESC to clear the thumbnail, but in this case, the File List window is also
cleared. To clear only the thumbnail display, turn the jog shuttle.
13.12 Displaying Thumbnails of the Saved Screen Image Data
