1. Activate the LL Manual Calibration menu with
the LL Manual Calibration key in the Manual
Test and Calibration menu.

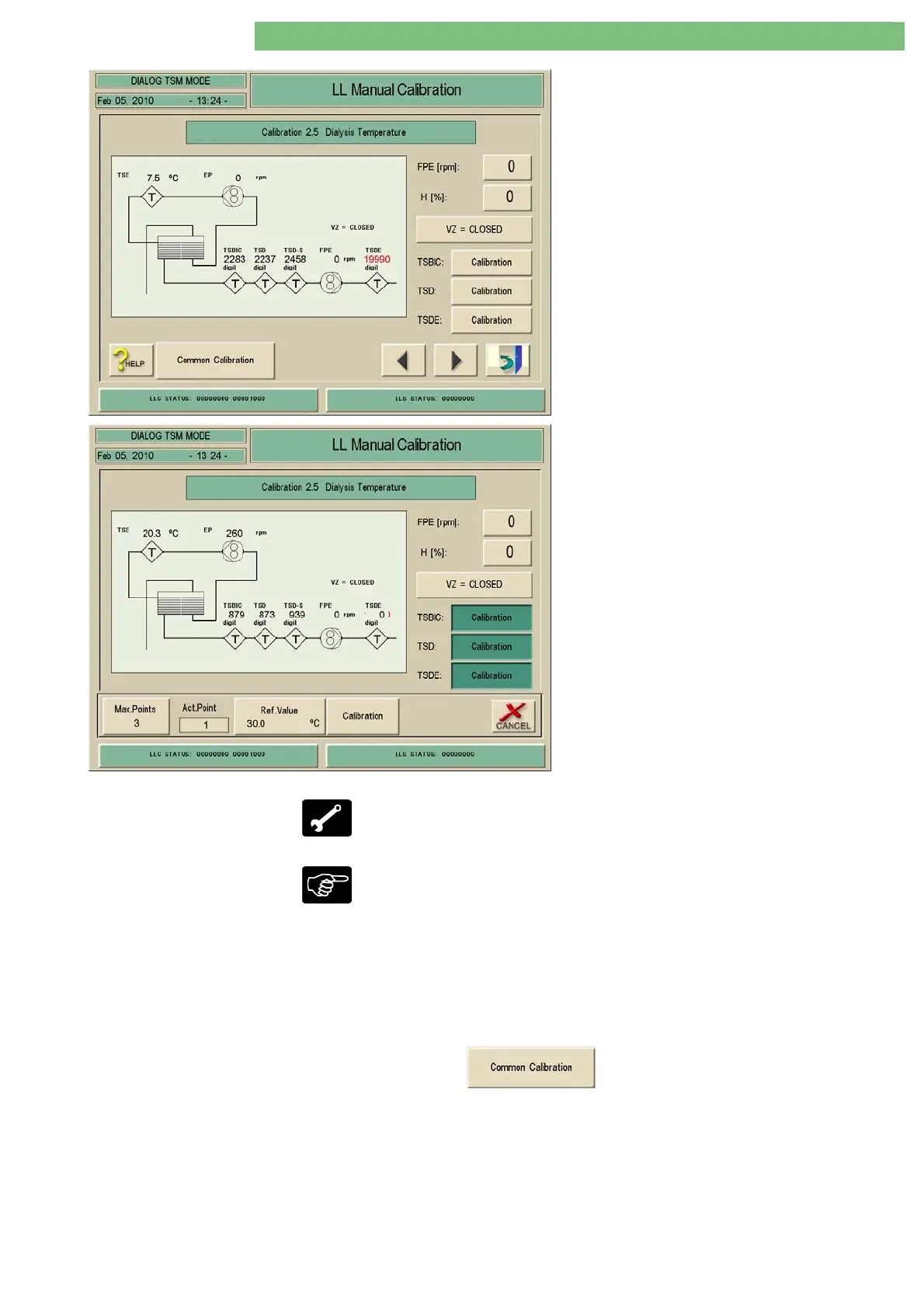

2. Activate the Dialysis Temperature menu by
pressing on the line Calibration 2.5 Dialysis
Temperature. The following menu is displayed.
• Measurement instrument (e.g. HDM 99 or equivalent)
• Adapter set (coupling, tubing, dialyser couplings)
3. Remove TSDE from rinsing bridge and connect at the outlet of FPE
(tubing going to FBK1).
Note: Pay attention to correct flow direction of temperature sensor TSDE.
4. Connect measurement instrument between TSDE and FBK1.
5. Connect dialyser couplings to flow meter.
6. Increase slowly the speed of FPE, until a flow of 750 ml/min ±50 ml/min
is reached.
7. Press
key for a combined calibration of TSBIC,
TSD/TSD-S and TSDE (The circulation valve VZ stays closed).
To Next Page
