3.5.2 EPS 708 test area
458846-0
2_
Ko
3
19
18
17
16
15
9
14
11
8
7
6
5
4
n
X27
B9
B10
Y8
Y7
Y6
1
2
13
12
10

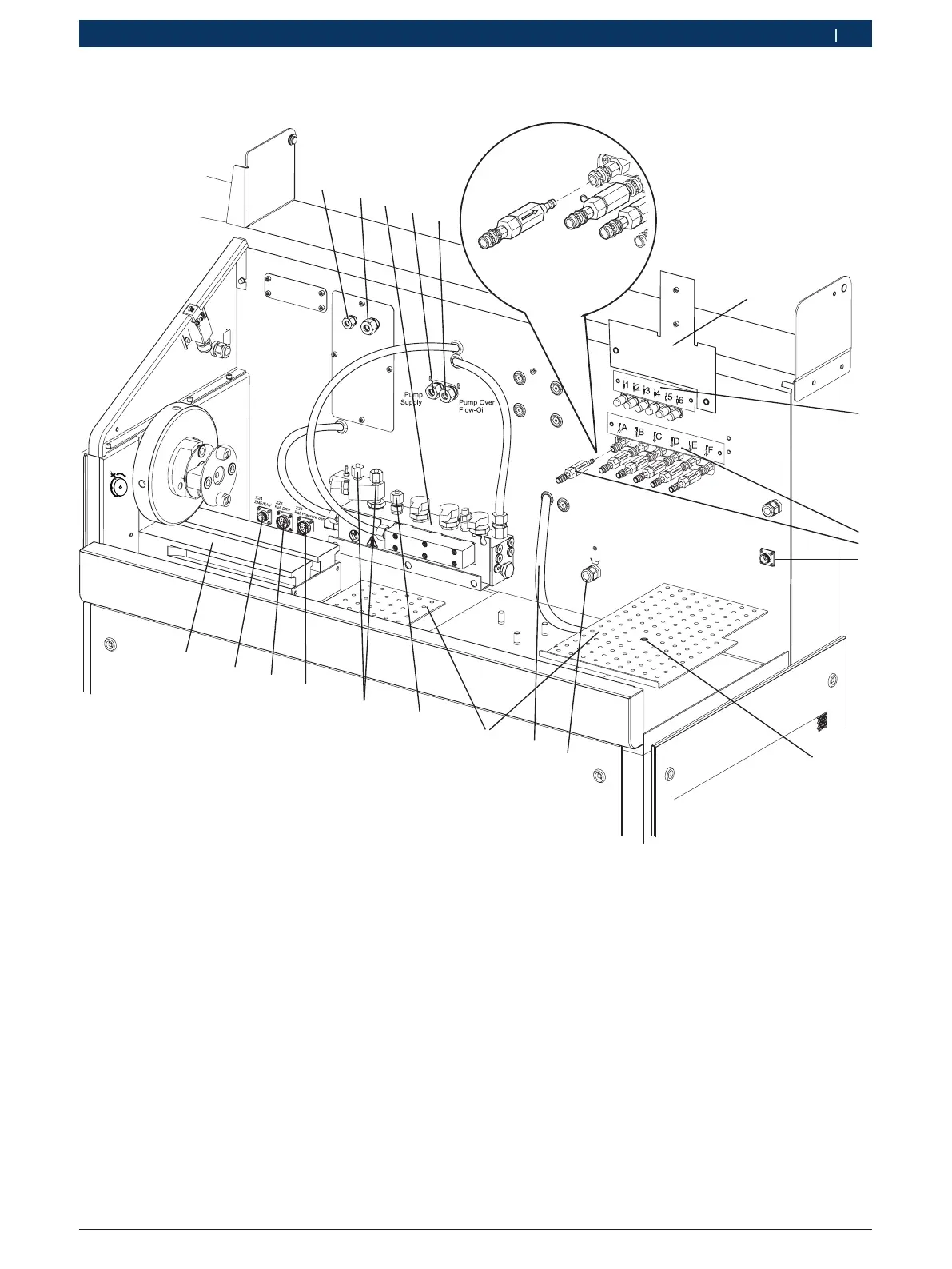

Fig. 2: Test area
1 Lubricating oil supply
1)
2 Lubricating oil return
1)
3 High-pressure rail (main rail)
4 Common rail pump calibrating oil supply
5 Common rail pump calibrating oil return
6 Retaining strip for CRI 800
7 CRI/CRI Piezo return quantity
8 CRI/CRI Piezo injected fuel quantity with inlet filters
9 CRI 800 connection CRI 800 (X27)
10 Mounting hole for return device, CRI Piezo
11 Return connection to test oil tank
12 Hose line (test oil return for CP3.4)
2)
13 Storage trays
14 High-pressure connection for CRI/CRI Piezo rail
15 High-pressure connections for common rail pump
16 High-pressure rail socket (X26 rail pressure sensor)
17 High-pressure rail socket (X25 rail DRV)
18 Socket for common rail pump actuation (X24 ZME/EAV)
19 Clamping rail
1)
Connections only available with integrated lubricating oil supply
(special accessory)
2)
Connection only for CP3.4 with the required return pressure
<10 kPa
