Dell PowerConnect 5324 - Add Host Name Mapping; Hosts Name Mapping Table

Configuring System Information 133

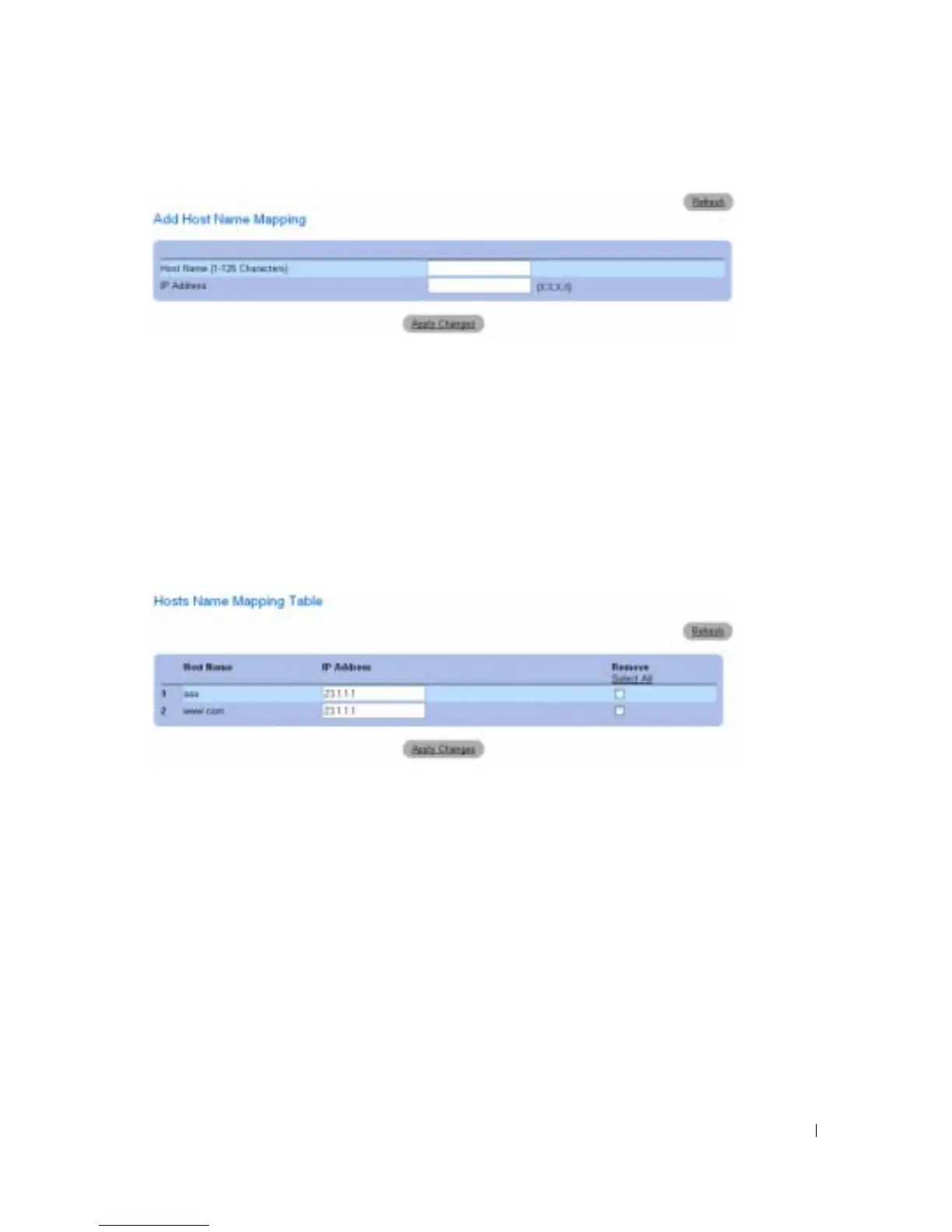

Figure 6-44. Add Host Name Mapping
3
Define the relevant fields.
4 Click Apply Changes .
The IP address is mapped to the Host Name, and the is updated.
Displaying the Hosts Name Mapping Table
1 Open the Host Name Mapping page .
2 Click Show All .
The
Hosts Name Mapping Table opens:
Figure 6-45. Hosts Name Mapping Table
Removing Host Name from IP Address Mapping
1 Open the Host Name Mapping page .
2 Click Show All
3 The Host Mapping Table opens.
4 Select a Host Mapping Table entry.
5 Check the Remove checkbox.
6 Click Apply Changes .
The
Host Mapping Table entry is deleted, and the is updated.
