Dell PowerConnect 5324 User Manual

Configuring System Information 135

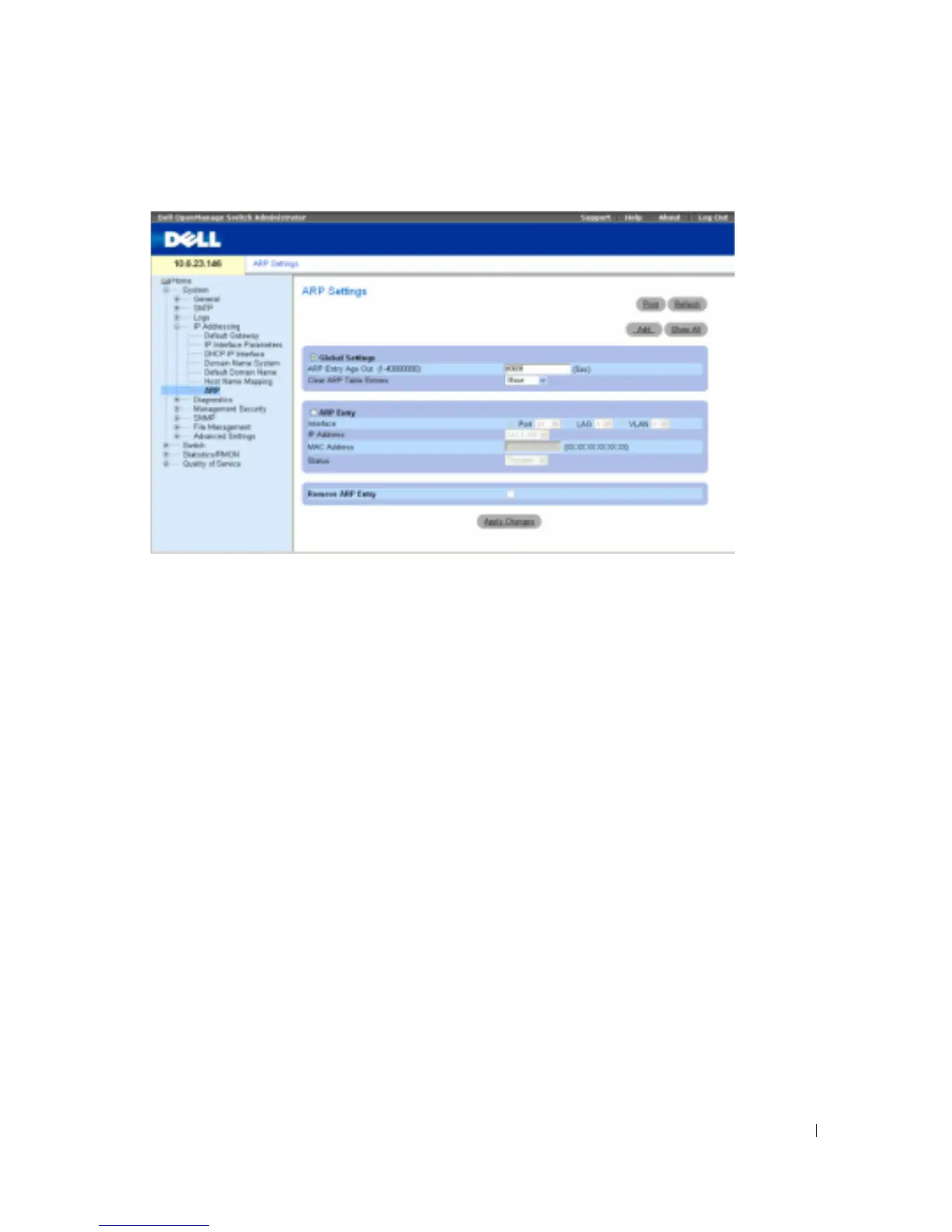

Figure 6-46. ARP Settings
Global Settings — Select this option to activate the fields for ARP global settings.
ARP Entry Age Out (1-40000000) — For all devices, the amount of time (seconds) that pass
between ARP requests about an ARP table
entry. After this period, the entry is deleted from the
table. The range is
1 - 4000000 , where zero indicates that entries are never cleared from the cache.
The default value is 60000 seconds.
Clear ARP Table Entries — The type of ARP entries that are cleared on all devices. The possible
values are:
None — ARP entries are not cleared.
All — All ARP entries are cleared.
Dynamic — Only dynamic ARP entries are cleared.
Static — Only static ARP entries are cleared.
ARP Entry — Select this option to activate the fields for ARP settings on a single device.
Interface — The interface number of the port, LAG, or VLAN that is connected to the device.
IP Address — The station IP address, which is associated with the MAC address filled in below.
MAC Address — The station MAC address, which is associated in the ARP table with the IP
address.
Status — The ARP Table entry status. Possible field values are:
Dynamic — The ARP entry is learned dynamically.
Static — The ARP entry is a static entry.

Dell PowerConnect 5324 Specifications

General

Switching Capacity	48 Gbps
VLAN Support	Yes
Rack Mountable	Yes
Device Type	Switch
MAC Address Table Size	8K entries
RAM	64 MB
Flash Memory	8 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Jumbo Frame Support	Yes
Ports	24 x 10/100/1000 + 2 x SFP
Management	Web-based, SNMP, CLI
Enclosure Type	Rack-mountable
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, 2, 3
Features	Flow control, auto-negotiation, port mirroring, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 °C to 45 °C
Storage Temperature	-20 °C to 70 °C
Humidity	5% to 95% (non-condensing)
Layer	Layer 2
