Dell PowerConnect 5324 User Manual

Configuring System Information 105

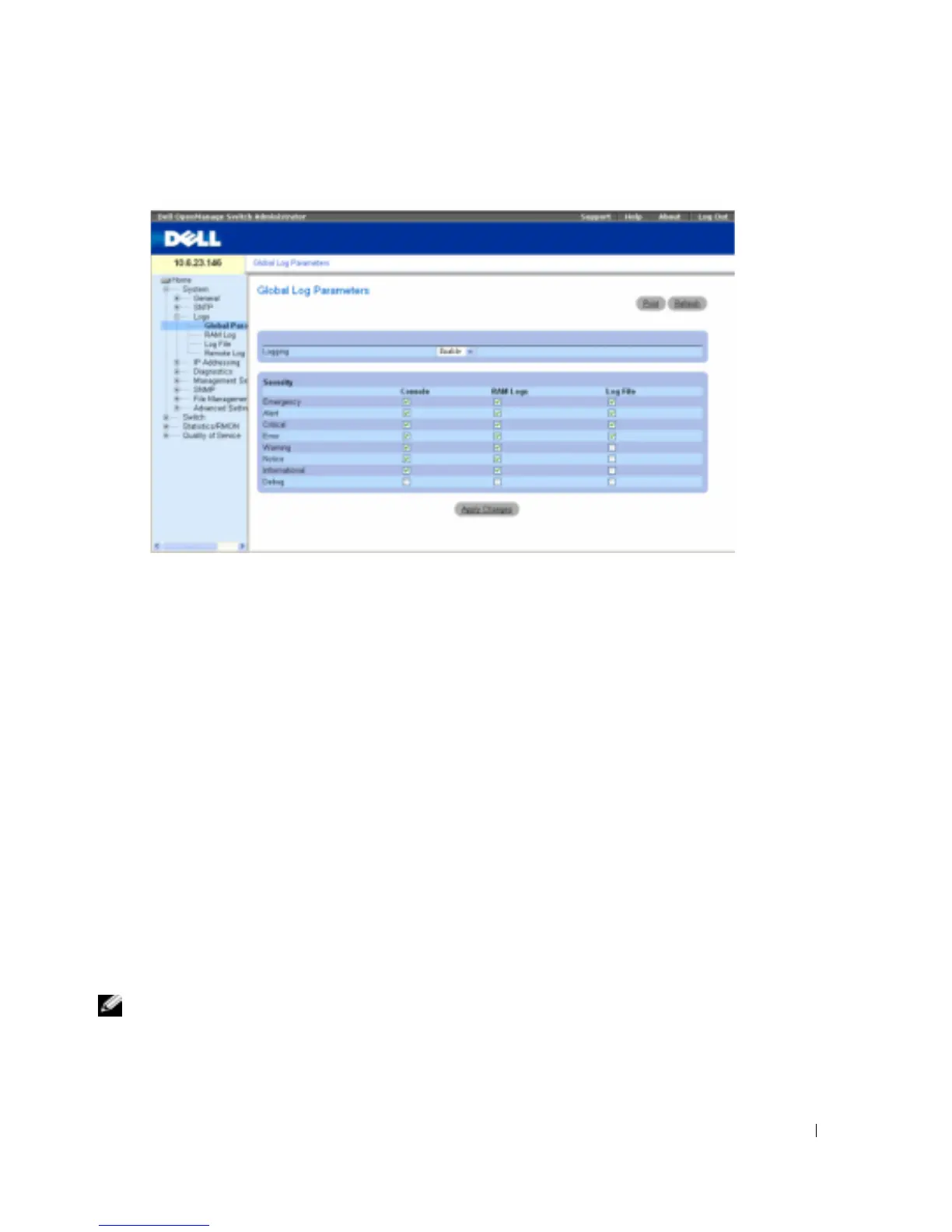

Figure 6-29. Global Log Parameters
Logging — Enables device global logs for Cache, File, and Server Logs. Console logs are enabled by
default.
Severity — The following are the available severity logs:
Emergency — The highest warning level. If the device is down or not functioning properly, an
emergency log message is saved to the specified logging location.
Alert — The second highest warning level. An alert log is saved if there is a serious device
malfunction, for example, all device features are down.
Critical — The third highest warning level. A critical log is saved if a critical device
malfunction occurs, for example, two device ports are not functioning, while the rest of the
device ports remain functional.
Error — A device error has occurred, for example, if a single port is offline.
Warning — The lowest level of a device warning. The device is functioning, but an
operational problem has occurred.
Notice — Provides device information.
Informational — Provides device information.
Debug — Provides debugging messages.
NOTE: When a severity level is selected, all severity level choices above the selection are selected
automatically.

Dell PowerConnect 5324 Specifications

General

Switching Capacity	48 Gbps
VLAN Support	Yes
Rack Mountable	Yes
Device Type	Switch
MAC Address Table Size	8K entries
RAM	64 MB
Flash Memory	8 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Jumbo Frame Support	Yes
Ports	24 x 10/100/1000 + 2 x SFP
Management	Web-based, SNMP, CLI
Enclosure Type	Rack-mountable
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, 2, 3
Features	Flow control, auto-negotiation, port mirroring, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 °C to 45 °C
Storage Temperature	-20 °C to 70 °C
Humidity	5% to 95% (non-condensing)
Layer	Layer 2
