Configuring Device Information 199
Configuring Port Based Authentication
The
Port Based Authentication
page
contains fields for configuring port based authentication. To
open the
Port Based Authentication
page, click
Switch
Network Security
Port Based
Authentication
.

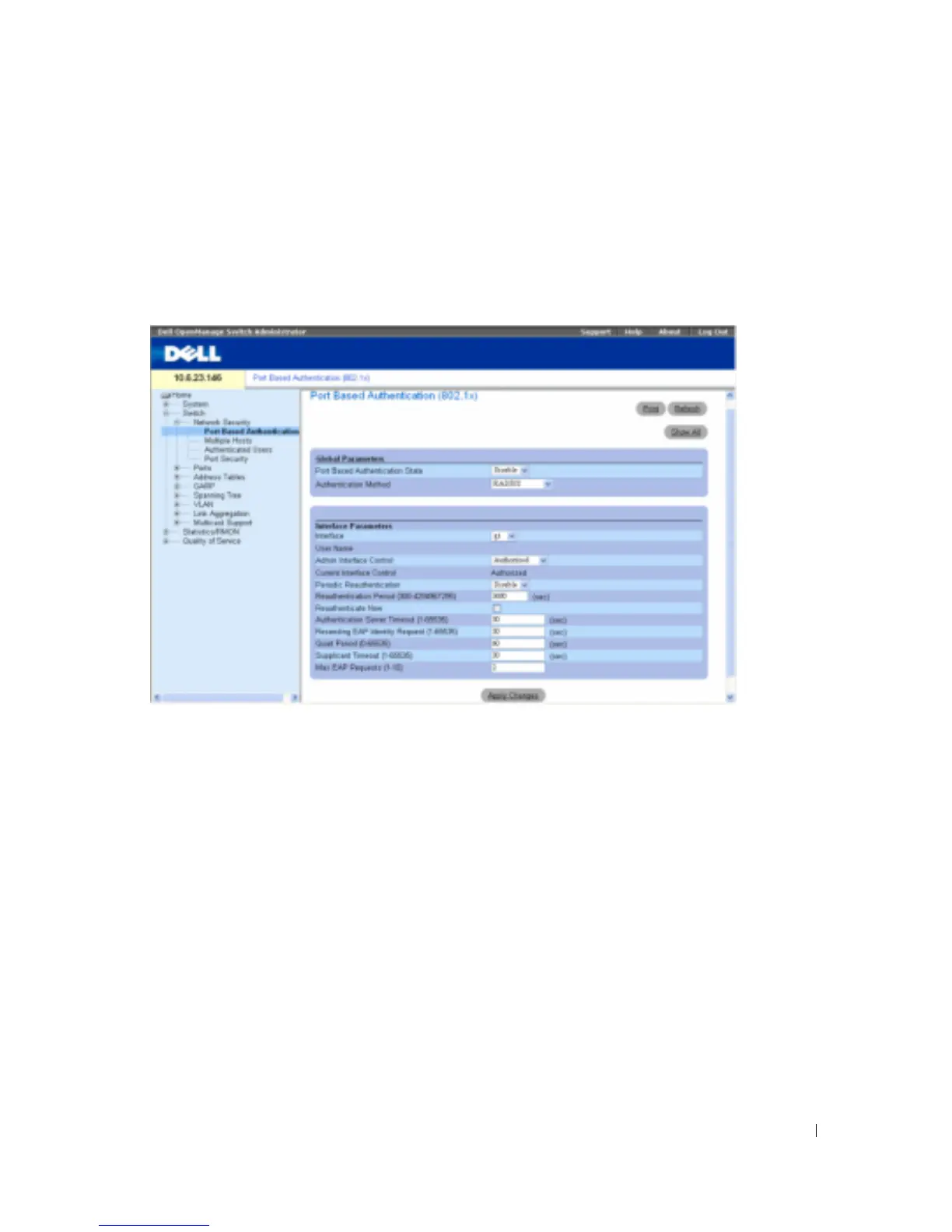

Figure 7-80. Port Based Authentication
Port Based Authentication State
— Permits port based authentication on the device. The possible
field values are:
Enable
— Enables port based authentication on the device.
Disable
— Disables port based authentication on the device.
Authentication Method
— The Authentication method used. The possible field values are:
None
— No authentication method is used to authenticate the port.
RADIUS
— Port authentication is performed using the RADIUS server.
RADIUS, None
— Port authentication is performed first using the RADIUS server. If the port
is not authenticated, then no authentication method is used, and the session is permitted.
Interface
— Contains an interface list.
User Name
— The user name as configured in the RADIUS server.
Admin Interface Control
— Defines the port authorization state. The possible field values are:
Authorized
— Set the interface state to authorized (permit traffic).
