Defining LAG Parameters
The LAG Configuration page contains fields for configuring parameters for configured LAGs. The
device supports up to eight ports per LAG, and eight LAGs per system.
For information about Link Aggregated Groups (LAG) and assigning ports to LAGs, refer to
Aggregating Ports .
To open the
LAG Configuration page, click Switch → Ports → LAG Configuration in the tree view.
NOTE: If port configuration is modified while the port is a LAG member, the configuration change is only
effective after the port is removed from the LAG.

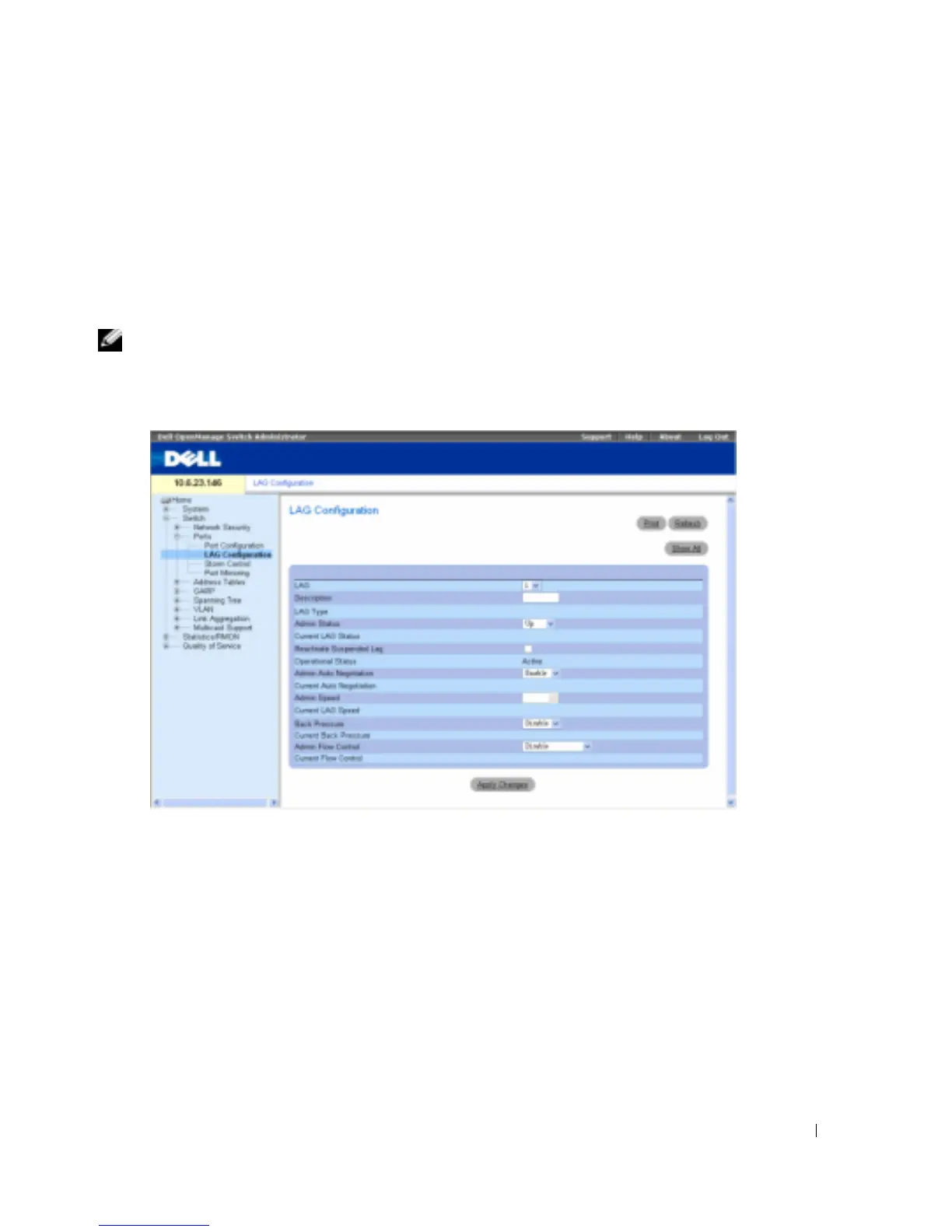

Figure 7-90. LAG Configuration
LAG — The LAG number.
Description (0-64 Characters) — Provides a user-defined description of the configured LAG.
LAG Type — The port types that comprise the LAG.
Admin Status — Enables or disables traffic forwarding through the selected LAG.
Current LAG Status — Indicates if the LAG is currently operating.
Re-Activate Suspended LAG — Reactivates a suspended LAG.
