Dell PowerConnect 5324 User Manual

282 Configuring Device Information
www.dell.com | support.dell.com
Adding Bridge Multicast Address Members
The Bridge Multicast Group page displays the ports and LAGs attached to the Multicast service
group in the
Ports and LAGs tables. The Port and LAG tables also reflect the manner in which the
port or LAGs joined the Multicast group. Ports can be added either to existing groups or to new
Multicast service groups. The
Bridge Multicast Group page permits new Multicast service groups
to be created. The
Bridge Multicast Group page also assigns ports to a specific Multicast service
address group.
To open the
Bridge Multicast Group page, click Switch → Multicast Support → Bridge Multicast
Address
in the tree view.

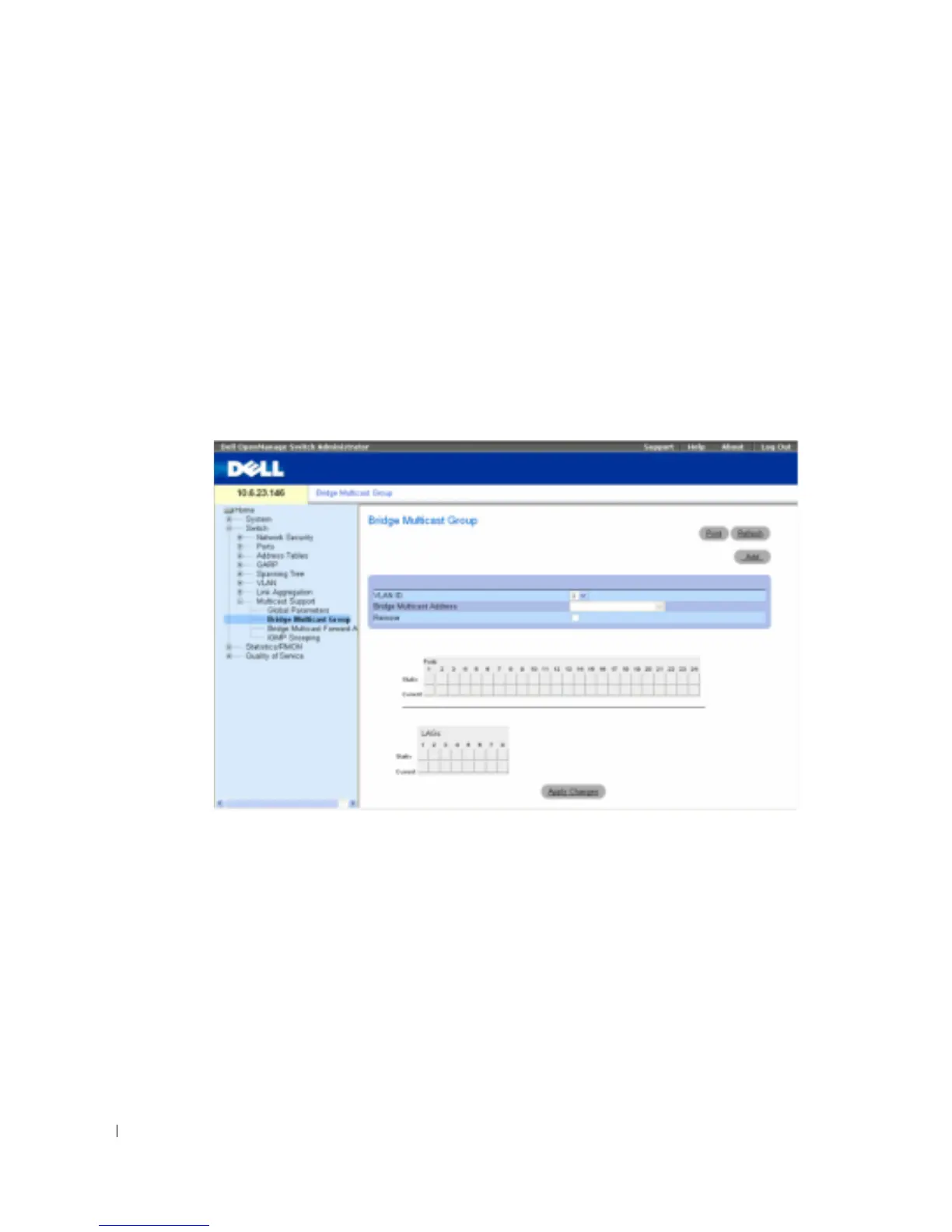

Figure 7-111. Bridge Multicast Group
VLAN ID — Identifies a VLAN and contains information about the Multicast group address.
Bridge Multicast Address — Identifies the Multicast group MAC address/IP address.
Remove — When selected, removes a Bridge Multicast address.
Ports — Port that can be added to a Multicast service.
LAGs — LAGs that can be added to a Multicast service.
The following table contains the IGMP port and LAG members management settings:

Dell PowerConnect 5324 Specifications

General

Switching Capacity	48 Gbps
VLAN Support	Yes
Rack Mountable	Yes
Device Type	Switch
MAC Address Table Size	8K entries
RAM	64 MB
Flash Memory	8 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Jumbo Frame Support	Yes
Ports	24 x 10/100/1000 + 2 x SFP
Management	Web-based, SNMP, CLI
Enclosure Type	Rack-mountable
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, 2, 3
Features	Flow control, auto-negotiation, port mirroring, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 °C to 45 °C
Storage Temperature	-20 °C to 70 °C
Humidity	5% to 95% (non-condensing)
Layer	Layer 2
