Dell PowerConnect 5324 User Manual

182 Configuring System Information
www.dell.com | support.dell.com
Defining Traps
From the SNMP Trap Settings page, the user can enable or disable the device to send SNMP traps
or notifications. To open the
SNMP Trap Settings page, click System → SNMP → Traps in the tree
view.

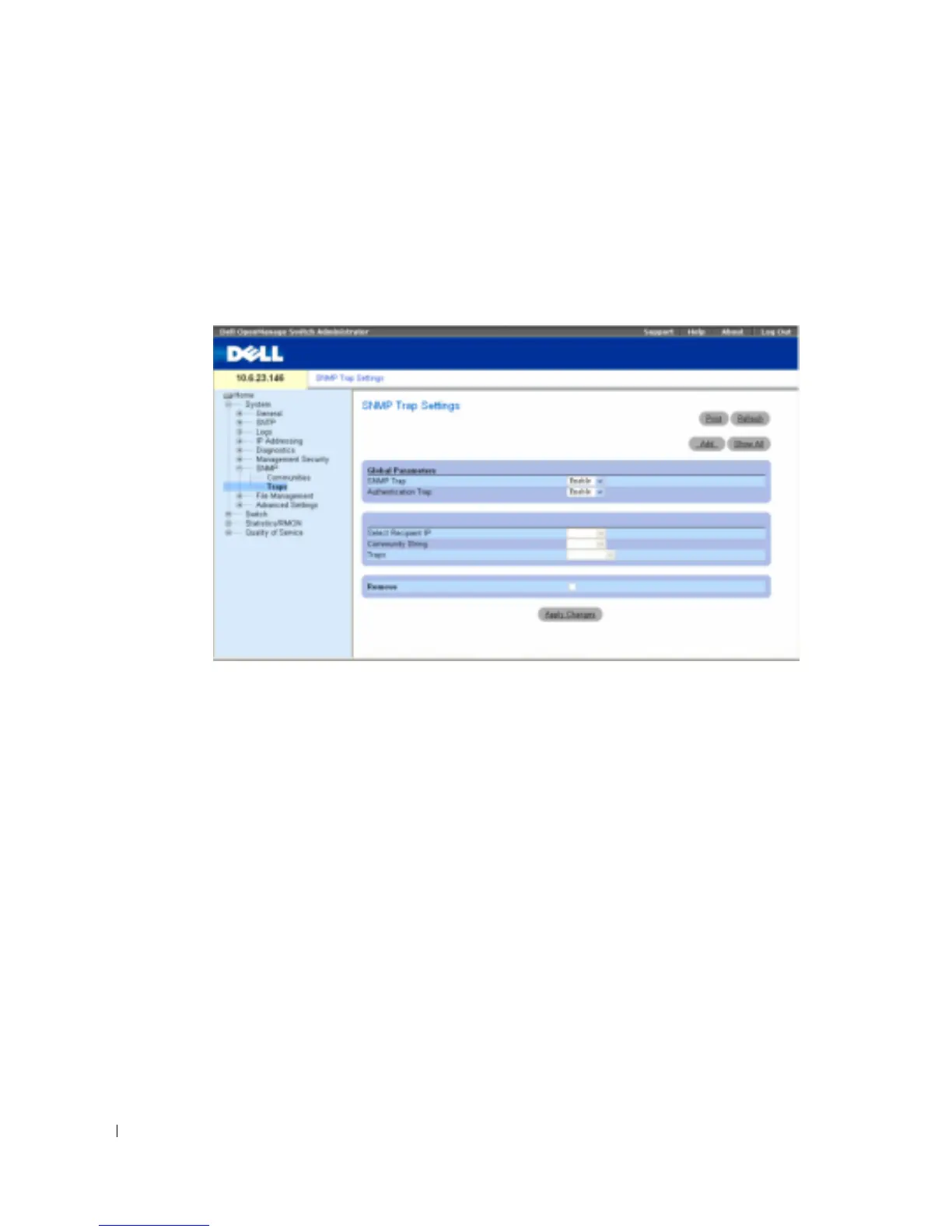

Figure 6-73. SNMP Trap Settings
SNMP Trap — Enables sending SNMP traps or SNMP notifications from the device to defined
trap recipients.
Authentication Trap — Enables sending SNMP traps when authentication failed to define
recipients.
Select Recipient IP — Specifies the IP address to whom the traps are sent.
Community String — Identifies the community string of the trap manager.
Traps — Determines the trap type sent to the selected recipient. The possible field values are:
SNMP V1 — SNMP Version 1 traps are sent
SNMP V2c — SNMP Version 2 traps are sent
Remove — Removes Trap Manager Table entries, when selected.
Enabling SNMP traps on the Device
1 Open SNMP Trap Settings page.
2 Select Enable in the SNMP Trap drop-down list.
3 Define the fields.
4 Click Apply Changes .

Dell PowerConnect 5324 Specifications

General

Switching Capacity	48 Gbps
VLAN Support	Yes
Rack Mountable	Yes
Device Type	Switch
MAC Address Table Size	8K entries
RAM	64 MB
Flash Memory	8 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Jumbo Frame Support	Yes
Ports	24 x 10/100/1000 + 2 x SFP
Management	Web-based, SNMP, CLI
Enclosure Type	Rack-mountable
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, 2, 3
Features	Flow control, auto-negotiation, port mirroring, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 °C to 45 °C
Storage Temperature	-20 °C to 70 °C
Humidity	5% to 95% (non-condensing)
Layer	Layer 2
