Configuring Device Information 223

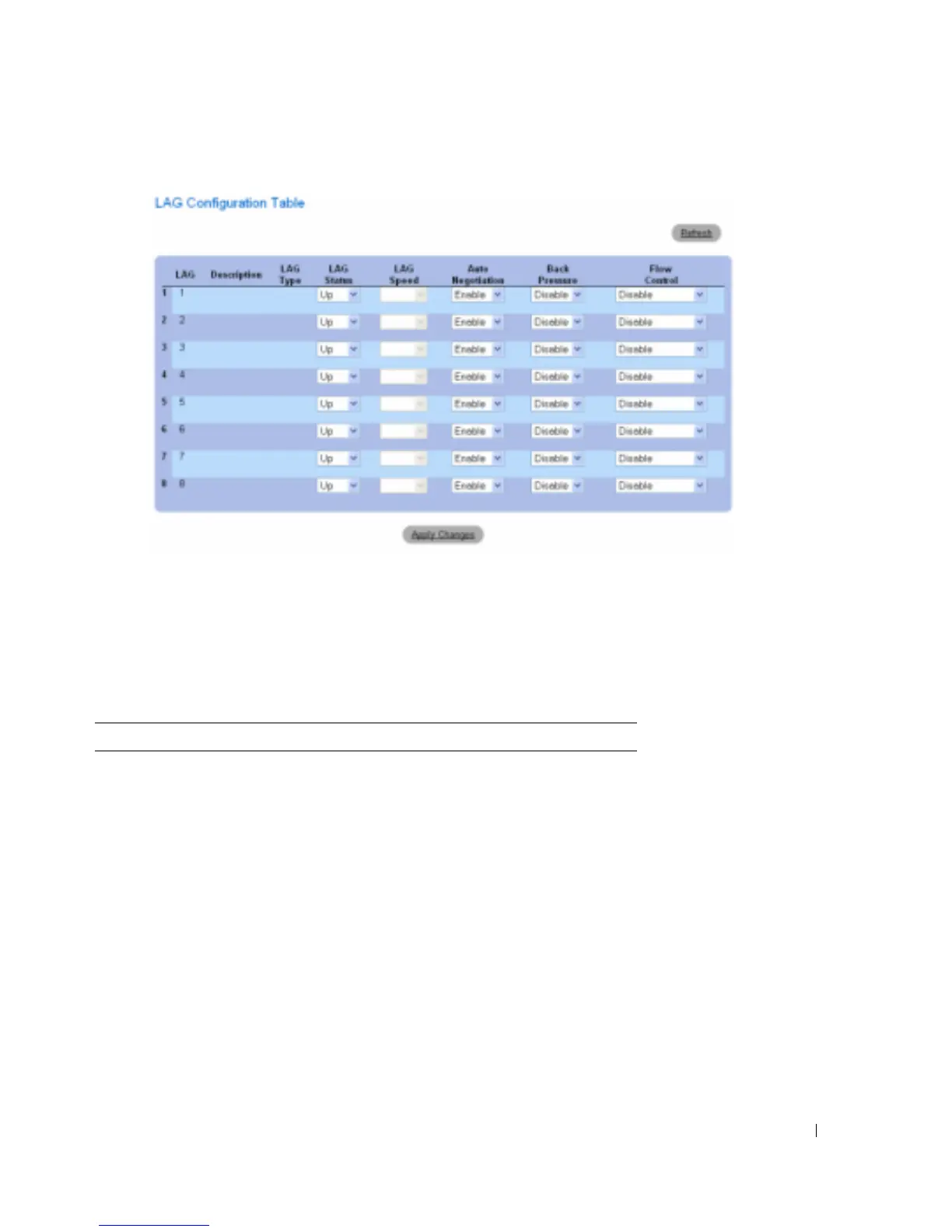

Figure 7-91. LAG Configuration Table
Configuring LAGs with CLI Commands
The following table summarizes the equivalent CLI commands for configuring LAGs as displayed
in the
LAG Configuration page.
Table 7-54. LAG Configuration CLI Commands
CLI Command Description
interface port-channel port-
channel-number
Enters the interface configuration mode of a
specific port-channel.
description string Adds a description to an interface
configuration.
shutdown Disables interfaces that are part of the
currently set context.
speed bps Configures the speed of a given ethernet
interface when not using auto negotiation.
autobaud Sets the line for automatic baud rate
detection .
negotiation Enables auto negotiation operation for the
speed and duplex parameters of a given
interface.
back-pressure Enables Back Pressure on a given interface

Dell PowerConnect 5324 Specifications

General

Switching Capacity	48 Gbps
VLAN Support	Yes
Rack Mountable	Yes
Device Type	Switch
MAC Address Table Size	8K entries
RAM	64 MB
Flash Memory	8 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Jumbo Frame Support	Yes
Ports	24 x 10/100/1000 + 2 x SFP
Management	Web-based, SNMP, CLI
Enclosure Type	Rack-mountable
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, 2, 3
Features	Flow control, auto-negotiation, port mirroring, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 °C to 45 °C
Storage Temperature	-20 °C to 70 °C
Humidity	5% to 95% (non-condensing)
Layer	Layer 2
