234 Configuring Device Information
www.dell.com | support.dell.com
Viewing Dynamic Addresses
The
Dynamic Address Table
contains fields for querying information in the
dynamic address table,
including the interface type, MAC addresses, VLAN, and table sorting. Packets forwarded to an
address stored in the address table are forwarded directly to those ports. The
Dynamic Address
Ta ble
also contains information about the aging time before a dynamic MAC address is erased, and
includes parameters for querying and viewing the Dynamic Address list. The
Current Address Table
contains dynamic address parameters by which packets are directly forwarded to the ports.
To open the
Dynamic Address Table
, click
Switch
→
Address Table
→
Dynamic Addresses Table
in
the tree view.

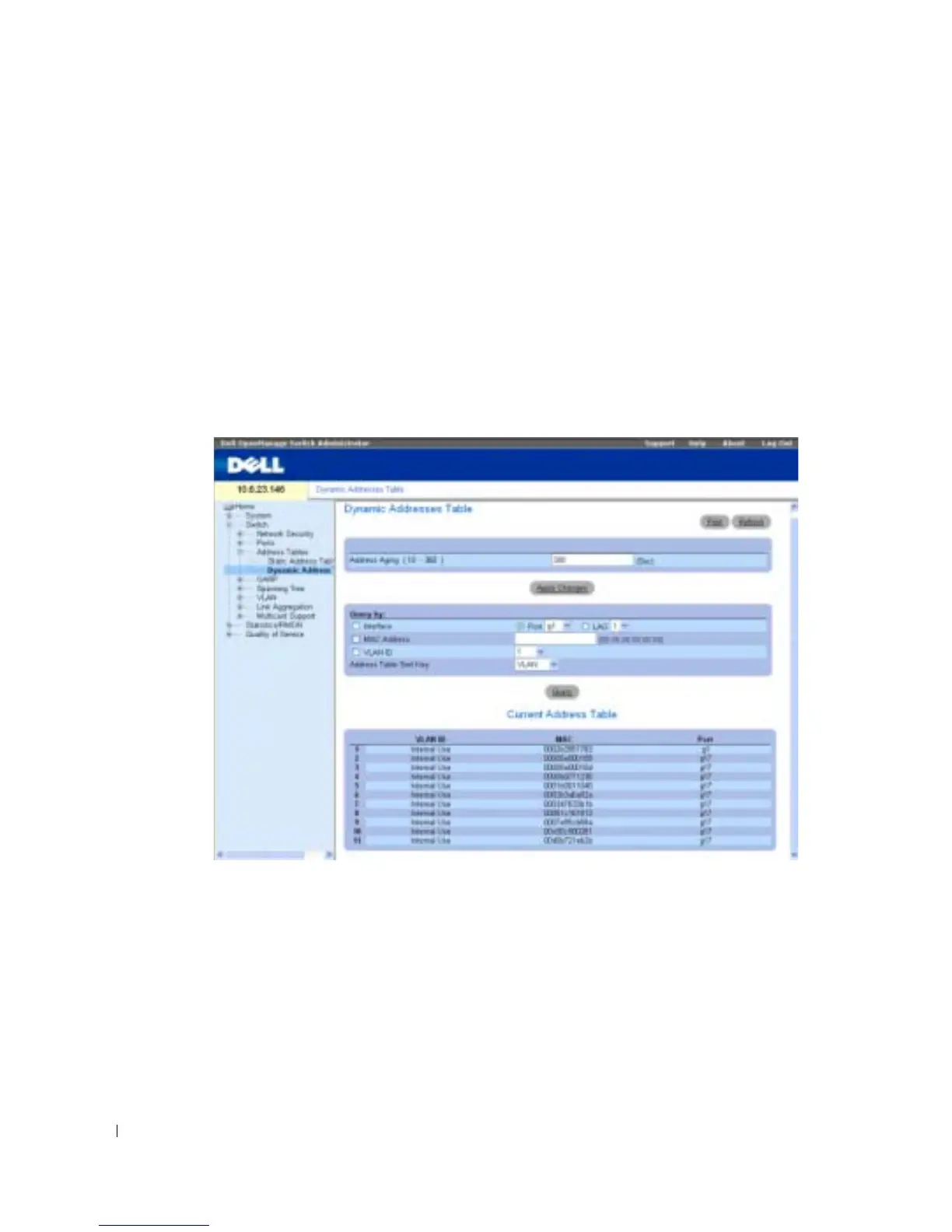

Figure 7-96. Dynamic Address Table
Address Aging (10-360)
— Specifies the amount of time the MAC Address remains in the
Dynamic Address Table
before it is timed out if no traffic from the source is detected. The default
value is 300 seconds.
Interface
— Specifies the interface for which the table is queried. There are two interface types
from which to select.
Port
— Specifies the port numbers for which the table is queried.
LAG
— Specifies the LAG for which the table is queried.
