278 Configuring Device Information
www.dell.com | support.dell.com
Defining LAG Membership
The
LAG Membership
page contains fields for assigning ports to LAGs. LAGs can include up to 8
ports.When a port is added to a LAG, the port acquires the LAG’s properties.
The
LAG Membership
page contains fields for assigning ports to LAGs. To open the
LAG
Membership
page, click
Switch
Link Aggregation
LAG Membership
in the tree view.

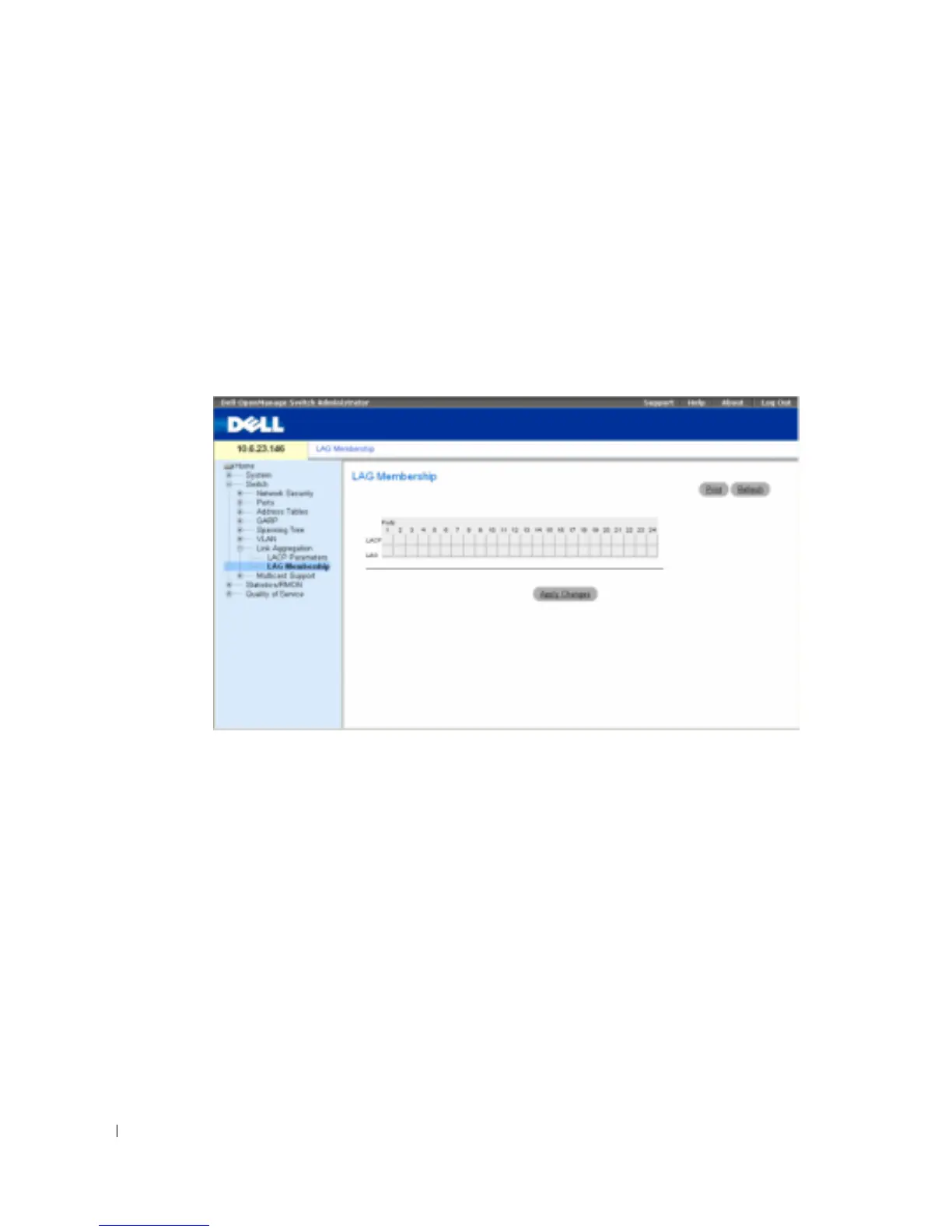

Figure 7-109. LAG Membership
LACP
— Aggregates the port to a LAG, using LACP.
LAG
— Adds a port to a LAG, and indicates the specific LAG to which the port belongs.
Configuring a Port to a LAG or LACP
1
Open the
LAG Membership
page.
2
In the LAG row (the second row), toggle the button to a specific number to aggregate or
remove the port to that LAG number.
3
In the LACP row (the first row), toggle the button under the port number to assign either the
LACP or the static LAG.
4
Click
Apply Changes
.
The port is added to the LAG or LACP, and the device is updated.
