Dell PowerConnect 5324 User Manual

Configuring System Information 171

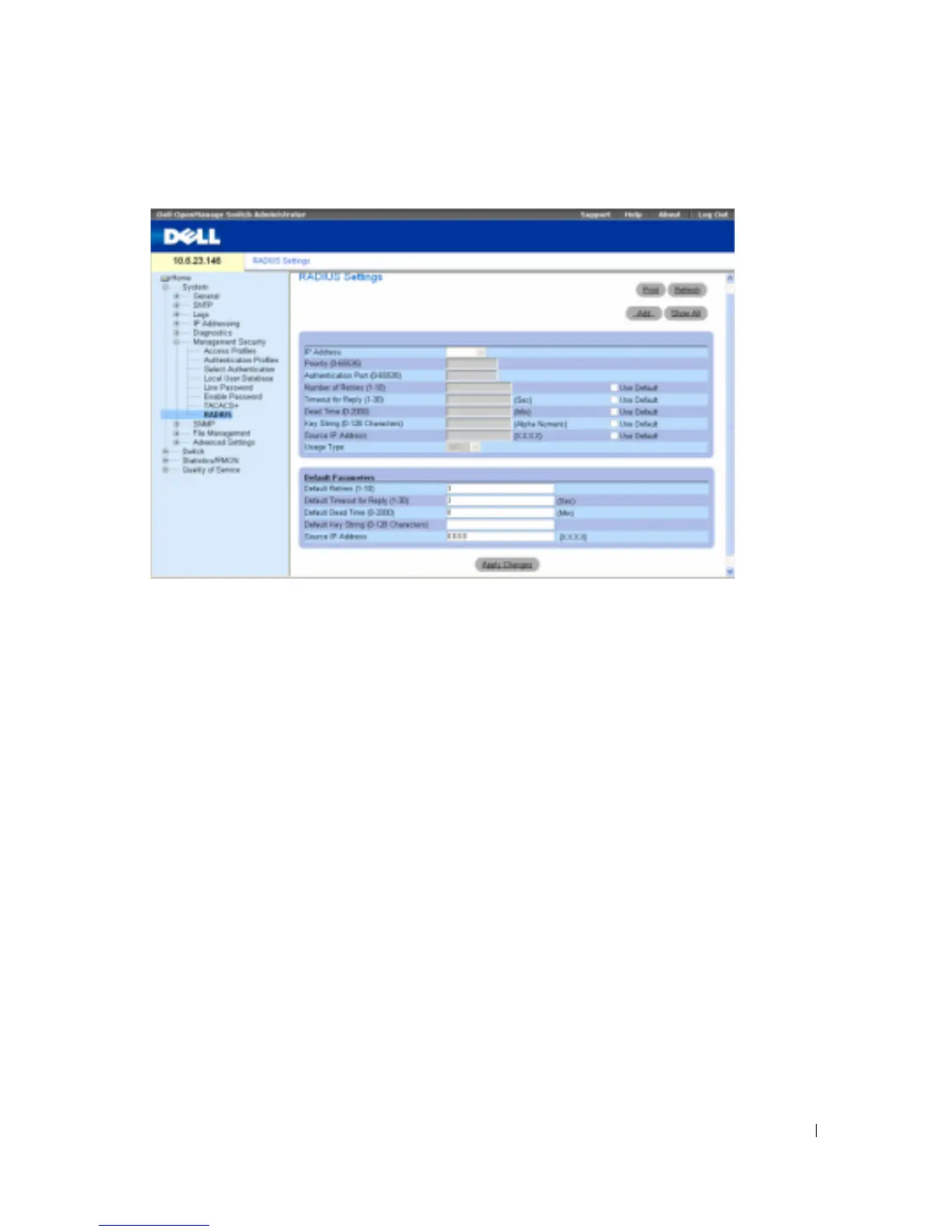

Figure 6-67. RADIUS Settings
IP Address — The list of Authentication Server IP addresses.
Priority (1-65535) — Specifies the server priority. The possible values are 1-65535, where 1 is the
highest value. This is used to configure the order in which servers are queried.
Authentication Port — Identifies the authentication port. The authentication port is used to verify
the RADIUS server authentication.
Number of Retries (1-10) — Specifies the number of transmitted requests sent to RADIUS server
before a failure occurs. The possible field values are 1 - 10. Three is the default value.
Timeout for Reply (1-30 ) — Specifies the amount of the time in seconds the device waits for an
answer from the RADIUS server before retrying the query, or switching to the next server. The
possible field values are 1 - 30. The default is 3.
Dead Time (0-2000) — Specifies the amount of time (in seconds) that a RADIUS server is
bypassed for service requests. The range is 0-2000.
Key String (1-128 Characters) — Specifies the Key string used for authenticating and encrypting
all RADIUS communications between the device and the RADIUS server. This key is encrypted.

Dell PowerConnect 5324 Specifications

General

Switching Capacity	48 Gbps
VLAN Support	Yes
Rack Mountable	Yes
Device Type	Switch
MAC Address Table Size	8K entries
RAM	64 MB
Flash Memory	8 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Jumbo Frame Support	Yes
Ports	24 x 10/100/1000 + 2 x SFP
Management	Web-based, SNMP, CLI
Enclosure Type	Rack-mountable
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, 2, 3
Features	Flow control, auto-negotiation, port mirroring, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 °C to 45 °C
Storage Temperature	-20 °C to 70 °C
Humidity	5% to 95% (non-condensing)
Layer	Layer 2
