Configuring Device Information 237
Configuring GARP
Generic Attribute Registration Protocol (GARP) is a general-purpose protocol that registers any
network connectivity or membership-style information. GARP defines a set of devices interested in
a given network attribute, such as VLAN or Multicast address.
When configuring GARP, ensure the following:
• The leave time must be greater than or equal to three times the join time.
• The leave all time must be greater than the leave time.
Set the same GARP timer values on all Layer 2-connected devices. If the GARP timers are set
differently on the Layer 2-connected devices, GARP application does not operate successfully.
To open the
GARP page, click Switch → GARP in the tree view.
Defining GARP Timers
The GARP Timers page contains fields for enabling GARP on the device. To open the GARP
Timers
page, click Switch → GARP → GARP Timers in the tree view.

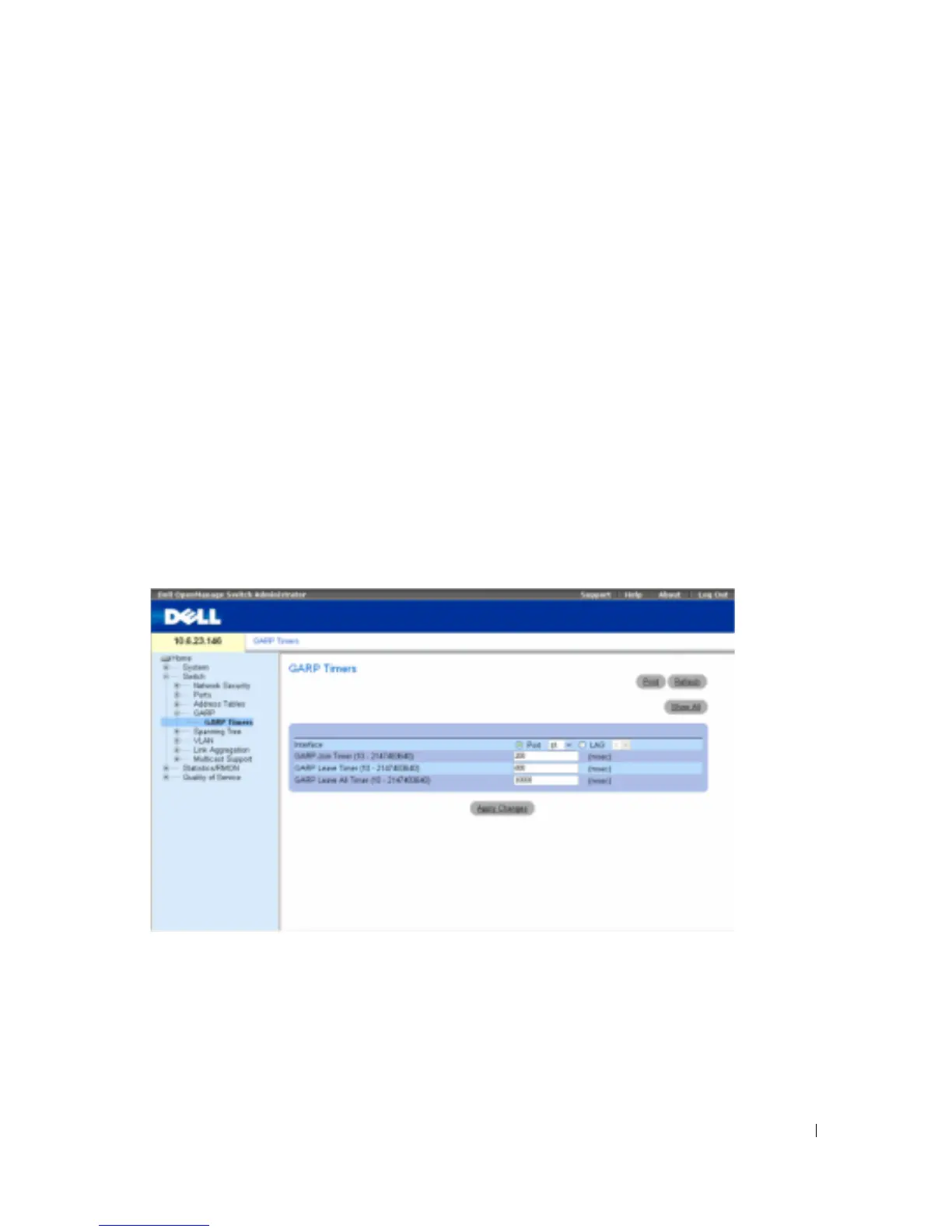

Figure 7-97. GARP Timers
Interface — Determines if enabled on a port or on a LAG.
GARP Join Timer (10 - 2147483640) — Time, in milliseconds, that PDUs are transmitted. The
possible field value is 10-2147483640. The default value is 200 msec.

Dell PowerConnect 5324 Specifications

General

Switching Capacity	48 Gbps
VLAN Support	Yes
Rack Mountable	Yes
Device Type	Switch
MAC Address Table Size	8K entries
RAM	64 MB
Flash Memory	8 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Jumbo Frame Support	Yes
Ports	24 x 10/100/1000 + 2 x SFP
Management	Web-based, SNMP, CLI
Enclosure Type	Rack-mountable
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, 2, 3
Features	Flow control, auto-negotiation, port mirroring, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 °C to 45 °C
Storage Temperature	-20 °C to 70 °C
Humidity	5% to 95% (non-condensing)
Layer	Layer 2
