Dell PowerConnect 5324 User Manual

Configuring Device Information 275
Each Aggregated Link has an Aggregated Link Port Type, including Gigabit Ethernet ports. Ports
can be added to an Aggregated Link only if they are the same port type. When ports are removed
from an Aggregated Links, the ports revert to the original port settings. To open the
Link
Aggregation
page, click Switch → Link Aggregation in the tree view.
Defining LACP Parameters
The LACP Parameters page contains fields for configuring LACP LAGs. Aggregate ports can be
linked into link-aggregation port-groups. Each group is comprised of ports with the same speed.
Aggregated Links can be manually setup or automatically established by enabling Link Aggregation
Control Protocol (LACP) on the relevant links. To open the
LACP Parameters page, click Switch →
Link Aggregation
→ LACP Parameters in the tree view.

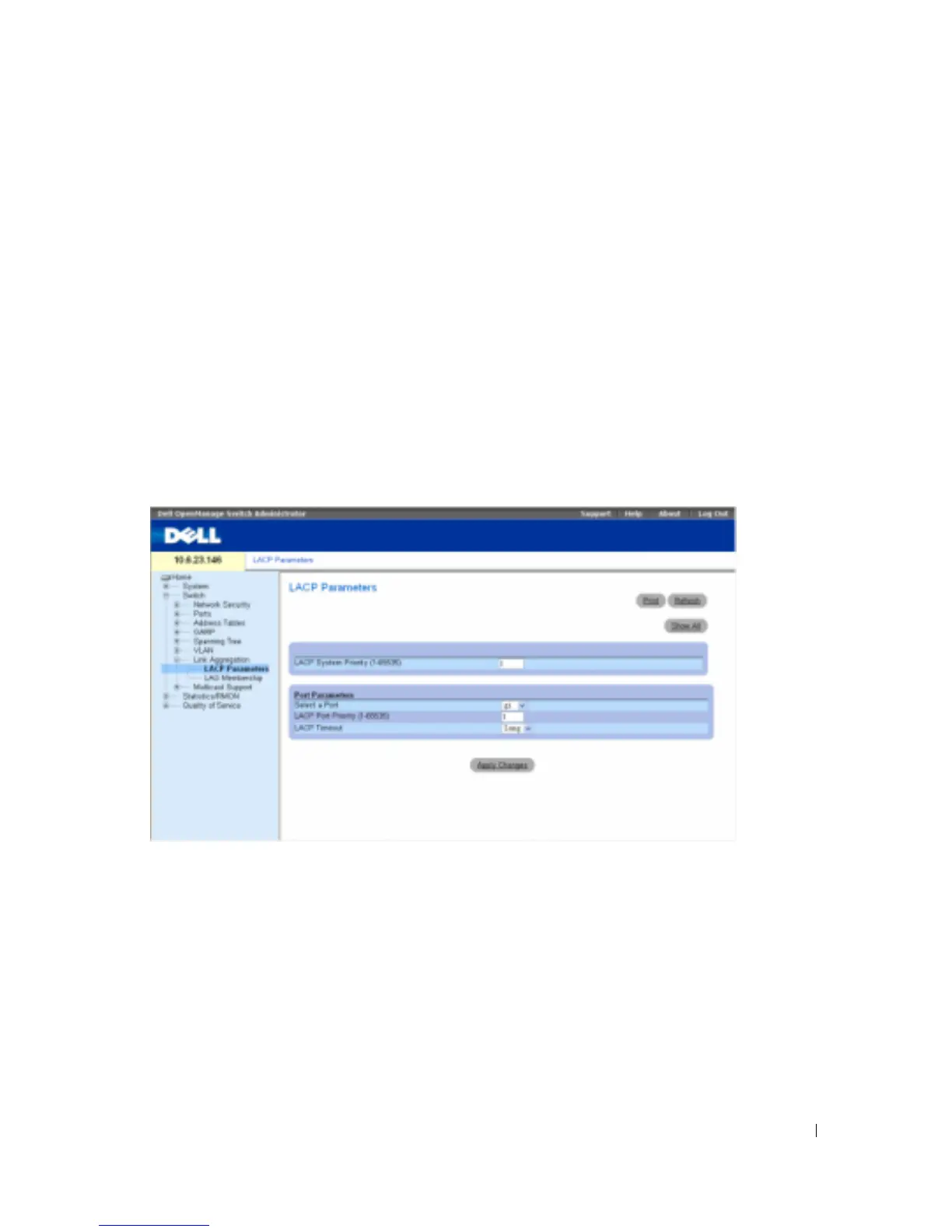

Figure 7-108. LACP Parameters
LACP System Priority (1-65535) — The LACP priority value for global settings. The possible
range is 1- 65535. The default value is 1.
Select a Port — The port number to which timeout and priority values are assigned.
LACP Port Priority (1-65535) — LACP priority value for the port.
LACP Timeout — Administrative LACP timeout. The possible field values are:
Short — Specifies a short timeout value.
Long — Specifies a long timeout value.

Dell PowerConnect 5324 Specifications

General

Switching Capacity	48 Gbps
VLAN Support	Yes
Rack Mountable	Yes
Device Type	Switch
MAC Address Table Size	8K entries
RAM	64 MB
Flash Memory	8 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Jumbo Frame Support	Yes
Ports	24 x 10/100/1000 + 2 x SFP
Management	Web-based, SNMP, CLI
Enclosure Type	Rack-mountable
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, 2, 3
Features	Flow control, auto-negotiation, port mirroring, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 °C to 45 °C
Storage Temperature	-20 °C to 70 °C
Humidity	5% to 95% (non-condensing)
Layer	Layer 2
